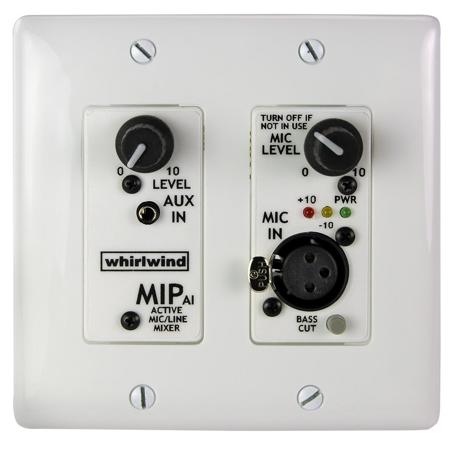

Whirlwind MIPAID 2 Gang Media Input Active Wall Plate without Power Supply, White

SKU: WWMIPAID MFR: MIPAID
Earn VIP Reward Points

Key Features

  • Integrate audio seamlessly with this 2 Gang Media Input Wall Plate, a pro-audio essential.
  • Achieve optimal audio clarity thanks to a mic preamp with up to 60dB maximum gain.
  • Enjoy versatile connectivity; this active wall plate supports both mic and aux inputs.
  • Ensure pristine sound quality; frequency response is -0.8dB from 20Hz to 20kHz.
  • Rely on robust performance with a maximum output level of +23dBV for strong signals.
  • Customize your setup; this wall plate requires a 24VDC power supply (sold separately).
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$22.99

2 Year

$38.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Whirlwind MIPAID Specifications

  • Mic Input

    60dB maximum gain

  • Frequency Response at 60dB Gain

    -0.8dB at 20 to -1.7 at 20kHz

  • Equivalent Input Noise Mic Preamp

    117dB

  • Max Input Level at 40dB Gain

    -17dBV

  • Max Input Level at 60dB Gain

    -37dBV

  • Bass Cut Filter

    120Hz 24dB/octave

  • Aux Input

    26dB maximum gain

  • Frequency Response at 20dB Gain

    -0.8 dB 20 to 20kHz

  • Max Input at 0dB Gain

    +17dBV

  • Maximum Output Level

    +23dBV

  • Power Requirement

    24VDC 200mA
    53mA per plate maximum Whirlwind #PS242.1 when included

About Whirlwind MIPAID

Make your audio installations seamless and professional with the Whirlwind MIPAID 2 Gang Media Input Active Wall Plate. This sophisticated device is engineered to effortlessly blend line and microphone input sources into a pristine line-level balanced output. Ideal for environments such as gymnasiums, banquet halls, and conference centers, the MIPAID wall plate ensures local volume control is always at your fingertips for source material.

Crafted for versatility, the MIPAID comes in a sleek two-gang white decor insert, adding a touch of elegance to any setting. Each unit operates as an independent two-channel mixer, featuring a balanced mic level input through a 3-pin female XLR and a stereo auxiliary input via a 3.5mm TRS unbalanced jack, which is intelligently summed to mono. Separate level controls for each input allow for precise sound customization, providing ample gain to drive even the most powerful amplifiers to their full potential.

To enhance audio clarity, the MIPAID includes a bass cut switch on the microphone input to minimize rumble and handling noise, ensuring your audio remains crisp and clear. The rear panel hosts additional line input screw terminals, facilitating the connection of multiple MIPAID plates in a daisy-chain configuration. This allows for the summing of inputs across three plates, with six level controls to manage the inputs, maintaining a maximum output drive level of +22dB.

When utilizing multiple MIPAID plates simultaneously, it's crucial to monitor the total summed output level to prevent sum bus clipping. The unit's dual LED indicators provide visual feedback for signal levels at -10dB and +10dB, allowing for easy monitoring of audio levels. The last MIPAID in the chain will display the signal level on its LEDs, even without an active input to that specific plate.

For added convenience, all connected MIPAID plates can be powered from a single power supply located in the equipment rack, eliminating the need for multiple power sources. The Whirlwind MIPAO or MIPAT output termination boxes can be used for a seamless connection to processing electronics. The audio output is accessible via a 3-pin male XLR or screw terminals, while a 2.1mm power input jack provides a pass-through for wall power supply to the MIPAID screw terminal connections.

Installation is made easy with a recommended electrical backbox depth of 2.5 inches for gangable box types and 2.125 inches for utility box types. The output connections on the rear circuit board are 8 position, 3.5mm screw type, removable plugs, compatible with Phoenix 1984073 or equivalent. The rear panel line input comes with a shorting jumper termination, which can be removed to connect additional MIPAID plates.

The Whirlwind MIPAID 2 Gang Media Input Active Wall Plate is the perfect integration of functionality and style for any professional audio setup, ensuring that your installations are not only efficient but also aesthetically pleasing.

Whirlwind MIPAID Features

  • High-quality 2 Gang Media Input Active Wall Plate for professional audio installations
  • Features dual input mixer plates for seamless blending of line and microphone input sources
  • Comes with separate level controls for each input and a bass cut switch for optimal audio clarity
  • Allows daisy-chain configuration with multiple MIPAID plates for enhanced audio control
  • Equipped with dual LED indicators for easy monitoring of signal levels
  • Sleek white decor insert design, perfect for any professional or home setting

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Integrate audio seamlessly with this 2 Gang Media Input Wall Plate, a pro-audio essential.
  • Achieve optimal audio clarity thanks to a mic preamp with up to 60dB maximum gain.
  • Enjoy versatile connectivity; this active wall plate supports both mic and aux inputs.
  • Ensure pristine sound quality; frequency response is -0.8dB from 20Hz to 20kHz.
  • Rely on robust performance with a maximum output level of +23dBV for strong signals.
  • Customize your setup; this wall plate requires a 24VDC power supply (sold separately).

What's in the box:

  • Whirlwind MIPAID 2 Gang Media Input Wall Plate without Power Supply
  • Whirlwind 2 Year Limited Warranty
