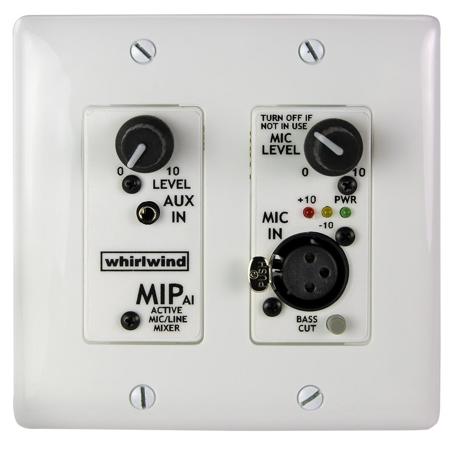

Whirlwind MIPAID 2 Gang Media Input Active Wall Plate with Power Supply, White

Discover the Whirlwind MIPAID 2 Gang Media Input Active Wall Plate, a sophisticated and efficient solution for combining line and microphone input sources into a single, balanced output. This high-quality, dual input mixer plate is designed to transmit audio over long distances, making it an ideal choice for large spaces such as gymnasiums, banquet halls, and conference centers.

The MIPAID 2 Gang Wall Plate features a stylish white decor insert, seamlessly blending with your home or studio decor. Each plate operates as a standalone two-channel mixer, equipped with one balanced mic level input via a 3-pin female XLR and a stereo aux input connected through a 3.5mm TRS unbalanced jack, summed to mono for optimal sound quality.

This durable media input plate offers separate level controls for each input, delivering enough gain to drive modern power amplifiers to full output. It also includes a bass cut switch on the mic input, effectively reducing rumble and handling noise for a clearer, more refined audio experience.

The MIPAID 2 Gang Wall Plate also features an additional line input on the rear panel screw terminals, allowing for a daisy chain configuration with up to two more MIPAID plates. This setup enables all three plates to be summed together, with all six level controls adjusting their respective inputs up to the maximum output drive level of +22dB.

Each MIPAID plate is equipped with two LEDs that indicate signal levels of -10dB and +10dB, providing a visual guide for optimal audio performance. The last MIPAID in the chain will show signal level on its LEDs, even without an input applied to that plate.

Designed for convenience, all three plates can be powered from a single supply located in the equipment rack. The MIPAID 2 Gang Wall Plate is compatible with Whirlwind MIPAO or MIPAT output termination boxes for connecting to processing electronics. Audio output is facilitated via a 3-pin male XLR or screw terminals, and a 2.1mm power input jack loops the wall power supply to the MIPAID screw terminal connections.

The rear panel line input is shipped with a shorting jumper termination for easy setup. With a recommended electrical backbox depth of 2.5" for gangable box type and 2.125" for utility box type, the Whirlwind MIPAID 2 Gang Media Input Active Wall Plate is a reliable and efficient choice for your audio and video needs.
