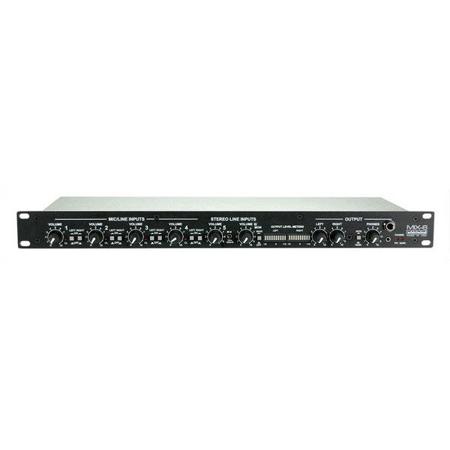

Whirlwind MIX 6 Stereo Mixer with 4 Mic Channels and 2 Aux Line Inputs

SKU: WWMIX6 MFR: MIX-6
Earn VIP Reward Points

Key Features

  • Achieve pristine sound quality with this Whirlwind mixer, ensuring professional audio clarity.
  • Utilize 4 mic channels on this stereo mixer for dynamic vocal and instrument arrangements.
  • Enjoy flexible connectivity with 2 aux line inputs, perfect for integrating external audio.
  • Optimize your sound with precise EQ control, tailoring each channel to perfection easily.
  • Experience low noise performance, capturing clean recordings with this Whirlwind mixer.
  • Rely on the durability of this robust mixer, built to withstand rigorous live sound use.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Whirlwind MIX 6 Specifications

  • Frequency Response: Line mode

    +/- 3dB, 6Hz to 40kHz
    -0.4dB @ 20Hz
    -.8dB @ 20kHz

  • Frequency Response: Mic mode

    +/- 3dB, 18Hz to 36kHz
    -2.5dB @ 20Hz
    -1dB @20kHz

  • Maximum Input Level: Line mode

    +22 dBm unbalanced
    +28 dBm balanced

  • Maximum Input Level: Mic mode

    - 14 dBm unbalanced
    +28 dBm balanced

  • Maximum Input Level: Aux 1& 2

    +22 dBm unbalanced
    +28 dBm balanced

  • Input Impedance

    4kOhm

  • Aux 2 Input Impedance

    4kOhm

  • Maximum Output Level: Balanced

    +28dBm

  • Maximum Output Level: Unbalanced

    +22dBm

  • Output Impedance XLRs: Line mode

    100Ohms

  • Output Impedance XLRs: Mic mode

    200Ohms

  • Output Impedance TRS: Unbalanced

    60Ohms

  • Output Impedance TRS: Balanced

    120Ohms

  • Rise Time

    8.6uSec

  • Stereo Separation

    >65dBm

  • Attenuation Of Line/Mic Output Switch

    20dBm

  • Isolation Between 1/4" and XLR Outputs

    >100dBm

  • C.M.R. (Common Mode Rejection) of Input

    > 55dBm @ 60Hz

  • LED Clip Threshold

    +19dBm unbalanced
    +25dBm balanced

  • THD+N(Total Harmonic Distortion + Noise)

    .005% @ 1kHz -2.5dB at 20Hz
    -1dB at 20kHz .02% 20Hz to 20kHz

  • Phantom Power

    + 48 Volts DC

  • Power Consumption

    .27 Amps Max AC at 120VAC +28dBm balanced
    .27Amps Max AC at 230VAC

  • AC Dropout Voltage

    +103 VAC @ 120VAC Nominal
    +203 VAC @ 23OVAC Nominal

  • Internal Mains Fuse

    .25 Amps Slo-Blo 3AG

  • Dimensions (W x D x H)

    19.0 x 6.0 x 1.75" / 482.60 x 152.40 x 44.45mm

  • Weight

    7lbs / 3.18kg

  • UPC Code

    69246500181

About Whirlwind MIX 6

For professionals seeking superior audio mixing capabilities, the Whirlwind Mix 6 Stereo Mixer is an ideal choice. This high-quality, six-channel analog mixer is equipped with four versatile mic or line input channels and two additional stereo aux line inputs, ensuring a broad range of connectivity options for various audio sources.

Designed to deliver exceptional sonic performance, the Mix 6 is perfect for demanding professional mic and line mixing applications. It offers up to 70 dB of gain, providing a professional-grade signal-to-noise ratio. Even at this high gain, the mixer maintains 10 to 15 dB of headroom, making it ideally suited for production with digital recording media.

The Whirlwind Mix 6 Stereo Mixer stands out with its unique features. It includes two stereo aux inputs, one of which can be utilized as a separate monitor input, offering flexibility in managing your audio sources. The built-in low cut filters come into play when using the mic settings, ensuring clear and crisp audio output.

Additionally, the mixer boasts a dedicated headphone circuit, allowing for private monitoring and fine-tuning of audio mixes. The Mix 6 comes with a comprehensive set of hook-up hardware, capable of handling any configuration of line or mic level signals. It also accommodates any combination of balanced or unbalanced XLR and 1/4" connectors, making it a versatile tool for any audio professional.

In summary, the Whirlwind Mix 6 Stereo Mixer with 4 Mic Channels and 2 Aux Line Inputs is a robust, versatile, and high-performing audio mixer designed to meet the needs of today's audio professionals.

Whirlwind MIX 6 Features

  • High-quality, six-channel analog stereo mixer for professional audio mixing
  • Features four mic or line input channels and two stereo aux line inputs for versatile connectivity
  • Provides up to 70 dB of gain with a professional-grade signal-to-noise ratio
  • Includes built-in low cut filters for enhanced audio clarity when using mic settings
  • Equipped with a dedicated headphone circuit for private audio monitoring
  • Accommodates both balanced & unbalanced XLR & 1/4" connectors for a broad range of audio sources

Warranty Information

This product has a limited warranty of 60 months.

Product Documents

User Manual

Key Features

  • Achieve pristine sound quality with this Whirlwind mixer, ensuring professional audio clarity.
  • Utilize 4 mic channels on this stereo mixer for dynamic vocal and instrument arrangements.
  • Enjoy flexible connectivity with 2 aux line inputs, perfect for integrating external audio.
  • Optimize your sound with precise EQ control, tailoring each channel to perfection easily.
  • Experience low noise performance, capturing clean recordings with this Whirlwind mixer.
  • Rely on the durability of this robust mixer, built to withstand rigorous live sound use.

What's in the box:

  • Whirlwind MIX 6 Stereo Mixer with 4 Mic Channels and 2 Aux Line Inputs
  • Whirlwind 5 Year Limited Warranty
