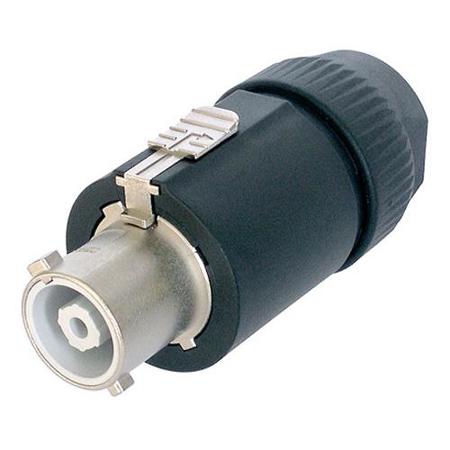

Whirlwind Neutrik NAC3FC-HC powerCON 32 A Female Cable Connector

SKU: WWNAC3FCHC MFR: NAC3FC-HC
$33.94
Earn VIP Reward Points

Key Features

  • Get reliable power connections with this 32A powerCON female cable connector.
  • Ensure safe power delivery with a robust connector rated up to 250V voltage.
  • Use this Whirlwind powerCON connector for audio equipment and stage lighting.
  • Enjoy durable performance with silver-plated contacts for superior conductivity.
  • Easily wire connections with a design supporting up to 14 AWG wire gauge.
  • Operates reliably in a wide range of temperatures, from -13 to 158 degrees F.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$3.49

2 Year

$5.99

3 Year

$8.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Whirlwind NAC3FC-HC Specifications

  • Connector 1

    1x PowerCON

  • Connector 2

    Bare Ends

  • Maximum Voltage

    250 V

  • Current

    32 A

  • Contact Resistance

    3Ohms

  • Dielectric Strength

    4 kVDC / 2.8 kVAC

  • Contact Plating

    4 micro Silver

  • Contact Material

    Brass

  • Wire Gauge

    14 AWG

  • Minimum Insulation Resistance

    10 GOhms

  • Operating Temperature

    -13 to 158 Degree F (-25 to 70 Degree C)

  • IP Rating

    IP20

  • Dimensions

    3.25 x 1.43" (82.5 x 36.2mm)

About Whirlwind NAC3FC-HC

Find the Neutrik NAC3FC-HC powerCON 32 A Female Cable Connector, a pinnacle of connectivity for professional audio and video setups. This connector is designed to handle high current capacity with a 32 A rating, ensuring that your equipment receives a steady and secure power supply. Crafted with durability in mind, the powerCON 32 A cable connector is an exceptionally sturdy and reliable locking single-phase AC appliance cable connector, ideal for the rigorous demands of on-stage and studio environments.

The Neutrik NAC3FC-HC is not just robust; it's engineered for high performance, featuring a non-standardized 3 pole connection system that is perfect for high power distribution systems. This system is specifically tailored to meet the needs of professional audio, lighting equipment, and installations that require a reliable power source without interruption.

With contacts for phase, neutral, and protective earth (ground) conductors, this connector is capable of carrying currents up to 32 A and accommodating voltages up to 250V, making it a versatile choice for a wide range of professional applications. The Neutrik brand, under the reputable umbrella of Whirlwind, guarantees a high-quality product that professionals in the industry trust for its reliability and longevity.

Choose the Neutrik NAC3FC-HC powerCON 32 A Female Cable Connector for a seamless integration with the Neutrik powerCON connector system, widely recognized and utilized in the professional audio and video industry. Its compatibility ensures a secure and reliable connection, making it a preferred choice for those who value uninterrupted performance and robust construction in their power connections.

Whirlwind NAC3FC-HC Features

  • 250 V ac, 32 A single-phase (for ambient temperatures up to 35 Degree C)
  • Premating contact for protective earth
  • Fast and easy locking system to prevent unintentional disengagement
  • Cable O.D. Range: 8 - 20 mm
  • Wiring with screw-type terminals for wires 2.5 to 6.0 mm sq. (AWG 14 - 10)
  • Excellent cable handling and protection
  • Extremely robust and reliable
  • VDE, UL, cUL and JET approved

Warranty Information

This product has a limited warranty of 6 months.

Key Features

  • Get reliable power connections with this 32A powerCON female cable connector.
  • Ensure safe power delivery with a robust connector rated up to 250V voltage.
  • Use this Whirlwind powerCON connector for audio equipment and stage lighting.
  • Enjoy durable performance with silver-plated contacts for superior conductivity.
  • Easily wire connections with a design supporting up to 14 AWG wire gauge.
  • Operates reliably in a wide range of temperatures, from -13 to 158 degrees F.

What's in the box:

  • Neutrik NAC3FC-HC powerCON 32 A Female Cable Connector
  • Whirlwind 6 Month Limited Warranty
