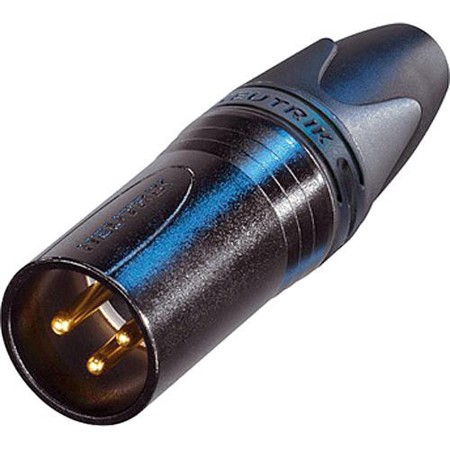

Whirlwind 3 Pole XLR Male Inline Cable Connector with Black Metal Housing and Gold Contacts

SKU: WWNC3MXXB MFR: NC3MXX-B
$5.35
Earn VIP Reward Points

Key Features

  • Experience superior audio with this Whirlwind XLR male connector's gold contacts.
  • Achieve reliable connections for clear sound with durable Whirlwind audio connectors.
  • This 3-pole XLR connector boasts a black metal housing for enhanced durability.
  • Enjoy broad compatibility with this standard XLR connector, ideal for various setups.
  • Ensure optimal signal transfer with our shielded XLR, minimizing interference for pristine audio.
  • Whirlwind's robust design offers long-lasting performance, withstanding 1000+ mating cycles.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?PATRICK B : It spoke to me

Reviews about this item

Review Summary

Whirlwind 3 Pole XLR Male Inline Connector, Black Metal Housing, Gold Contacts Specifications

Connection Type

Connection Type

Jump to...
  • Connection Type

    XLR

  • Gender

    Male

Electrical

Jump to...
  • Capacitance between contacts

    <= 4 pF

  • Contact resistance

    <= 3 mOhms

  • Dielectric strength

    1.5 kVdc

  • Insulation resistance

    > 10 GOhms (initial)

  • Rated current per contact

    16 A

  • Rated voltage

    < 50 V

Mechanical

Jump to...
  • Cable O.D.

    3.5 - 8.0mm

  • Insertion force

    <= 20 N

  • Withdrawal force

    <= 20 N

  • Lifetime

    > 1000 mating cycles

  • Wiresize

    Max. 2.5mm2
    Max. 14 AWG

  • Wiring

    Solder contacts

  • Locking device

    Latch lock

Material

Jump to...
  • Boot

    Polyurethane

  • Contact plating

    0.2 Mum Au hard alloy over 2 Mum Ni

  • Contacts

    Brass (CuZn39Pb3)

  • Insert

    Polyamide (PA 6.6 30 % GR)

  • Locking element

    Zinc diecast (ZnAl4Cu1)

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell plating

    Black chromium

  • Strain relief

    Polyacetal (POM)

Environmental

Jump to...
  • Flammability

    UL 94 HB

  • Standard compliance

    IEC 61076-2-103

  • Protection class

    IP 40

  • Solderability

    Complies with IEC 68-2-20

  • Temperature range

    -30 to 80 deg. C (-22 to 176 deg. F)

About Whirlwind 3 Pole XLR Male Inline Connector, Black Metal Housing, Gold Contacts

How does the next generation of globally recognized XLR cable connectors stand out This 3 Pole XLR Male Inline Cable Connector, with its sleek black metal housing and gold contacts, is the successor to the X series and offers a host of enhanced features. Designed for durability and high-quality performance, this connector is not only more reliable but also easier to assemble, ensuring a seamless user experience.

The gold contacts of this professional-grade connector are known for their superior quality and longevity, providing consistent, uninterrupted audio transmission. This makes it an ideal choice for professional audio applications, such as connecting microphones or instruments to mixing consoles or audio recorders.

Moreover, the stylish black metal housing not only adds to its aesthetic appeal but also enhances its durability, making it a reliable choice for rigorous, everyday use. The improved contact integrity and cable strain relief features further ensure that your audio connections remain secure and stable, even under demanding conditions.

In essence, this 3 Pole XLR Male Inline Cable Connector is a perfect blend of style, functionality, and reliability, designed to meet the needs of audio professionals and enthusiasts alike.

Whirlwind 3 Pole XLR Male Inline Connector, Black Metal Housing, Gold Contacts Features

  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable
  • Internal thread on shell is well protected against any damage

Warranty Information

This product has a limited warranty of 6 months.

Key Features

  • Experience superior audio with this Whirlwind XLR male connector's gold contacts.
  • Achieve reliable connections for clear sound with durable Whirlwind audio connectors.
  • This 3-pole XLR connector boasts a black metal housing for enhanced durability.
  • Enjoy broad compatibility with this standard XLR connector, ideal for various setups.
  • Ensure optimal signal transfer with our shielded XLR, minimizing interference for pristine audio.
  • Whirlwind's robust design offers long-lasting performance, withstanding 1000+ mating cycles.
