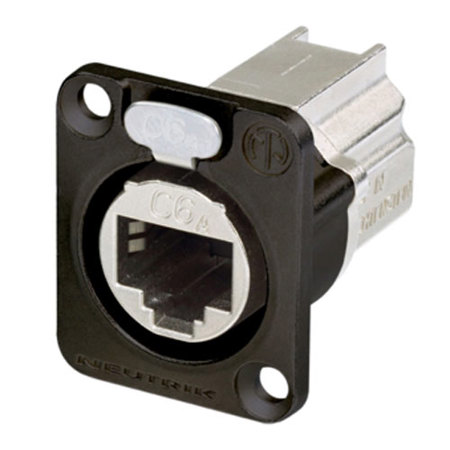

Whirlwind Neutrik D-Shape CAT6A Panel Connector, Feedthrough, Black Housing
See all Whirlwind items

Whirlwind Neutrik D-Shape CAT6A Panel Connector, Feedthrough, Shielded, etherCON, Black Housing

SKU: WWNE8FDXP6B
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular

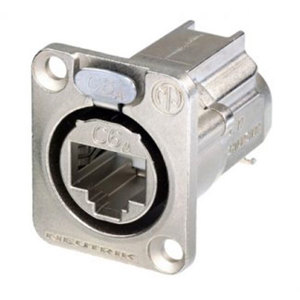

Whirlwind Neutrik D-Shape CAT6A Panel Connector, Feedthrough, Nickel Housing
$27.15
undefined undefined: Picture 1 regular
Whirlwind Neutrik D-shape CAT6A Panel Connector, Shielded, Nickel Housing
$24.04
undefined undefined: Picture 1 regular

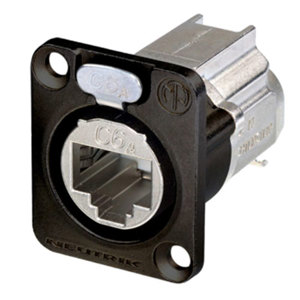

Whirlwind Neutrik D-shape CAT6A Panel Connector, Shielded, Black Housing
$31.24
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Whirlwind CAT6A Panel Connector Specifications

Electrical

Electrical

Jump to...

  • Dielectric strength

    1 kVdc

  • Insulation resistance

    > 0.5 GOhm

  • Rated current per contact

    1.5 A

  • Transmission performance

    CAT6A, acc. TIA/EIA rating
    Class EA, acc. IEC/ISO/EN rating

  • Power over Ethernet

    PoE+ acc. IEEE 802.3at

Mechanical

Jump to...

  • Lifetime

    > 1000 mating cycles

  • Wiring

    Feedthrough

  • Locking device

    Latch lock

  • Mounting direction

    Front mounting

Material

Jump to...

  • Contact plating

    Au

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell plating

    Black

Environmental

Jump to...

  • Flammability

    UL 94 V-0

  • Temperature range

    -40 Degree C to + 70 Degree C

About Whirlwind CAT6A Panel Connector

D-shape CAT6A panel connector, shielded, IDC termination, black housing.

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S cables.

Whirlwind CAT6A Panel Connector Features

  • Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
  • Rugged latch lock system million fold proven
  • Shielded system - high noise immunity and EMI protection
  • PoE+ compliant according to 802.3at Type2
  • Intermateable with the existing etherCON CAT5 range

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
  • Rugged latch lock system million fold proven
  • Shielded system - high noise immunity and EMI protection
  • PoE+ compliant according to 802.3at Type2
  • Intermateable with the existing etherCON CAT5 range

What's in the box:

  • Neutrik D-Shape CAT6A Panel Connector (Black Housing)
  • Whirlwind Neutrik 180 Day Warranty
