Whirlwind podMIXai Active Mic/Line Mixer

From professional audio setups to lively party houses, the podMIXai Active Mic/Line Mixer by Whirlwind stands as a versatile and reliable solution for blending audio signals with precision and ease. This high-quality mixer is designed to seamlessly integrate a microphone or wireless receiver mic output with an unbalanced stereo audio source, such as CD and MP3 players, computer sound card outputs, or DJ mixers. It's an ideal choice for delivering clear announcements or paging over background music in environments like sports arenas, conference rooms, banquet halls, gymnasiums, and more.

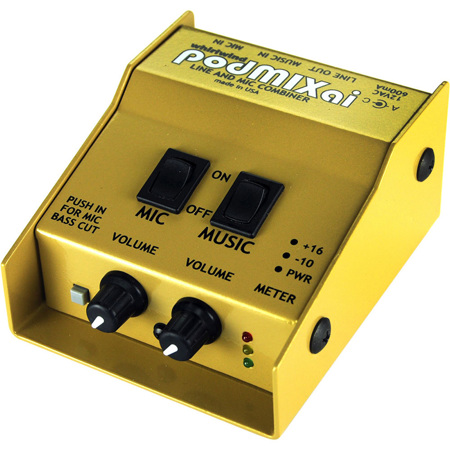

The podMIXai boasts a durable, small tabletop enclosure with an ergonomic design that ensures both ease of use and convenient storage. Its mono balanced mic level output, as shipped, can be expertly modified for a line level output to suit a variety of professional audio needs. The inclusion of a wall adapter power supply (PS12AC1A) provides a steady 12 VAC at 1 Amp, ensuring that your mixer is always ready for action.

With variable level controls on both the mic and music inputs, users can effortlessly match and mix levels between the music source and the microphone, tailoring the audio experience to their preferences. The mic input is capable of providing up to a substantial 60 dB of gain, while the music input can amplify the signal by 20 dB. On/Off switches for both inputs offer the convenience of muting control, allowing for quick adjustments during live events.

The podMIXai also features a bass cut switch on the mic input to reduce unwanted handling and wind noise, ensuring a clearer sound output. Its LED meter, with yellow and red indicators, confirms the output level, while a green LED signals power connectivity. The yellow LED begins to illuminate at -30 dB, with the red starting at -10 dB and reaching full brightness at -4 dB, providing visual feedback for optimal audio levels.

For connectivity, the podMIXai includes a 3.5mm (1/8") stereo TRS jack that sums stereo signals to mono, a balanced female XLR jack for microphone input, and a balanced male XLR jack for output. Internal jumpers allow for customization, including the application of phantom power to the mic input, changing the output level from mic to line, and lifting the output pin 1 ground for improved audio quality. These jumpers are easily accessible by removing the four screws that secure the base of the unit.

In summary, the podMIXai Active Mic/Line Mixer is a professional-grade tool that offers durability, high-quality sound mixing, and the versatility needed for a wide range of audio applications. Whether you're managing live events or setting up a sophisticated audio system, the podMIXai is a reliable choice that delivers exceptional performance.
