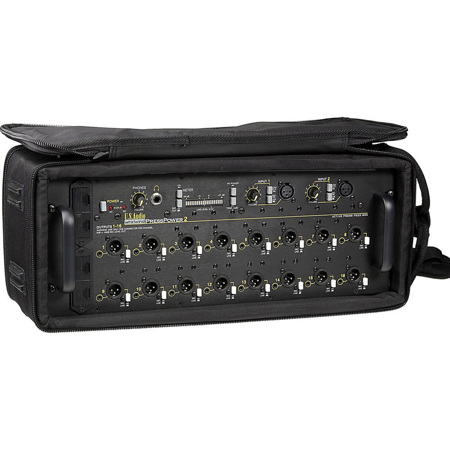

Whirlwind PressPower 2 NC Active Press Box without Case, 20Hz-16kHz Frequency Response, 150 Ohms Mic and Line Output Impedance

SKU: WWPRESPWE2NC MFR: PRESSPOWER 2 NC
Earn VIP Reward Points

Key Features

  • Achieve pristine audio quality with this active press box, ideal for live events.
  • Ensure reliable connectivity with mic and line outputs at a consistent 150 Ohms.
  • Enjoy durable performance with a frequency response from 20Hz to 16kHz.
  • This Whirlwind press box offers ease of use for clear audio signal distribution.
  • Perfect for press conferences, providing balanced mic and line-level audio feeds.
  • Get superior sound isolation between outputs, greater than 95 dB for mics.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Whirlwind PressPower 2 NC Active Press Box without Case Specifications

  • Frequency Response

    -.5dBm 20Hz to -2dBm 16kHz

  • Input Impedance

    Mic: 1.5kOhms
    Line: 200kOhms

  • Maximum Input Level

    Mic: -5dBm
    Line: +50dBm

  • Output Impedance

    Mic: 150 Ohms
    Line: 150 Ohms

  • Maximum Output Level

    Mic: -5 dBm into 2kOhms
    Line: +23 dBm into 2kOhms

  • Total Harmonic Distortion

    .075% at 1 kHz, mic at unity gain

  • Isolation Between Outputs

    Mic: Greater than 95 dB
    Line: Greater than 60 dBm

  • Power Draw AC mode

    31 W max.

  • Power Draw DC mode

    LED Meter Off, No Headphones:
    Current: 40mA
    Battery Life: 15hr
    LED Meter in Dot Mode, No Headphones:
    Current: 73mA
    Battery Life: 9hr
    LED Meter Off, 30 Ohms Headphones:
    Current: 60mA
    Battery Life: 10hr
    LED Meter in Dot Mode, 30 Ohms Headphones: 94mA
    Battery Life: 5hr

  • Size

    Removed from Case: 4RU

  • Dimensions

    Inside Case: 20.00 X 9.50 X 8.50" (50.80 x 24.13 x 21.59cm)

  • Weight

    12lbs (4.53kg)

  • UPC Code

    692465004206

About Whirlwind PressPower 2 NC Active Press Box without Case

For professionals seeking superior audio control, the Whirlwind PressPower 2 NC Active Press Box without Case is an exceptional choice. This high-performance audio equipment features dual mic/line inputs, each with individual gain controls for precise audio adjustments. It also boasts 16 transformer isolated outputs, all of which can be individually toggled between mic or line level operation, providing versatility for a wide range of audio setups.

This PressPower 2 NC Active Press Box is equipped with a 20-segment LED level meter for accurate audio level monitoring. It also includes an internal test tone generator, a feature that simplifies the process of setting up and calibrating your audio equipment. For personal monitoring, it has a built-in headphone monitor amp with a volume control, allowing you to listen to the audio output directly.

The front panel of this active press box is conveniently accessible and houses high-pass filters and phantom power, providing enhanced control over your audio output. Its high-performance input stage ensures clean, distortion-free audio even in environments with high RF interference.

One of the standout features of this PressPower 2 NC Active Press Box is its versatile power options. It can be powered by 115 / 230 VAC - 50 / 60 Hz, by four 9V internal batteries, or with an external DC supply ranging from 12 - 36 VDC, connected via rear terminals. This flexibility allows the unit to be powered by various sources such as a car battery, cigarette lighter, or camera pack battery. In case of an AC power failure or battery exhaustion, the unit automatically switches to the strongest available voltage, ensuring uninterrupted operation.

For those requiring more outputs, this unit can be expanded with optional 16 channel PRESS2XP expander modules, increasing the total active outputs to 48. Furthermore, by adding passive PB Series Press Boxes to outputs set to line level, even more mic outputs can be achieved. The Whirlwind PressPower 2 NC Active Press Box without Case is a comprehensive solution for all your professional audio needs.

Whirlwind PressPower 2 NC Active Press Box without Case Features

  • High-performance PressPower 2 NC Active Press Box without Case for superior audio control
  • Features dual mic/line inputs with individual gain controls and 16 transformer isolated outputs
  • Includes 20-segment LED level meter, internal test tone generator, and built-in headphone monitor amp
  • Front-panel accessible high-pass filters and phantom power for enhanced audio output control
  • Versatile power options including 115 / 230 VAC, internal batteries, or external DC supply
  • Expandable with optional 16 channel PRESS2XP expander modules for up to 48 total active outputs

Warranty Information

This product has a limited warranty of 60 months.
