Closeout

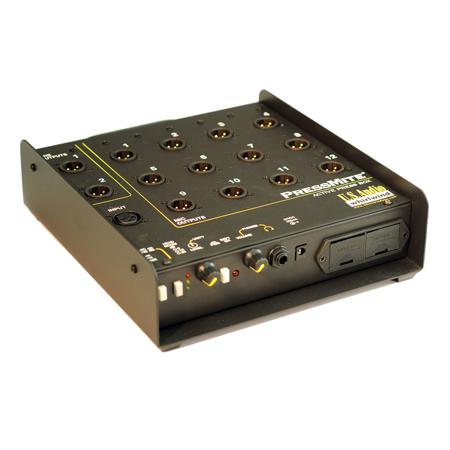

Whirlwind PressMite 1 Line In to 12 Mic/2 Line Out Active Press Box, 150 Ohms Mic and 600 Ohms Line Output Impedance

SKU: WWPRESSMITE MFR: PRESSMITE
Earn VIP Reward Points

Key Features

  • Ensure crystal-clear audio with this Whirlwind PressMite active press box splitter.
  • Distribute audio feeds easily with 12 mic outputs and 2 line outputs for versatile connectivity.
  • Achieve optimal sound quality with a frequency response of 100 Hz - 6 kHz, +/-0.3dB.
  • Enjoy durable, long-lasting performance with a robust design and a 5-year Whirlwind warranty.
  • Easily monitor audio levels with the intuitive LED indicators for precise sound management.
  • Experience flexible power options with batteries or included 24V DC adapter for reliability.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Whirlwind PressMite Specifications

  • Frequency Response

    100 Hz - 6 kHz, +/-0.3dB
    15 Hz - 20 kHz, +/-3.0dB

  • Input Impedance

    Mic: 1.5 kOhms
    Line: 40 kOhms

  • Maximum Input Level

    Mic: -14 dBu
    Line: +30 dBu

  • Output Impedance

    Mic: 150 Ohms
    Line: 600 Ohms

  • Maximum Output Level

    Mic: -17dBu Mic Outputs
    Line: +12dBu

  • Total Harmonic Distortion

    0.063% at 1 kHz (unity gain)

  • Rise Time

    26 uS

  • Phase Shift

    -0.8 deg. at 1 kHz (unity gain)

  • Intermodulation Distortion

    0.08% (unity gain, Mic mode)

  • CMR at 60 Hz

    Mic: 75 dB
    Line: 60 dB

  • Isolation

    Mic Outputs: 65 dB between vertically adjacent channel pairs, 107 dB between non-vertically adjacent pairs
    Line Outputs: Greater than 77 dB

  • Power Requirements

    (2) 9 V alkaline batteries or 24 Volt external DC (120 VAC / 24 VDC power adapter included)

  • Headroom LED Threshold

    Measured level at Mic Output:
    Green LED: -41
    Yellow LED: -29
    Red LED: -17

  • Range of Level Pot

    -50 to +22dBm

  • Range of Headphone Volume Control

    -50 to +22dBm

  • Power Draw Idle

    16mA DC

  • Fully Loaded with 30ohms Phones

    At Full Volume: 73mA DC

  • Battery Life

    8 Hours (Continuous Use)

  • Dimensions

    9.25 x 11.37 x 2.62" (23.49 x 28.87 x 6.65cm)

  • Weight

    6lbs (2.72kg)

  • UPC Code

    69246500418

About Whirlwind PressMite

From live press conferences to public events, the Whirlwind PressMite 1 Line In to 12 Mic/2 Line Out Active Press Box is a robust and reliable solution for your audio distribution needs. This high-performance press box offers a substantial 60 dB gain adjustment for a single microphone or line input, ensuring optimal sound quality and clarity in various settings.

One of the standout features of this PressMite press box is its built-in headphone amplifier, designed to enhance your audio monitoring experience. It operates on two 9V alkaline batteries, which can power the device for over 8 hours of continuous use. This long-lasting performance is conveniently monitored by a 'Battery OK' LED indicator, providing real-time updates on the battery status.

Replacing the batteries is a breeze, thanks to the side-mount trays that allow for quick and easy access. When used in MIC input mode, this press box offers a selectable 18V phantom power, adding versatility to its functionality.

To aid in precise level adjustment, the PressMite press box features a three-segment LED headroom display. This ensures you can fine-tune your audio output for the best possible results. If your event requires more outputs, you can easily connect PB Series Press Boxes to the line outputs, expanding your capacity with up to 48 additional microphone outputs.

Constructed to endure the rigors of public events, the PressMite's box boasts a sturdy build. This ensures it can withstand heavy use while maintaining its high-quality performance. Whether you're a professional in the field of broadcasting or organizing large-scale events, the Whirlwind PressMite 1 Line In to 12 Mic/2 Line Out Active Press Box is an essential tool for efficient and effective audio distribution.

Whirlwind PressMite Features

  • 1-in/12-out Active press box with phantom power and high isolation between outputs
  • Rugged steel metal enclosure
  • Headphone amp with separate volume control
  • Dual 9V battery or DC power supply operation for enhanced portability
  • Expandable though line out connection to 48 total outputs
  • 3-segment headroom monitoring LED display

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Ensure crystal-clear audio with this Whirlwind PressMite active press box splitter.
  • Distribute audio feeds easily with 12 mic outputs and 2 line outputs for versatile connectivity.
  • Achieve optimal sound quality with a frequency response of 100 Hz - 6 kHz, +/-0.3dB.
  • Enjoy durable, long-lasting performance with a robust design and a 5-year Whirlwind warranty.
  • Easily monitor audio levels with the intuitive LED indicators for precise sound management.
  • Experience flexible power options with batteries or included 24V DC adapter for reliability.

What's in the box:

  • Whirlwind PressMite 1 Line In to 12 Mic/2 Line Out Active Press Box
  • PS24 Power Supply
  • Owner's Manual
  • Whirlwind 5 Year Limited Warranty
