Whirlwind Press Wall Active Wall Mount Pressbox, 20Hz-16KHz Frequency Response, 150 Ohms Mic and Line Output Impedance

SKU: WWPRESSWALL MFR: PRESS WALL
Earn VIP Reward Points

Key Features

  • Ensure crystal-clear audio at every press conference with this Whirlwind active pressbox!
  • Get superior sound quality with a wide 20Hz-16kHz frequency response for pristine audio.
  • This robust audio splitter features durable construction, perfect for demanding environments.
  • Enjoy flexible connectivity with both mic and line outputs, each at a low 150 Ohms impedance.
  • Easily manage multiple audio feeds with 7 output channels via XLR for streamlined setup.
  • Say goodbye to signal interference; experience exceptional isolation between outputs on mics.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Whirlwind Press Wall Active Wall Mount Pressbox Specifications

  • Frequency Response

    -.5dBm 20Hz to -2dBm 16kHz

  • Input Impedance

    Mic: 1.5kOhms
    Line: 200kOhms

  • Maximum Input Level

    Mic: -5dBm
    Line: +50dBm

  • Output Impedance

    Mic: 150 Ohms
    Line: 150 Ohms

  • Maximum Output Level

    Mic: -5 dBm into 2kOhms
    Line: +23 dBm into 2kOhms

  • Total Harmonic Distortion

    .075% at 1 kHz, mic at unity gain

  • Isolation Between Outputs

    Mic: Greater than 95 dB
    Line: Greater than 60 dBm

  • Power Draw AC mode

    31 W max.

  • Dimensions

    Finished Size (Flush Mount): 14.25 x 14.25 x 4.00" (36.19 x 36.19 x 10.16cm)
    Wall Cutout: 12 x 12" (30.48 x 30.48cm)

  • Weight

    With Case: 24lbs (10.88kg)

  • UPC Code

    692465023757

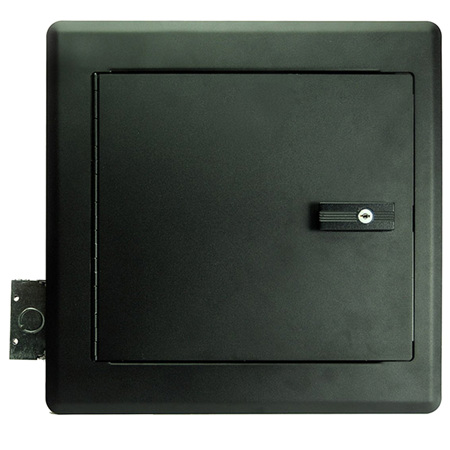

About Whirlwind Press Wall Active Wall Mount Pressbox

From the bustling newsroom to the dynamic event space, the Whirlwind Press Wall Active Wall Mount Pressbox is an indispensable tool for media professionals requiring a reliable and versatile audio distribution system. This state-of-the-art pressbox boasts two mic/line input channels, each with individual gain controls, allowing for precise audio level management. The unit is equipped with 14 transformer isolated outputs, ensuring that each connection is free from electrical interference and can be individually switched between mic or line level for maximum flexibility.

The front panel of the Press Wall Pressbox is designed for ease of access, featuring input jacks for quick setup, while additional remote input connectors offer extended placement options. A highly visible 20-segment LED level meter provides instant visual feedback on signal strength, ensuring optimal audio levels for broadcast or recording.

An internal test tone generator is included for sound system testing and calibration, ensuring that your audio is crisp and clear from the start. For personal monitoring, a built-in headphone monitor amp with a dedicated volume control allows for private audio checks, essential in noisy environments.

The Press Wall Pressbox is also considerate of the needs of condenser microphone users, offering 48 VDC phantom power to keep your mics active without the need for external power sources. The high-performance input stage is designed to deliver clean, undistorted audio even in areas with high RF interference, making it a reliable choice for outdoor press conferences or crowded trade shows.

Installation is a breeze, as the unit is designed to fit seamlessly into walls with standard 16" stud centers, and it operates on 115 VAC - 60 Hz power. When not in use, the locking, hinged cover provides protection, ensuring that your pressbox remains in pristine condition.

For larger media events, the system's capabilities can be expanded. You can add up to two optional 16 channel PRESS2XP expander modules, increasing your total active outputs to an impressive 46. For even more microphone connectivity, passive PB Series Press Boxes can be connected to outputs set to line level, further extending the system's utility.

The Whirlwind Press Wall Active Wall Mount Pressbox is not just a piece of equipment; it's a comprehensive audio solution designed to meet the rigorous demands of press gatherings, conferences, and live events, ensuring that every word is captured and distributed with clarity and precision.

Whirlwind Press Wall Active Wall Mount Pressbox Features

  • Versatile audio distribution with 2 mic/line input channels and individual gain controls
  • 14 transformer isolated outputs, switchable between mic and line levels
  • Convenient 20-segment LED level meter for accurate audio level monitoring
  • Built-in test tone generator and headphone monitor amp with volume control
  • Equipped with 48 VDC phantom power for condenser microphones
  • Expandable with optional PRESS2XP modules for up to 46 active outputs

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Ensure crystal-clear audio at every press conference with this Whirlwind active pressbox!
  • Get superior sound quality with a wide 20Hz-16kHz frequency response for pristine audio.
  • This robust audio splitter features durable construction, perfect for demanding environments.
  • Enjoy flexible connectivity with both mic and line outputs, each at a low 150 Ohms impedance.
  • Easily manage multiple audio feeds with 7 output channels via XLR for streamlined setup.
  • Say goodbye to signal interference; experience exceptional isolation between outputs on mics.
