Black
-0.5dBm 20Hz to -2dBm 16kHz
Mic: 1.5k Ohms
Line: 200k Ohms
Mic: -5dBm
Line: +50dBm
Mic: 150 Ohms
Line: 150 Ohms
Mic: -5 dBm into 2k Ohms
Line: +23 dBm into 2k Ohms
0.075% at 1 kHz, mic @ unity gain
Mic: Greater than 95 dBm
Line: Greater than 60 dBm
31 W max.
LED meter off, no headphones:
Current: 40mA
Battery Life: 15 Hours (Approx.)
LED meter in dot mode, no headphones:
Current: 73mA
Battery Life: 9 Hours (Approx.)
LED meter off, 30 Ohm headphones:
Current: 60mA
Battery Life: 10 Hours (Approx.)
LED meter in dot mode, 30 Ohm headphones:
Current: 94mA
Battery Life: 5 Hours (Approx.)
Optional, not included
Alkaline
9-volt
4
Inside case: 20 x 9.5 x 8.5" (50.8 x 24.1 x 21.6cm)
4RU removed from case
With case: 17 lbs (7.71kg)
Without case: 12 lbs (5.44kg)

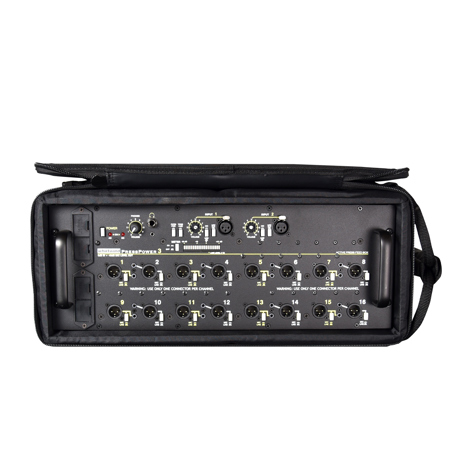

The full-featured PRESSPOWER 3 is the successor to our original PRESSPOWER and PRESSPOWER 2 units, the standard for press conferences worldwide.
It features 2 mic/line inputs with individual gain controls and 16 transformer isolated outputs that are individually switchable for mic or line level operation. The PRESSPOWER 3 includes a 20-segment LED level meter, an internal test tone generator, a built-in headphone monitor amp with volume control, high-pass filters, and phantom power - all conveniently front-panel accessible.
The high-performance input stage provides clean audio even in high RF environments.
The unit can be powered by 115 / 230 VAC - 50 / 60 Hz, by (4) 9 V internal batteries or with an external DC supply (12 - 36 VDC) connected via rear terminals. This allows the unit to be powered by a car battery, cigarette lighter, camera pack battery, etc. In the event of an AC power failure or battery exhaustion, the unit will automatically switch to alternate power by selecting the strongest Voltage available.
Additional active mic/line outputs can be added with an optional 16 channel PRESS2XP expander modules, giving you 32 total active outputs. Additional mic outputs can be achieved by adding passive PB Series Press Boxes to outputs set to line level.
The PRESSPOWER 3 is available without the padded case (PRESSPOWER 3 NC) and it mounts in a standard 4 space, 19" rackmount. Its case is also available separately.
