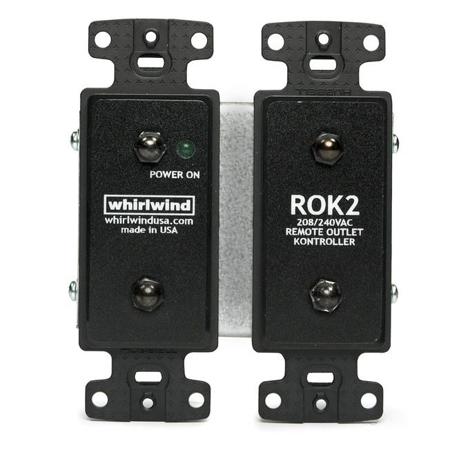

Whirlwind Power Link 240VAC Remote Outlet Controller, 20A, Dual Decora Module

Enhance your power management capabilities with the Whirlwind ROK2 Remote Outlet Controller, a sophisticated and high-tech solution designed for seamless integration into modern electrical systems. This sleek, dual decora module provides a stylish and elegant addition to any space, allowing for the remote control of a 20 Amp single-phase 240 VAC or 208 VAC 3-phase circuit with the utmost convenience.

Crafted for efficiency, the Whirlwind ROK2 boasts a double gang decora type design that can be installed in a 3.5" deep box, or combined with other outlets in a multigang box, making it versatile for placement in ceilings or walls. Its high current capacity of 20A ensures it can handle more powerful devices and appliances, making it a preferred choice for those seeking robust performance.

The unit is UL listed, guaranteeing safe switching of 20 Amp loads, and features an internally generated low voltage for the control circuit, ensuring reliable operation. The ROK2 offers both 240 VAC single-phase and 208 VAC 3-phase switching options, providing flexibility for various electrical setups.

Activation is achieved through a maintained dry contact closure, which triggers the device into action. A double pole relay within the controller makes and breaks both hot legs of a 208-240 VAC 20 Amp circuit, operating on 24 VDC generated internally. The control circuit current flow is approximately 70 mA, ensuring a low power consumption during operation.

A clear indication of the ROK2's status is provided by a green power LED, which illuminates when the output is active, offering visual confirmation of operation at a glance.

Installation of the ROK2 is straightforward, requiring a two-gang mounting in a 3.5" deep gangable type box or utility box with an extension ring. For multigang installations with outlets, a minimum of 2.5" depth behind the faceplate is needed, with careful consideration for wire entry placement to avoid interference with the ROK2.

The device's connections are designed for ease, accepting 12 AWG solid or stranded wire for the power legs, and 18-24 AWG for control wiring, accommodating various wire sizes depending on the length of the control run. The screw-type connections ensure a secure and reliable electrical connection, while the earth connection is straightforward, not requiring looping through the device.

Opt for the Whirlwind ROK2 Remote Outlet Controller for a sophisticated, modern, and high-tech approach to managing your power outlets remotely, ensuring convenience, safety, and control in one elegant package.
