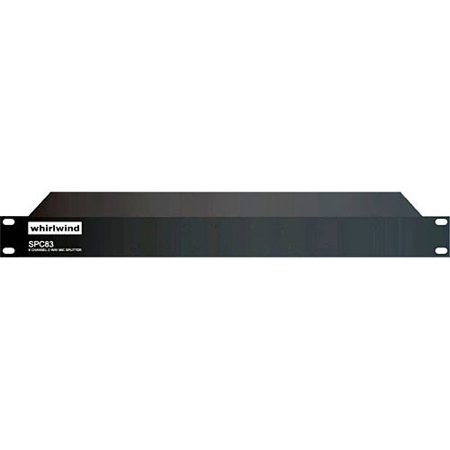

Whirlwind 8-Channel Mic Splitter with 1x Direct and 2x Isolated Outputs, Blocks Phantom Power

SKU: WWSPC83P MFR: SPC83P
Earn VIP Reward Points

Key Features

  • Get pristine audio with this 8-channel mic splitter, ensuring top sound quality.
  • Durable Whirlwind mic splitter offers 1 direct & 2 isolated outputs for versatile use.
  • Phantom power blocking prevents damage; this audio splitter is built for reliability.
  • Easily manage your stage audio; rack-mountable design simplifies connectivity setup.
  • Achieve clear, noise-free recordings with isolated outputs on this stage box.
  • Simplify complex audio setups; this 8-channel splitter enhances ease of use.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Whirlwind 8-Ch Splitter with 1x Direct & 2x Isolated Outs, Blocks Phantom Power Specifications

  • Number of Channel

    8

  • Outputs

    1 x Direct and 2 x Isolated Output

  • Rack Height

    1RU

  • Size

    Tie Bar: 7.50" (19.05cm)

  • UPC Code

    692465013369

About Whirlwind 8-Ch Splitter with 1x Direct & 2x Isolated Outs, Blocks Phantom Power

Because professional audio quality and versatility are paramount, the Whirlwind SPC83P is an exceptional choice for your sound engineering needs. This passive, 8-channel mic splitter is designed to be rack-mountable, making it an ideal solution for installed applications. Its compact, 1RU design ensures it fits seamlessly into your existing setup.

The Whirlwind SPC83P is equipped to handle eight line-level channels, offering one direct and two transformer-isolated outputs for each channel. This feature ensures a high degree of flexibility and control over your audio output. The unit employs top-tier Whirlwind transformers, guaranteeing clear, precise audio reproduction that meets the demands of professional audio applications.

All input and output connections are made via removable Phoenix-style connectors, ensuring balanced connections for optimal audio performance. The splitter's outputs are designed not to pass phantom power, enhancing the safety and longevity of your equipment. For those requiring phantom power, rear terminal connections are available for the optional DCSP1 external phantom power supply.

The Whirlwind SPC83P also features a series of ground-lift DIP-switches located on the back panel. These switches are instrumental in eliminating hum caused by ground loops, ensuring clean, noise-free audio. The unit's design also blocks phantom power from the splitter's outputs, including the direct out, further safeguarding your equipment.

A unique loop-through feature on the phantom connection allows a single DCSP1 to provide phantom power to multiple units. This capability is limited only by a total current draw of up to 500mA, offering considerable flexibility in larger setups. Additionally, a set of dipswitches is provided for each ISO output, enabling you to lift the ground connection between the input and output. This feature can be a lifesaver when dealing with hum or buzz issues, as switching to the "LIFT" position can help reduce or eliminate the problem.

In summary, the Whirlwind SPC83P 8-Channel Mic Splitter is a robust, versatile, and high-quality solution for managing your audio outputs in a professional setting.

Whirlwind 8-Ch Splitter with 1x Direct & 2x Isolated Outs, Blocks Phantom Power Features

  • Rack mountable mic-level splitter
  • Each of the eight inputs has one direct and two isolated outputs
  • Isolated outputs use high-quality Whirlwind transformers
  • Removable phoenix connectors for all I/Os
  • Rear terminal connections allow you to connect the DCSP1 for phantom power
  • Rear-panel ground-lift DIP-switches help reduce hum caused by ground loops

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Get pristine audio with this 8-channel mic splitter, ensuring top sound quality.
  • Durable Whirlwind mic splitter offers 1 direct & 2 isolated outputs for versatile use.
  • Phantom power blocking prevents damage; this audio splitter is built for reliability.
  • Easily manage your stage audio; rack-mountable design simplifies connectivity setup.
  • Achieve clear, noise-free recordings with isolated outputs on this stage box.
  • Simplify complex audio setups; this 8-channel splitter enhances ease of use.

What's in the box:

  • Whirlwind 8-Channel Mic Splitter with 1x Direct and 2x Isolated Outputs Blocks Phantom Power
  • Phoenix Style Connectors Cable
  • 7.50 Tie Bar
  • Whirlwind 3 Year Limited Warranty
