Whirlwind 8-Channel Mic Splitter with 1x Direct and 2x Isolated Outputs, Blocks Phantom Power, XLR Inputs, Phoenix Outputs
SKU: WWSPC83PX MFR: SPC83PX
Earn VIP Reward PointsKey Features
- Get pristine audio with this 8-channel mic splitter, perfect for live sound setups.
- Enjoy versatile connectivity with XLR inputs and Phoenix outputs for pro-grade use.
- Isolate signals effectively; this Whirlwind splitter blocks phantom power interference.
- Achieve superior sound quality with direct and isolated outputs on this stage box.
- Durable Whirlwind design ensures reliable performance; a dependable audio solution.
- Compact 1RU rack height; this 8-channel splitter saves space without sacrificing power.
Ships from Manufacturer?
Free Shipping
See Options
1
Add Adorama Protect:
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Whirlwind 8-Ch Splitter with 1xDirect & 2xIsolated, Blocks Phantom Power, XLR In

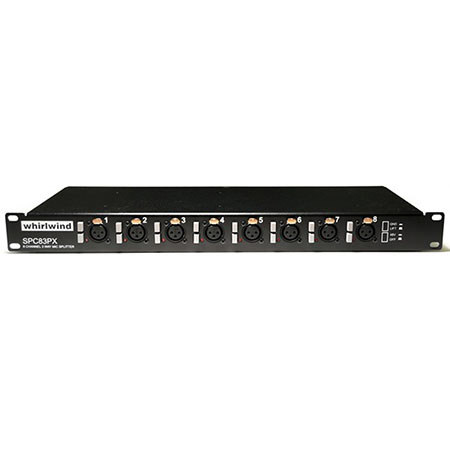

Explore the world of professional audio with the Whirlwind SPC83PX, a passive, rack-mountable 8-channel mic splitter. This high-quality, durable unit is designed with XLR inputs and Phoenix outputs, making it an ideal choice for installed applications in live sound or recording setups.
Each unit of this versatile mic splitter offers eight channels of mic level splitting circuitry, all housed within a single rack space unit with a depth of 7.5 inches, including the tie bar. It features one direct and two isolated outputs per channel, allowing for efficient distribution of audio signals to multiple destinations.
The Whirlwind SPC83PX is built with a Whirlwind transformer used throughout, ensuring reliable and consistent performance. All connections are made via removable Phoenix style connectors, included with the unit for your convenience. A legend on the rear of the unit guides you in making proper balanced connections.
The "ISO" outputs of this professional mic splitter are designed not to pass phantom power, ensuring the "DIRECT OUT" is connected to the source of phantom power when not providing power at the splitter. The unit features rear terminal connections for injecting phantom power at the splitter with the optional Whirlwind DCSP1 external phantom power supply.
Phantom power is effectively blocked from the splitter's outputs, including the direct out, ensuring a clean, balanced signal. A unique loop-through feature on the phantom connection allows a single DCSP1 to provide phantom power to multiple units, limited only by a total current draw of up to 500mA.
Each ISO output is equipped with a set of dipswitches for lifting the ground connection between the input and output. This feature can help reduce or eliminate problems with hum or buzz, enhancing your audio experience.
With the Whirlwind SPC83PX 8-channel mic splitter, experience the perfect blend of functionality and professional-grade audio performance.
Whirlwind 8-Ch Splitter with 1xDirect & 2xIsolated, Blocks Phantom Power, XLR In Features
- High-quality, rack-mountable 8-channel mic splitter with XLR inputs and Phoenix outputs
- Features one direct and two isolated outputs per channel for efficient audio distribution
- Equipped with a Whirlwind transformer and removable Phoenix style connectors for reliable performance
- Designed to block phantom power from splitter's outputs, ensuring clean, balanced signals
- Includes a loop-through feature for providing phantom power to multiple units
- Offers dipswitches on each ISO output to help eliminate problems with hum or buzz
Warranty Information
This product has a limited warranty of 36 months.
