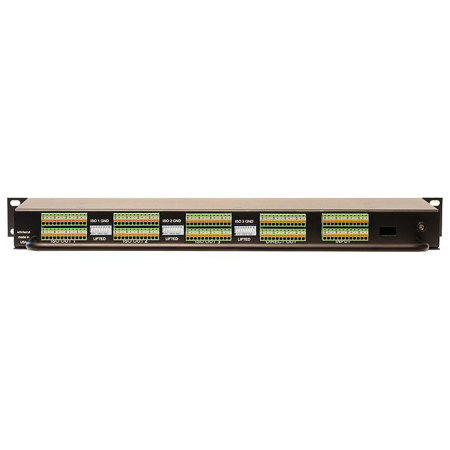

Whirlwind 8-Channel Rackmount Mic Splitter with 1x Direct and 3x Isolated Outputs, 1RU, Lundahl Transformers, Blocks Phantom Power

SKU: WWSPC84P MFR: SPC84P
Earn VIP Reward Points

Key Features

  • Ensure pristine audio quality with this 8-channel mic splitter, perfect for live sound.
  • This rackmount mic splitter features one direct & three isolated outputs for versatile use.
  • Equipped with premium Lundahl transformers, experience superior signal isolation and clarity.
  • Block phantom power effectively, protecting your valuable audio equipment from damage.
  • Achieve optimal audio signal routing in studios or on stage with this reliable splitter.
  • Minimize noise with a maximum microphonic noise level of -115dBV for clean recordings.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Whirlwind 8-Ch Splitter with 1x Direct & 3x Isolated Outs, Blocks Phantom Power Specifications

  • Insertion Loss

    < 3dBV (All Outputs at 2k Loads)

  • Frequency Response

    20Hz - 20kHz (< 0.1dBV, All Outputs at 2k Loads)

  • THD + N

    0.0006% at 20kHz
    0.0006% at 16kHz
    0.0008% at 10kHz
    0.0008% at 2kHz
    0.0011% at 1kHz
    0.0026% at 200Hz
    0.0076% at 100Hz
    0.0258% at 50Hz
    0.122% at 20Hz

  • Phase Shift

    1.5½ at 20kHz
    1.2½ at 16kHz
    0.6½ at 10kHz
    -0.1½ at 2kHz
    -0.2½ at 1kHz
    -0.5½ at 200Hz
    -0.7½ at 100Hz
    -1.1½ at 50Hz
    -2.0½ at 20Hz

  • Common Mode Rejection at Input

    120 dB at 60 hertz
    85 dB at 3 K hertz

  • Maximum Input level(1% thd+n)

    +26 dBV at 1 K hertz
    +16 dBV at 20 hertz

  • Isolation between channels

    128 dB at 1 K Hertz
    115 dB at 20K Hertz

  • Noise

    -115dBV Maximum Micro Phonic Noise

  • Size

    1RU

  • UPC Code

    692465021975

About Whirlwind 8-Ch Splitter with 1x Direct & 3x Isolated Outs, Blocks Phantom Power

When seeking a robust and reliable solution for audio signal distribution, look no further than the Whirlwind SPC84P 8-Channel Rackmount Mic Splitter. This high-quality audio device is designed to split and route 8 audio signals into multiple outputs, offering unparalleled versatility in both live sound and recording applications.

Housed in a slim 1RU rackmount chassis, this mic splitter seamlessly integrates into a standard 19" rack, making it an ideal choice for professional installed applications. Each of its 8 channels is equipped with an input, a direct output, and three transformer-isolated outputs, providing a multitude of routing options for your audio signals.

The isolated outputs employ premium Lundahl transformers, renowned for their superior sonic integrity and purity. This ensures that your audio transmission remains crisp, clear, and free from interference. All connections are facilitated through pluggable screw type connectors, enhancing the durability and longevity of the device.

Additionally, each isolated output channel features a ground lift switch, further enhancing the audio quality by eliminating ground loop issues. The Whirlwind SPC84P also boasts rear terminal connections for injecting phantom power at the splitter with the optional Whirlwind DCSP1 external phantom power supply.

Notably, this mic splitter blocks phantom power from its outputs, including the direct out. This means that phantom power will not pass through the splitter from a mixing console, ensuring the safety and longevity of your connected devices. A loop-through feature on the phantom connection allows a single DCSP1 to provide phantom power to multiple units, limited only by a total current draw of up to 500mA.

In summary, the Whirlwind SPC84P 8-Channel Rackmount Mic Splitter is a versatile, professional-grade audio device that delivers reliable, high-quality performance for all your audio routing needs.

Whirlwind 8-Ch Splitter with 1x Direct & 3x Isolated Outs, Blocks Phantom Power Features

  • 8-channel rackmount mic splitter for efficient audio signal distribution
  • Features premium Lundahl transformers for exceptional audio quality
  • 1RU slim chassis design for seamless integration into standard 19" racks
  • Each channel includes 1 direct and 3 transformer-isolated outputs
  • Ground lift switch on each isolated output to eliminate ground loop issues
  • Phantom power blocking on all outputs to protect connected devices

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Ensure pristine audio quality with this 8-channel mic splitter, perfect for live sound.
  • This rackmount mic splitter features one direct & three isolated outputs for versatile use.
  • Equipped with premium Lundahl transformers, experience superior signal isolation and clarity.
  • Block phantom power effectively, protecting your valuable audio equipment from damage.
  • Achieve optimal audio signal routing in studios or on stage with this reliable splitter.
  • Minimize noise with a maximum microphonic noise level of -115dBV for clean recordings.
