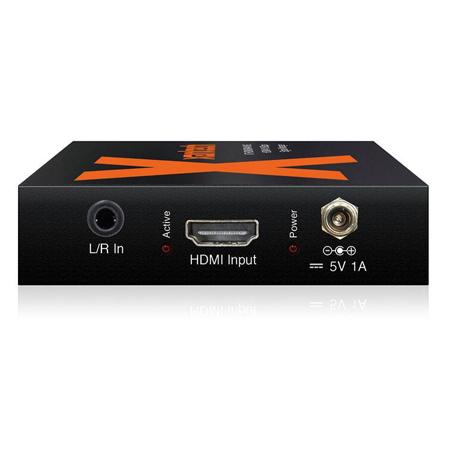

Xantech HDMI Advanced Signal Manager with Audio Embedder / De-Embedder and EDID Management

SKU: XAHDMIM4K18G MFR: XT-HDMI-SM-4K18G
Earn VIP Reward Points

Key Features

  • Enhance your audio with the Xantech HDMI manager's embedder/de-embedder feature.
  • Enjoy high video quality with this 4K HDMI signal manager for seamless viewing.
  • Easily manage EDID settings using the convenient DIP switch for optimal display.
  • Connect various audio sources via the analog left/right audio input on this device.
  • Ensure versatile compatibility with multiple devices using this advanced manager.
  • Control audio output with RCA (SPDIF) & analog options using this Xantech device.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Xantech Advanced Signal Manager Specifications

  • Audio Input Connectors

    1x Analog left/right audio (3.5mm stereo jack)

  • Audio Output Connectors

    1x RCA (SPDIF) & 1x analog left/right audio (3.5mm stereo jack)

  • Video Input Connectors

    1x HDMI Type A, 19-pin, female

  • Video Output Connectors

    1x HDMI Type A, 19-pin, female

  • EDID

    4-Pin DIP switch

  • MODE

    4-Pin DIP switch

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage Temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

  • Power Supply

    5V / 1A DC power supply, screw type connector

  • Dimensions (WxDxH)

    With Connections: 115 x 87 x 22mm (4.53 x 3.43 x 0.87")
    Without Connections: 104 x 87 x 22mm (4.09 x 3.43 x 0.87")

  • Weight

    0.3kg (0.66 lbs) (excluding accessories)

  • UPC Code

    042777797066

About Xantech Advanced Signal Manager

Take your HDMI signal management to the next level with the XT-HDMI-SM-4K18G Advanced HDMI Signal Manager. This state-of-the-art device is specifically designed to address and resolve common issues associated with HDMI signal distribution, such as HDCP 2.2, clock stretching, EDID, and handshaking.

The XT-HDMI-SM-4K18G is more than just a signal manager. It's also an efficient audio embedder and de-embedder, capable of embedding or de-embedding audio within the HDMI signal path. This unique feature allows for the breakout of up to 7.1 channel audio signals, providing you with a richer, more immersive audio experience.

Supporting full HDMI 2.0 and HDCP 2.2, the XT-HDMI-SM-4K18G is equipped to handle video resolutions up to and including 4K at 60Hz 4:4:4. This ensures that you can enjoy superior and detailed image clarity, as a 4K display boasts four times the number of pixels compared to a standard Full HD 1080p display.

Additionally, the XT-HDMI-SM-4K18G comes with an EDID emulator, facilitating seamless integration with various display types. This feature, coupled with the device's next-generation HDCP2.2 copy protection, allows for the playback of the latest 4K source media, making the XT-HDMI-SM-4K18G a comprehensive solution for all your HDMI signal management needs.

Xantech Advanced Signal Manager Features

  • Can help to solve most common HDMI EDID, HDCP handshaking issues
  • Supports 4K UHD video (up to 4K at 60Hz 4:4:4)
  • HDMI audio de-embedded to both analog L/R audio and coaxial digital outputs concurrently (analog audio supports 2CH PCM only)
  • Embed Audio onto the HDMI signal path from analog L/R (analog audio supports 2CH PCM only)
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio Transmission
  • Advanced EDID management
  • HDCP 2.2 Compliant

Key Features

  • Enhance your audio with the Xantech HDMI manager's embedder/de-embedder feature.
  • Enjoy high video quality with this 4K HDMI signal manager for seamless viewing.
  • Easily manage EDID settings using the convenient DIP switch for optimal display.
  • Connect various audio sources via the analog left/right audio input on this device.
  • Ensure versatile compatibility with multiple devices using this advanced manager.
  • Control audio output with RCA (SPDIF) & analog options using this Xantech device.

What's in the box:

  • Xantech XT-HDMI-SM-4K18G HDMI Advanced Signal Manager with Audio Embedder / De-Embedder and EDID Management
  • 5V/1A DC Power Supply
  • Mounting Kit
  • User Manual
  • Xantech 2 Year Warranty
