Xerox Imprinter Accessory for DocuMate 765, 4790, and 4799 Scanners Specifications

Imprinter Specifications

Imprinter Specifications

Jump to...
  • Model Number

    765IMP-KIT, Xerox P/N: 003R98811

Ink Jet Cartridge Specifications

Jump to...
  • Cartridge Dryness time

    0.4 sec @ 23deg C and 50%RH

Environmental Conditions

Jump to...
  • Nozzle distance

    0.5 mm (Min), 1.0 mm (Typical), 1.5 mm (Max)

  • Dimensions

  • Length:

  • Diameter:

  • 3D Features

  • Display

  • Display

  • General Features

  • Network Features

  • Network Features

  • Sensing Features

  • Video

  • Audio

  • Convenience Features

  • Convenience Features

  • Convenience Features

  • Convenience Features

  • Display Features

  • Inputs and Outputs

  • Inputs and Outputs

  • Inputs and Outputs

  • Audio Features

  • Audio Features

  • Audio Features

  • Design Features

  • Energy Saving & Efficiency

  • Power

  • Service and Warranty Information

  • Video Features

  • Video Features

  • Video Features

  • Video Features

  • Video Features

  • Video Features

  • Measurements (Approx.)

  • Regulation and Standards Compliance

  • TV System

  • TV System

  • Weights and Measurements

  • Print technology

    Inkjet Method using Pulse Control

  • Print Head matrix

    12 Nozzles

  • Life expectancy(16 dots/character font)

    Approximately 6 million characters

  • Speed

    Dependent on scanner speed

  • Contact pads

    Gold plated

  • Number of contact pads

    12 (Corresponds to nozzle number)

  • Cartridge Life span (unsealed)

    6 months @ 23deg C

  • Preservation Period (sealed)

    24 Months

  • 48 Hr.Extreme preservation temperature

    -30deg C (Min), 60deg C (Max)

  • Cartridge Total Lifespan

    30 months

  • Temperature guidelines

    10deg C (Min), 23deg C (Normal), 40deg C (Max)

  • Humidity (@ 10deg - 23deg C)

    10%RH (Min), 90%RH (Max)

  • Humidity (@ 10deg - 40deg C)

    10%RH (Min), 50%RH (Max)

  • Operational Altitude (@ 23deg)

    Maximum 3000 m

  • UPC Code

    785414112050

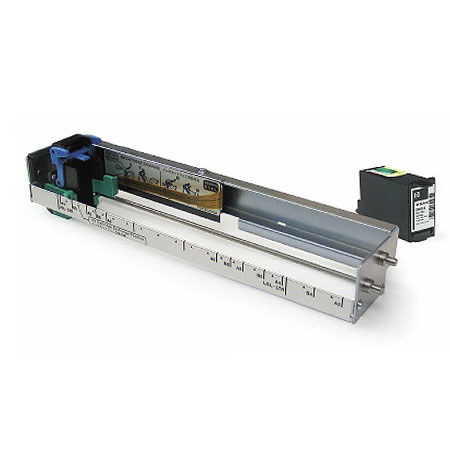

About Xerox Imprinter Accessory for DocuMate 765, 4790, and 4799 Scanners

Xerox Imprinter accessory for DocuMate 765, 4790, and 4799 scanners....

Add distinct characters and tags to your scanned document.
• By installing the optional imprinter kit into the scanner, the user has the ability to print specific characters on to the document before or after scanning, depending on the scanner model. By printing serial numbers, the scanned data can be tracked, matched and/or indexed with the original document.

• The printed characters are read as front side image and function as pre-imprinter (front face of document only) for the DocuMate 765 and 4790, and pre- and/or post-imprinter (front/back side of document) for the DocuMate 4799.
