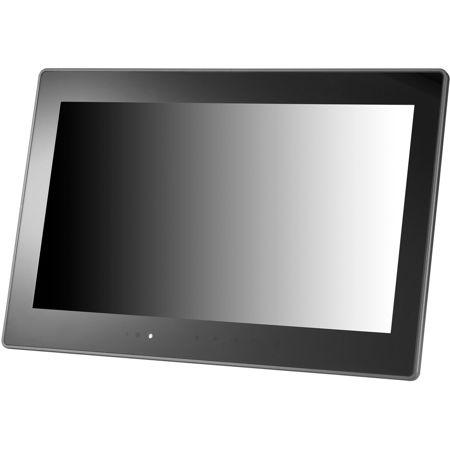

Xenarc 1569GNH 15.6" Full HD Touchscreen Waterproof Sunlight Readable LCD Monitor, Supports HDMI/DVI/VGA/AV

SKU: XEN1569GNH

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Xenarc 1569GNH Specifications

  • Screen Size

    Diagonal 15.6" (39.62cm) (16:9)

  • Physical Resolution

    1920 (H) x 1080 (V) Full HD

  • Supported Resolution

    640 x 480 - 1920 x 1080

  • Dot Resolution

    5,7600 x 1080 = 6,220,800 (dots)

  • Brightness

    1000 cd/ sq. m

  • Contrast Ratio

    800:1

  • Viewing Angle

    170 Degree Horizontal, 170 Degree Vertical

  • Response Time (Tr/Tf)

    13/12ms (Typ.)

  • Touch Screen Interface

    USB port

  • Operating Voltage Range

    DC 9V - 28V

  • Power Supply

    DC 12V

  • Power Consumption

    <= 50W

  • Operating Temperature

    -22 Degree F - 185 Degree F (-30 Degree C - 85 Degree C)

  • Storage Temperature

    -40 Degree F - 194 Degree F (-40 Degree C - 90 Degree C)

  • Vibration

    Operating Random Vibration Test (5-500Hz, 1.0Grms), IEC 60068-2-64 standard

  • Shock

    Operating Shock Test, 10G peak acceleration (11ms duration), IEC 60068-2-27 standard

  • MTBF (Mean Time Between Failures)

    > 55,000 Hours or > 6.2 Years of continuous operation

  • Dimensions (W x H x D)

    15.6 x 10.3 x 1.75" (398 x 264 x 44.7mm)

  • Weight

    9.55 lbs (4.33kg)

  • UPC Code

    856220007462

About Xenarc 1569GNH

Why settle for a standard monitor when you can elevate your viewing experience with the Xenarc 1569GNH 15.6" Full HD Touchscreen Monitor? Engineered for exceptional performance in even the most challenging conditions, this durable and high-resolution display is a perfect fusion of advanced technology and robust design.

Crafted to thrive in the great outdoors or any harsh industrial setting, the 1569GNH boasts an IP67 and IK08 rating, signifying its superior waterproof and shock-resistant capabilities. The optically bonded capacitive touchscreen not only enhances durability by eliminating the air gap between the LCD panel and touch panel but also improves clarity, contrast, and resistance to ambient humidity.

With a stunning Full HD resolution of 1920 x 1080 pixels, the 1569GNH delivers crystal-clear and detailed visuals. The integrated IPS technology ensures consistent and accurate colors, along with a wide viewing angle for an uncompromised viewing experience from any perspective. The high brightness level of 1000 NIT and a contrast ratio of 800:1 guarantee that images remain crisp and vibrant, even under direct sunlight, making it an ideal sunlight-readable monitor.

The versatility of the 1569GNH is unmatched, offering multiple video interfaces through a proprietary 26-pin cable supporting HDMI, VGA, and AV inputs, as well as a direct HDMI connection. Expand your visual setup with ease, thanks to the HDMI output that enables daisy-chaining of multiple 1569 series monitors or connection to other HDMI-compatible screens.

Designed for convenience and adaptability, the 1569GNH comes equipped with waterproof cables, ensuring complete protection from the elements. The monitor's casing allows for both stand-alone and panel mount configurations, with an optional panel mount bracket available for seamless integration. Additionally, the standard 75mm x 75mm VESA mounting holes provide a plethora of mounting possibilities to suit any environment.

Whether you're in need of a reliable touchscreen monitor for outdoor applications, industrial use, or simply a high-quality display that can withstand the rigors of everyday use, the Xenarc 1569GNH is engineered to exceed expectations. Its broad operating temperature range of -30°C to 85°C (-22°F to 185°F) further emphasizes its readiness for any scenario, ensuring consistent performance in extreme conditions.

Choose the Xenarc 1569GNH for a rugged, bright, and versatile display solution that promises to deliver unparalleled clarity and resilience, no matter where your visual needs take you.

Xenarc 1569GNH Features

  • IP67 / NEMA6P Rated Water and Dust Resistance (Whole Unit)
  • Super Wide Operating Temperature range of -22 Degree F - 185 Degree F (-30 Degree C - 85 Degree C)
  • 1,000NIT Sunlight Readable with Long Life LED Backlight
  • Wide Viewing Angle IPS (In-Plane Switching) LCD Panel
  • Automatic Backlight Adjustment through Built-in Ambient Light Sensor
  • Projected Capacitive Multi-Touch Touchscreen (USB)
  • Optical Bonding, Anti-Reflective and Anti-Fingerprint Coating
  • Plug-N-Play with Windows 7 and up and Android devices (Downloadable drivers for other OS)
  • Multi-Monitor Touchscreen Support
  • HDMI Input x 2 (HDCP), VGA Input (15 pin D-SUB) x 1 & Video Input x 2
  • HDMI Output x 1, Analog Audio Output x 1
  • Audio Input x 4 / Built-In Waterproof Speaker
  • 1920x1080 Native Resolution, 16x9 Aspect Ratio
  • Chip Monolithic Ceramic Capacitors for Improved Durability
  • High Performance Image and Video Signal Processor
  • AISS - Advanced Image-Scaling and Shaping
  • Last Input and Power Setting Memory
  • IR Remote Control
  • Auto Power-On upon signal detection
  • Vertical Image Flip
  • Function to Disable Front Button(s) and On Screen Text
  • AV2 Auto Switching for Backup Camera
  • VESA 75mm Mounting Holes
  • Panel Mountable with Optional hardware (PMB-1569)
  • 26-Pin Heavy-Duty Connector with Connector Locking
  • Ruggedized Aluminum Casing
  • Supports 9V DC - 28V DC
  • "E" Mark Certified for Automotive use
  • FCC, CE, E13 Certification
  • IK08 Impact Resistant
  • ROHS, REACH, ECE R118-03 Compliant

Key Features

  • High-resolution 15.6" Full HD touchscreen monitor with 1920 x 1080 pixel clarity
  • Durable, waterproof design with IP67 rating, perfect for outdoor and industrial use
  • Sunlight-readable display with 1000 NIT brightness and 800:1 contrast ratio
  • Versatile connectivity options including HDMI, VGA, and AV inputs
  • VESA standard mounting holes for flexible installation options

What's in the box:

  • Xenarc 1569GNH 15.6" Full HD Touchscreen Waterproof Sunlight Readable LCD Monitor
  • Waterproof Power Lead with AC Adapter (5m)
  • Waterproof 26-Pin Multi-Input Cable (1.8m)
  • Waterproof HDMI Cable (5m)
  • Waterproof USB Cable (5m)
  • Waterproof Audio Cable (1.8m)
  • Xenarc 3 Year Limited Warranty
