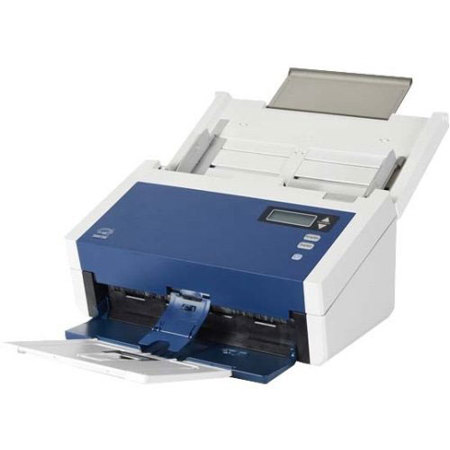

Xerox DocuMate 6480 Document Scanner, 600 dpi Optical/1200 dpi Interpolated Resolution, 88 ppm/176 ipm at 200 dpi Mono/Color Scan Speed, 120 Sheet Duplex ADF

SKU: XEXDM6480U

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Xerox DocuMate 6480 Specifications

  • Scan Speed

    80 ppm / 160 ipm: 300 dpi (B&W, grayscale, or color)
    88 ppm / 176 ipm: 200 dpi (B&W, grayscale, or color)

  • Scan Method

    Duplex Automatic Document Feeder

  • Optical Resolution

    200, 300, 600 dpi

  • Interpolated Resolution

    75, 100, 150, 400, 500, 1200 dpi with Visioneer Acuity

  • Image Sensor

    CCD (Charge Coupled Device)

  • Light Source

    LED (light emitting diode) instant on

  • Background

    Black

  • Output Bit Depth

    24-bit color, 8-bit grayscale, 1-bit black & white

  • Scanning Media Supported

    Paper, plastic ID cards, photos

  • Interface

    Hi-speed USB 3.0 (2.0 compatible)

  • Maximum Card Thickness

    1.25mm (0.05")

  • ADF Minimum Document Size

    51 x 51mm (2.01 x 2.01")

  • ADF Maximum Document Size

    241 x 5994mm (9.49 x 235.98") at 200 dpi

  • Maximum Scan Area

    216 x 5994mm (8.50 x 235.98") at 200 dpi

  • ADF Capacity

    120 pages (20 lbs, 75 - 90g/m2 paper)

  • Duty Cycle

    10000 pages

  • Visioneer OneTouch Technology (PC)

    Yes

  • Drivers

    TWAIN, EMC Captiva, ISIS, and WIA Driver

  • PC Minimum System Requirements

    Intel Pentium IV or equivalent processor
    Compatible with Windows 10 Pro, Home , Enterprise and Education
    Windows 7 Pro, Home , Enterprise and Ultimate
    Windows 8/8.1 Pro, Core and Enterprise
    2GB RAM
    350MB available hard disk space
    Dual layer DVD-ROM drive
    USB port

  • Document Weight

    7-110 lbs (28 - 413 g/m2 paper)

  • DVD-ROM Includes

    User's Manual
    Nuance OmniPage Ultimate
    Nuance PaperPort
    Nuance Power PDF
    Visioneer OneTouch
    Visioneer Acuity

  • Dimensions (WxDxH)

    Paper Trays Extended: 12.5 x 9.4 x 26.8" (31.75 x 23.88 x 68.07cm)
    Paper Trays Collapsed: 12.5 x 6.6 x 7.5" (31.75 x 16.76 x 19.05cm)

  • Weight

    10.3 lbs (4.67kg)

  • UPC Code

    785414118861

About Xerox DocuMate 6480

In today's digital world, it's important to be able to manage and access the data trapped in ever increasing stacks of paper documents. The Xerox DocuMate 6480 provides one of the fastest and most user-friendly ways to harness paper into the digital realm, helping organizations manage their scanned information. These compact desktop scanners have everything you need to digitize all your paper documents:

• Registered EPEAT Device
• Scans Plastic ID cards through automatic document feeder
• Max document size 9.5" x 236"
• Scan speeds up to 80 ppm / 160 ipm at 300 dpi
• Scan speeds up to 88 ppm / 176 ipm at 200 dpi
• 10,000 page daily duty cycle
• Visioneer OneTouch scanning to multiple applications
• Visioneer Acuity image enhancement software and Nuance Software bundle
• Create searchable PDF files to make it easy to find scanned documents
• Barcode Recognition Software

Speed
Load up to 120 mixed sized documents into the document feeder and scan them at speeds of up to 160 images (80 pages) per minute through a high speed USB 3.0 connection. Scanning will be done quickly and the resulting files may even look better than the originals when you apply the software in the bundled suite from Visioneer and Nuance.

Reliability
The active reversing rollers and ball bearing fitted inside the paper feeding mechanism enhances reliability and provides a maximum daily duty cycle of 10,000 pages. An advanced light array increases the amount of light sources from 1 LED to 45 LEDs, providing superior lighting to produce superior images. Ultrasonic Multi-Feed Detection allows you to correct overlapped paper by detecting paper thickness between documents. If two documents are detected, the user will be alerted to make corrections before the scan resumes, ensuring every page is captured. The scanners also feature built-in features such as de-skew and auto-crop saving your CPU precious processing power, allowing it to receive the images at high speed. By using two motors instead of one, the scanners can precisely pick and feed one sheet at a time at high speeds, providing years of scanning reliability.

Searchability
The DocuMate 6480 will automatically transform your scans into searchable PDF files so when you need them, you can find them. The scanners are powered by Visioneer OneTouch technology to scan documents instantly to one of nine preset, yet completely configurable destinations. Visioneer OneTouch takes control of your document management workflows and scans in data using the optimal settings for resolution, color, duplex, auto-crop, auto-straighten and file format and then delivers it to virtually any application, folder or device at the touch of a button.

Working together with Acuity image enhancing software, perfect scanned documents are delivered in a searchable PDF format to email or Microsoft SharePoint or a custom web application. Not only is this a productivity gain, but it greatly reduces the training time for scanner users, further helping your return on investment.

Versatility
Like its predecessor, the DocuMate 6480 scanner provides an adjustable document feeder that will fit 9.5" wide documents and scan paper as long as 236 continuous inches, plus automatically trim out the margin holes from the final scanned image. This is useful when scanning dot matrix tractor feed paper or long medical chart printouts. Both scanners fit comfortably on any desk making them the perfect solution for small and large businesses that need to digitize their paper documents. Any industry can greatly benefit from the professional features that are incorporated into these products: from banking and accounting, legal and healthcare, to transportation and manufacturing.

Visioneer Acuity
Visioneer Acuity enables your scanner to instantly improve the visual clarity of the scan. Features include: patch code detection, barcode detection, scale image plus auto-crop, auto-straighten, auto rotate and much more, all with the touch of a button.

Visioneer OneTouch
OneTouch connects your scanner with a powerful set of settings so with one touch of a button the scanned document is automatically sent to a preconfigured destination such as email, your printer, a file folder or one of many cloud destinations.

Nuance OmniPage Ultimate
OmniPage Ultimate provides a precise OCR and layout retention solution, quickly turning scanned documents into editable, formatted text. The text can then be used in virtually any word processing, desktop publishing or web publishing program.

Nuance PaperPort
Nuance PaperPort combines the efficiency of document management, the convenience of superbly scanned documents and the power of creating PDF files, to bring a new level of operational proficiency to your workflow.

Nuance Power PDF
Nuance Power PDF is the smarter PDF software choice for small and large businesses. Combining powerful functionality, superior Microsoft Office support, built-in intelligence, document management system integration and intuitive, ease of use, Nuance Power PDF provides everything you need to create, convert, edit, assemble and securely share PDF files for increased productivity, enhanced collaboration and improved compliance.

What's in the box:

  • Xerox DocuMate 6480 Document Scanner
  • Power Cable
  • USB Cable
  • Power Supply
  • Quick Installation Guide
  • Technical Support Card
  • Driver and Software DVD-ROM
  • Xerox Warranty
