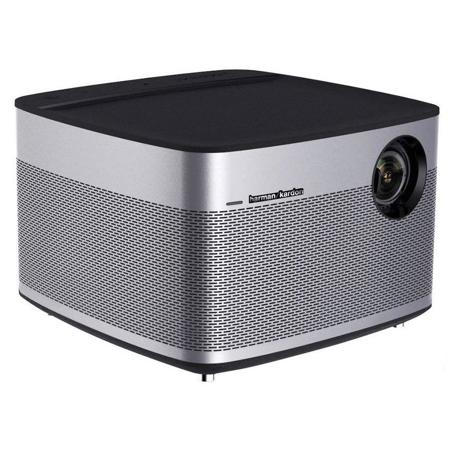

XGIMI H1 Full HD LED Home Projector, 900 Lumens

SKU: XG219957

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

XGIMI H1 Specifications

Optical Parameters

Optical Parameters

Jump to...
  • Display Technique

    0.47" DMD RGB-LED

  • Lens

    High light transmission coated lens

  • Speciality

    3D

  • Luminance (Brightness)

    900 ANSI Lumens

  • Luminance uniformity

    0.98

  • Color gamut

    More than 120%NTSC

  • Contrast

    10000:1

  • Standard resolution

    Full HD (1920x1080)

  • Compatible resolution

    2K / 4K

Projection Parameters

Jump to...
  • Projection ratio

    1.39 - 1.5 :1

  • Optical zoom

    1.1x

  • Off-axis

    1

  • Keystone correction

    Vertical: +/-35 degree, horizontal: +/-30 degree

  • Projection method

    Forward/backward/hang from ceiling

System Parameters

Jump to...
  • CPU

    Mstar 6A928 Cortex-A17 Quadcore 1.7GHz

  • GPU

    Mali-760MP4

  • RAM

    3GB DDR3

  • Storage

    16GB eMMC

  • System

    GUMI base on Android 5.1.1

  • Mirroring Display

    Airplay/DLNA/Miracast

Input / Output

Jump to...
  • Input / Output

    3.5mm speaker jack
    USB 2.0
    USB 3.0
    Optical fiber port
    Ethernet port
    Power jack
    HDMI 1
    HDMI 2/ARC

Electrical Parameters

Jump to...
  • Noise

    Less than 30dB

  • Power dissipation

    80-130W

  • Power

    AC100-240V, 50/60Hz

Connectivity

Jump to...
  • Wi-Fi

    Duo 2.4/5GHz, 802.11a / b / g / n / ac

  • Bluetooth

    4.0 BLE

General

Jump to...
  • Dimensions

    200 x 200 x 128mm (7.87 x 7.87 x 5.04")

  • Weight

    2.1kg (4.63 lbs)

  • UPC Code

    6935670500229

About XGIMI H1

H1 For All

Movies & TV Shows
Stream your favorite movies, TV shows and clips from Netflix, Hulu and YouTube.

Gamers
Connect with your smartphones and consoles to enjoy an enhanced gaming experience.

Music
Stream your music using the harman/kardon duo unit speakers to immerse yourself in the world of your favorite genre.

Business
H1's setup and navigation are effortless, allowing you to focus your full attention on shining in the workplace.

The Pinnacle of True 1080p Projection
Unlike projectors that only support 1080p, H1's native resolution is 1920x1080 which means that it projects in true HD or 2.25x clearer than mainstream 720p projectors.

Top Quality In Every Component

New Gen High Res Lens
True 1080p full res with physical resolution up to 1920x1080.Combined with 900 Ansi Lumens, H1's performance surpassed the precedented model by 50%.

Super High-Accuracy Zoom/Focus
With accuracy at less than 0.06 deg. , dynamoelectric focus make setting up H1 effortless.

Harman/kardon Speaker
Partnered with Harman/Kardon for ebmed speakers that offer superior sound via duo 45mm speaker units.

Vibrating Diaphragms for Enhanced Bass Output
Duo 45mm speaker units' vibrating plates amplify bass for a full, theater-quality sound experience.

Quiet and Long Lasting
Two independent heatsinks - funnel out excess heat.

LED Light Source, Zero Maintenance
Unlike traditional projectors, H1 utilizes a highly efficient LED light source, allowing its projections to stay perfectly crisp, clear and bright for its entire lifespan - up to 10 years, with 8 hours of daily use.

900 Ansi Lumens on 300" Display
Our previous model "Z4 Aurora" is a standout in the However, where Z4 Aurora changed the game, H1 has been born to revolutionize it. H1 utilizes 900 Ansi Lumens that eliminates washed-out colors and pale imagery, even during the day.

Magnificent 300" Display
H1 is customizable for wherever you are. Now you can turn any location into an immersive theater that's easy and portable.

H1 Projects Perfect High-Res 3D Pictures
H1 uses DLP cinema-grade (active shutter 3D imaging) technology to form lifelike 3D pictures on 300" displays and can convert 2D into 3D at the drop of a hat. Say goodbye to your TV and hello to H1.

Optical Zoom Without Compromising Picture Quality
H1 has an optical zoom function and is able to adjust the size of an image without damaging the image quality.

Keystone Correction: H1 Can Be Angled Freely
With its full HD 1080p resolution, high-contrast LED and Keystone correction system, H1 projects a crystal clear 300" screen from almost any angle.

H1 x Harman/Kardon Built-In Harman Kardon Superior Sound Quality
H1's 45mm harman/kardon duo unit speakers has 50% more vibrant volume improvement (compared to the previous model). H1 also has 2 bass-enhancement plates, ensuring the quality of all sounds - treble, midrange and bass - are preserved.

New High-Performance Processor's Speed Will Blow You Away
H1 boasts the brand new Mstar 6A928 TV chip, Cortex A17 structure, Quadcore 1.75GHz CPU, HEVC/H.265 form 60fps ultra HD 4K decoder and 3GB RAM. Its high-quality hardware ensures it will meet all of your video, app and gaming needs.

The H1 Sleek Remote Is Full of Surprise Features
Real aluminum textures make the remote sturdy, while simple commands make the experience of navigating H1 easy and intuitive.

• Bluetooth
• Zoom in/off
• Gravity Sensor
• Cursor
• Lithium Battery

Picture Quality

300" Theater-Grade Experience
H1 uses DLP optical-projecting technology to create a lifelike high-quality movie experience, transforming your home into your very own VIP theater. H1 has 27 certified picture and color enhancement technologies to provide you with extraordinary quality, letting you focus on the content you love.

1080p True High Resolution Reveals Twice as Much Clarity
H1's physical resolution technology allows for 1920 x 1080 true resolution, projecting a massive 300 inch display without sacrificing pixels or details.

Color Management Engine Reveals Vibrant Hollywood Colors
H1 follows color standard DCI-P3 to customize each frame with optimal color tone, recreating the true color tone from every original source.

10000:1 High Dynamic Contrast Adjustment Exposes a More Vivid Color Spectrum
With the new IntelliBright Technology, H1 intelligently adjusts the dark and bright areas of each frame to project the most balanced projection blend.

Just Like Your Own Eyes, H1's Auto-Brightness Feature Seamlessly Adapts to Its Environment
H1's smart contrast function enables it to adjust quickly. Its built-in OPT3001 opto-sensor combined with the IntelliBright algorithm allow it to identify light changes of 0.01 - 83k lux, then automatically adjust brightness and contrast accordingly.

Square Pixel Structure Elevates Image with Details and Clarity
Instead of presenting a common diamond pixel structure, H1's square pixel structure shows full details, making images smoother and more natural - a particularly notable feature for on-screen text.

Full 3D Theater Effect
H1 uses DLP cinema-grade automatic 3D shutter image-forming technology. This feature enables a more lifelike projection of 3D effects.

Customized Stereo System
To create reverberating, theater-quality sound, H1 partnered with harman/kardon to create a customized set of 45mm duo speakers. After conducting extensive sound testing, H1's harmon/kardon speakers produce endlessly vibrant, accurate, beautiful sound, culminating in a superb audio-visual experience.

Rich, Complexed, Layered Sound: H1 Never Settles for Less
The 45mm harman/kardon duo speaker units provide powerful sound effects, outfitted with extra vibrating plates to enhance bass performance.

High Quality Bluetooth Stereo: Immerse Yourself in the World of Music, Just Like You Would In Concert
H1 is not only a screen less 300" TV - it's is also a set of high-quality Bluetooth speakers. Connect your smartphone, iPad, MP3 player or laptop, then close your eyes and let the music take you to another world.

Expansive Chamber Design for Deeper and Stronger Sound Performance
H1 uses a wide sound chamber design (6x larger than Z4 Aurora) in order to provide more abundant sound, while simultaneously maintaining pure, uninhibited audio quality.

H1 Elevates Your Lifestyle
As does its high-quality speaker duo by harman/kardon. Plus, H1 connects easily over Bluetooth or Wi-Fi.

New High-Performance Processor's Speed Will Blow You Away
H1 boasts the brand new Mstar 6A928 TV chip, Cortex A17 structure, Quadcore 1.75GHz CPU, HEVC/H.265 form 60fps ultra HD 4K decoder and 3GB RAM. Its high-quality hardware ensures it will meet all of your video, app and gaming needs.

Horizontal keystone correction
H1 has a horizontal keystone correction function - a feature usually adopted only by very expensive projectors. This means that even if it is placed on the bedside, H1 will project an optimal image.

Vertical keystone correction
H1 also has vertical keystone correction, ensuring its projection will stay crisp, clean and beautiful - even when you move the H1 itself out of the way.

H1 isn't just a screen less 300" TV, it's a high performance gaming console
H1 possesses powerful computing and graphic-processing abilities. Streaming high-res videos is a piece of cake. Between its Quad-core CPU and 3GM RAM, you'll be surprised by how much entertainment H1 will provide.

Double Heatsink System
Two independent heatsinks - designed to be both quiet and long-lasting - funnel out excess heat.

Inputs That Fit All of Your Needs
USB 3.0 ports with trespassing speed up to 5Gbps while playing content out of plug-in hard drive. Runs smooth even with 100Mbit/s 4K content. H1 builds in an HDMI 2.0 port with 18Gbps broadband transmission, all while supporting 60FPS 4K visuals. That means you can play XBOX, PS4 or other game consoles on the H1 via HDMI 2.0 - without lags, skips or pauses.

XGIMI H1 Features

  • True 1080p with 4K support from energy-efficient LED light source
  • High-quality Bluetooth/Wi-Fi 45mm Harman/Kardon Hi-Fi speakers
  • 900 Ansi Lumens for a bright, vibrant viewing experience
  • Quad-core 1.75GHz CPU with 3GB RAM enables smooth, seamless operation
  • Allows for massive projections (up to 300") without sacrificing visual quality
  • Optical lens supports 3D video and perfectly turns 2D file sources to 3D (no extra work needed)
  • Long life time
  • TI DLP
  • Keystone
  • Mirroring display with PC and Smartphone
  • Smartphone control
  • Bluetooth remote control

What's in the box:

  • XGIMI H1 Full HD LED Home Projector
  • Bluetooth Remote Control
  • AC/DC Adapter
  • Power Cable
  • Remote Control USB Charge Cable
  • Lens Reset Pin
  • Changeover Plug
  • XGIMI 1 Year Warranty
