X-Keys USB Twelve-Switch Interface with Black, Red, Green and Yellow Commercial Foot Switches

SKU: XK12BRGYBU MFR: XK-12-BRGY-BU
Earn VIP Reward Points

Key Features

  • Enhance your workflow with this USB switch interface, offering versatile compatibility.
  • Control software, multimedia, and more using the X-Keys foot switches for hands-free operation.
  • Enjoy reliable connectivity with a wired USB interface, ensuring seamless integration.
  • Customize commands with programmable keys, supporting HID keyboard, mouse, & game controller.
  • Durable build with powder-coated aluminum foot switches, guaranteed for over 1 million clicks.
  • Simplify complex tasks using real-time control with customizable, commercial foot switches.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$24.99

2 Year

$34.99

3 Year

$49.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

X-Keys USB Switch Interface Kit Specifications

USB Switch Interface

USB Switch Interface

Jump to...
  • Operating System

    Use: Any OS via USB HID
    Programming: Windows XP through 10, Mac OS X 10.4 through 10.10

  • Free Programming Software

    Windows: MacroWorks 3.1
    Mac: ControllerMate for X-keys
    Android: X-keys Android

  • Free Software Development Kits

    Windows (C++, C#, VB.NET)
    Linux (C++)
    Android (Java)
    Raw HID (any language/OS)

  • USB Codes Supported

    HID keyboard, HID mouse, HID game controller, HID multimedia

  • Port Types

    3.5mm stereo (accepts 3.5mm mono or stereo plug)

  • Number of Ports

    6 ports (split to 12 with optional Y cords)

  • Optional Accessories

    Wired switches, Y cords, or USB Extender

  • Connector

    Wired USB 3.0 standard "A" plug

  • Cord Length

    118" (3m)

  • Wiring Distance

    Up to 1,000' (300m) from switch to port

  • Mounting

    Two 0.19" DIA mounting holes, 3" O.C. (4.8mm DIA, 76mm O.C.)

  • USB Type

    USB 1.1 compatible through 3.0 Type-c with adapter

  • Power Source

    USB port, nominal voltage = 5 VDC

  • Power Consumption

    31 mA at 5 VDC

  • Temperature Range

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Memory Capacity

    Approximately 1,000 keystrokes or commands in onboard memory

  • Memory Type

    EEPROM, non-volatile memory (X-keys retains memory for over 200 years)

  • Environmental Rating

    IP 40, typical indoor office environment

  • Certifications

    FCC class B, CE, RoHS, WEEE compliant

Foot Switch

Jump to...
  • Switch Type

    Microswitch with audible click, guaranteed for over 1 million operations

  • Finish

    Powder coated cast aluminum

  • Actuation Force

    Approx. 3.5 lbs (1.6kg) depending on distance from hinge

  • Connector

    Wired standard 3.5mm (1/8") mono plug

  • Cord Length

    114" (2.9m)

  • Voltage

    Less than 30 volts

  • Current

    Less than 1 Amp

General

Jump to...
  • Dimensions

    USB Switch Interface: 2.55 x 2.55 x 1.01" (6.48 x 6.48 x 2.57cm)
    Foot Switch: Approx. 6.3 x 2.9 x 2.1" (16.00 x 7.37 x 5.33cm)

  • Weight

    USB Switch Interface: 6 oz (170.10g)
    Foot Switch: 1.5 lbs (0.68kg)

About X-Keys USB Switch Interface Kit

From streamlining your workflow to enhancing your productivity, the USB Twelve-Switch Interface with Black, Red, Green, and Yellow Commercial Foot Switches is a game-changer. This bundle includes a USB 12 Switch Interface and four commercial-grade foot switches, each in a distinct color - black, red, green, and yellow.

The foot switches are designed with a front hinge, allowing your foot to rest on the pedal without unintentionally activating it. A slight increase in pressure triggers the switch, confirmed by an audible click, providing a seamless user experience.

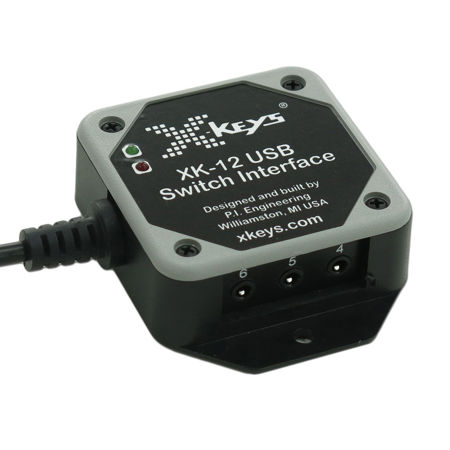

The heart of this bundle, the X-keys USB 12 Switch Interface, is equipped with six stereo ports. These can be split to accommodate up to twelve switches, making it a versatile tool for various applications. It features a built-in mounting flange, ensuring secure positioning via screws or cable ties. The twelve short-to-ground ports facilitate an impressively long distance between the switch and port, offering flexibility in setup.

The interface is compatible with MacroWorks 3 software for Windows and ControllerMate software for Mac OS-X. These platforms provide easy programming coupled with a broad range of flexible options. P.I. Engineering's free SDKs offer direct communication for software developers, and the new reflector feature ensures compatibility with even the most complex software.

The USB 12 Switch Interface can also be configured as a standalone USB keyboard or a compound HID device with macros programmed in onboard non-volatile memory.

The X-keys Commercial Foot Switches, available in four different colors, are rugged and durable, making them ideal for Assistive Technology or industrial applications. They can be customized and assigned based on your needs, perfect for mouse clicks, key presses, or other operations requiring momentary activation.

In essence, the USB Twelve-Switch Interface with Black, Red, Green, and Yellow Commercial Foot Switches is a comprehensive solution designed to optimize your operations and enhance your efficiency.

X-Keys USB Switch Interface Kit Features

  • USB 12-Switch Interface:
  • 6-12 programmable switch ports
  • Accepts standard 3.5mm stereo or mono plug
  • Emulates keyboard, mouse, or game controller
  • Android compatible
  • Free programming software for Windows and Mac
  • Free software development kits for developers
  • Commercial Foot Switch:
  • Perfect for use with the X-keys USB Switch Interface
  • Wired to 3.5mm (1/8") mono plug on 114" (2.9m) ruggedized cord
  • Painted cast aluminum body and guard with built in mounting flange

Key Features

  • Enhance your workflow with this USB switch interface, offering versatile compatibility.
  • Control software, multimedia, and more using the X-Keys foot switches for hands-free operation.
  • Enjoy reliable connectivity with a wired USB interface, ensuring seamless integration.
  • Customize commands with programmable keys, supporting HID keyboard, mouse, & game controller.
  • Durable build with powder-coated aluminum foot switches, guaranteed for over 1 million clicks.
  • Simplify complex tasks using real-time control with customizable, commercial foot switches.

What's in the box:

  • X-Keys USB Twelve-Switch Interface
  • Commercial Foot Switch (Black)
  • Commercial Foot Switch (Yellow)
  • Commercial Foot Switch (Red)
  • Commercial Foot Switch (Green)
  • X-Keys 1 Year Limited Warranty
