X-Keys USB 12-Switch Interface, 2x Gray Industrial Foot Switches without Guard
See all X-Keys items

X-Keys USB Twelve-Switch Interface with 2x Gray Industrial Foot Switches without Guard

SKU: XK12NG2BU
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

X-Keys USB Switch Interface Kit Specifications

USB Switch Interface

USB Switch Interface

Jump to...

  • Operating System

    Use: Any OS via USB HID
    Programming: Windows XP through 10, Mac OS X 10.4 through 10.10

  • Free Programming Software

    Windows: MacroWorks 3.1
    Mac: ControllerMate for X-keys
    Android: X-keys Android

  • Free Software Development Kits

    Windows (C++, C#, VB.NET)
    Linux (C++)
    Android (Java)
    Raw HID (any language/OS)

  • USB Codes Supported

    HID keyboard, HID mouse, HID game controller, HID multimedia

  • Port Types

    3.5mm stereo (accepts 3.5mm mono or stereo plug)

  • Number of Ports

    6 ports (split to 12 with optional Y cords)

  • Optional Accessories

    Wired switches, Y cords, or USB Extender

  • Connector

    Wired USB 3.0 standard "A" plug

  • Cord Length

    118" (3m)

  • Wiring Distance

    Up to 1,000' (300m) from switch to port

  • Mounting

    Two 0.19" DIA mounting holes, 3" O.C. (4.8mm DIA, 76mm O.C.)

  • USB Type

    USB 1.1 compatible through 3.0 Type-c with adapter

  • Power Source

    USB port, nominal voltage = 5 VDC

  • Power Consumption

    31 mA at 5 VDC

  • Temperature Range

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Memory Capacity

    Approximately 1,000 keystrokes or commands in onboard memory

  • Memory Type

    EEPROM, non-volatile memory (X-keys retains memory for over 200 years)

  • Environmental Rating

    IP 40, typical indoor office environment

  • Certifications

    FCC class B, CE, RoHS, WEEE compliant

Foot Switch

Jump to...

  • Switch Type

    Microswitch with audible click, guaranteed for over 1 million operations

  • Finish

    Painted cast aluminum

  • Actuation Force

    Approx. 3.5 lbs (1.6kg) depending on distance from hinge

  • Connector

    Wired standard 3.5mm (1/8") mono plug

  • Cord Length

    114" (2.9m)

  • Voltage

    Less than 30 volts

  • Current

    Less than 1 Amp

General

Jump to...

  • Dimensions

    USB Switch Interface: 2.55 x 2.55 x 1.01" (6.48 x 6.48 x 2.57cm)
    Foot Switch: Approx. 6.3 x 2.9 x 2.1" (16.00 x 7.37 x 5.33cm)

  • Weight

    USB Switch Interface: 6 oz (170.10g)
    Foot Switch: 1.5 lbs (0.68kg)

About X-Keys USB Switch Interface Kit

Get the USB 12 Switch Interface bundled with two Industrial Foot Switches with no guard.

- USB 12 Switch Interface -
The X-keys USB 12 Switch Interface features six stereo ports which can be split to accommodate up to twelve switches. A built in mounting flange accepts screws or cable ties to secure the switch interface in position. The twelve short-to-ground ports allow an extremely long distance between the switch and port.

MacroWorks 3 software for Windows and ControllerMate software for Mac OS-X combine ease of programming with a wide and flexible range of options. P.I. Engineering's free SDKs offer direct communication for the software developer and our new reflector feature sends messages to even the most reluctant software. The USB 12 Switch Interface may also be configured as a standalone USB keyboard or compound HID device with macros programmed in onboard non-volatile memory.

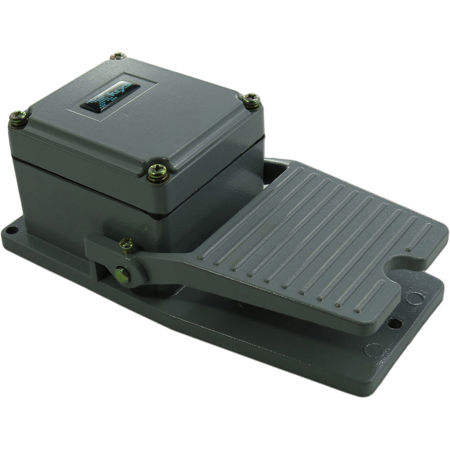

- Industrial Foot Switch -
The X-keys Industrial Foot Switches offer a rugged foot switch to work with our X-keys USB Switch Interface. The three different styles allow you to customize based on your needs and the rugged design is perfect for Assistive Technology or industrial applications. This is perfect for mouse click, key press or other operations where a momentary activation is required.

X-Keys USB Switch Interface Kit Features

  • USB 12-Switch Interface:
  • 6-12 programmable switch ports
  • Accepts standard 3.5mm stereo or mono plug
  • Emulates keyboard, mouse, or game controller
  • Android compatible
  • Free programming software for Windows and Mac
  • Free software development kits for developers
  • Industrial Foot Switch:
  • Full guard, top guard and open versions for industrial applications
  • Perfect for use with the X-keys USB Switch Interface
  • Painted cast aluminum body and guard with built in mounting flange
  • Wired to 3.5mm (1/8") mono plug on 114" (2.9m) ruggedized cord

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • X-Keys USB Twelve-Switch Interface
  • 2x Gray Industrial Foot Switches without Guard
  • X-Keys 1 Year Limited Warranty
