X-Keys USB Three-Switch Interface with Yellow Commercial Foot Switch

SKU: XK1309CFYLBU MFR: XK-1309-CFYL-BU
$103.90
Earn VIP Reward Points

Key Features

  • Enhance your workflow with this X-Keys USB interface, offering reliable connectivity.
  • Use the commercial foot switch for hands-free control in live production environments.
  • Enjoy versatile compatibility across Windows, Mac, and Linux with our USB switch.
  • Customize commands with free programming software, perfect for multimedia mixers.
  • Experience low latency and high video quality with direct USB HID support.
  • Trust in the strong security and durable design of this X-Keys USB three-switch.
See More Product Details
Special Order?Estimated to Ship: 09/14/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$9.99

2 Year

$14.99

3 Year

$23.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

X-Keys USB Switch Interface Kit Specifications

USB Switch Interface

USB Switch Interface

Jump to...
  • Operating System

    Use: Any OS via USB HID
    Programming: Windows XP through 10, Mac OS X 10.4 through 10.10

  • Free Programming Software

    Windows: MacroWorks 3.1
    Mac: ControllerMate for X-keys

  • Free Software Development Kits

    Windows (C++, C#, VB.NET)
    Linux (C++)
    Android (Java)
    Raw HID (any language/OS)

  • USB Codes Supported

    HID keyboard, HID mouse, HID game controller, HID multimedia

  • Port Types

    3.5mm TRRS (Tip-Ring-Ring-Sleeve) accepts 3.5mm mono, stereo, or TRRS plug

  • Number of Ports

    1 port (may be split to accept up to three switches)

  • Optional Accessories

    Wired switches, Y cords, or USB Extender

  • Connector

    Wired USB 3.0 standard "A" plug

  • Wiring Distance

    Up to 1,000' (300m) from switch to port

  • USB Type

    USB 1.1 compatible through 3.0 Type-c with adapter

  • Power Source

    USB port, nominal voltage = 5 VDC

  • Power Consumption

    21 mA at 5 VDC

  • Temperature Range

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Memory Capacity

    Approximately 1,000 keystrokes or commands in onboard memory

  • Memory Type

    EEPROM, non-volatile memory (X-keys retains memory for over 200 years)

  • Environmental Rating

    IP 40, typical indoor office environment

  • Certifications

    FCC class B, CE, RoHS, WEEE compliant

Foot Switch

Jump to...
  • Switch Type

    Microswitch with audible click, guaranteed for over 1 million operations

  • Finish

    Powder coated cast aluminum

  • Actuation Force

    Approx. 3.5 lbs (1.6kg) depending on distance from hinge

  • Connector

    Wired standard 3.5mm (1/8") mono plug

  • Cord Length

    114" (2.9m)

  • Voltage

    Less than 30 volts

  • Current

    Less than 1 Amp

General

Jump to...
  • Dimensions

    USB Switch Interface: 2.8 x 0.75 x 0.5" (7.11 x 1.91 x 1.27cm)
    Foot Switch: Approx. 6.3 x 2.9 x 2.1" (16.00 x 7.37 x 5.33cm)

  • Weight

    USB Switch Interface: 0.8 oz (22.68g)
    Foot Switch: 1.5 lbs (0.68kg)

About X-Keys USB Switch Interface Kit

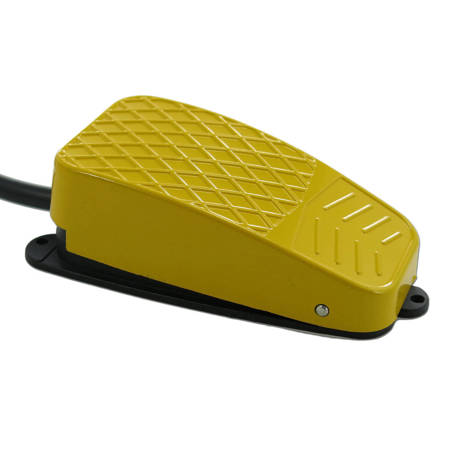

Just imagine the convenience of hands-free operation with the USB Three-Switch Interface bundled with a Yellow Commercial Foot Switch. This commercial-grade foot switch is designed with a front hinge, allowing your foot to rest on the pedal without unintentionally activating it. A slight increase in pressure triggers the switch, confirmed by an audible click, providing a seamless user experience.

The X-keys USB 3 Switch Interface, a key component of this bundle, boasts three dual switch ports in a compact, low-profile design. This innovative device effortlessly transforms any switch closure into a keyboard, multimedia, or mouse command. It's perfect for launching applications, opening files, or typing short lines of text like names, addresses, and account numbers.

The switches are connected using the Assistive Technology standard 3.5mm (1/8") phone plugs. The MacroWorks 3 software for Windows and ControllerMate software for Mac OS-X are included, combining ease of programming with a wide and flexible range of options. P.I. Engineering's free SDKs offer direct communication for software developers, and the new reflector feature sends messages to even the most reluctant software.

The USB 3 Switch Interface can also be configured as a standalone USB keyboard or compound HID device with macros programmed in onboard non-volatile memory.

The X-keys Commercial Foot Switch, available in four different colors, offers a rugged foot switch compatible with the X-keys USB Switch Interface. Its robust design makes it ideal for Assistive Technology or industrial applications. This foot switch is perfect for mouse clicks, key presses, or other operations requiring momentary activation.

Experience the power of hands-free control with the USB Three-Switch Interface and Yellow Commercial Foot Switch.

X-Keys USB Switch Interface Kit Features

  • USB 3-Switch Interface:
  • 3 dual switch ports
  • Connect to the USB port just like a USB keyboard
  • Standard 3.5mm audio type switch ports
  • Android compatible
  • Free programming software for Windows and Mac
  • Free software development kits for developers
  • Commercial Foot Switch:
  • Perfect for use with the X-keys USB Switch Interface
  • Wired to 3.5mm (1/8") mono plug on 114" (2.9m) ruggedized cord
  • Painted cast aluminum body and guard with built in mounting flange

Key Features

  • Enhance your workflow with this X-Keys USB interface, offering reliable connectivity.
  • Use the commercial foot switch for hands-free control in live production environments.
  • Enjoy versatile compatibility across Windows, Mac, and Linux with our USB switch.
  • Customize commands with free programming software, perfect for multimedia mixers.
  • Experience low latency and high video quality with direct USB HID support.
  • Trust in the strong security and durable design of this X-Keys USB three-switch.

What's in the box:

  • X-Keys USB Three-Switch Interface
  • Commercial Foot Switch (Yellow)
  • X-Keys 1 Year Limited Warranty
