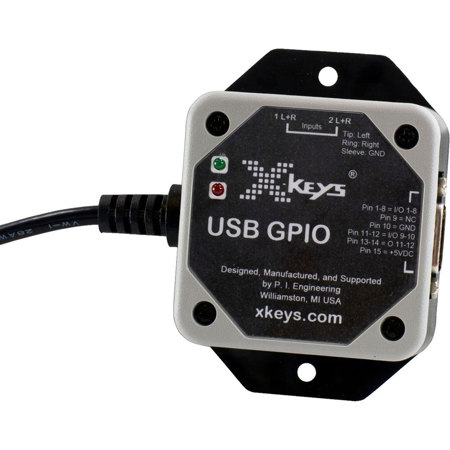

X-Keys USB GPIO (General Purpose Input Output) Unit

Enhance your technological capabilities with the X-keys USB GPIO (General Purpose Input Output) unit, a versatile device designed to streamline your digital interactions. This unit is equipped with 10 configurable ports, each capable of functioning as 5-volt outputs, short-to-ground inputs, or 5-volt pull-down inputs, offering you a wide range of connectivity options.

In addition to these configurable ports, this USB GPIO unit also boasts two dedicated 5-volt outputs and four dedicated short-to-ground inputs, further expanding its functionality. These features are designed to provide you with a comprehensive solution for your electronic needs.

The ten configurable ports can be easily set using a free Windows utility, which we provide via a convenient download link. This utility allows you to program all inputs, enabling them to send a diverse array of USB keyboard, mouse, game controller, multimedia, and other proprietary USB HID messages.

Moreover, all outputs can be triggered via USB HID, with support provided by our free SDKs for various operating systems, including Windows, OS X, Linux, and Android. This ensures that the X-keys USB GPIO unit is compatible with a wide range of devices and platforms.

For reliable and secure connections, this unit features a standard HD15 male connector that links to all configurable I/O ports and dedicated outputs. Additionally, it includes two 3.5mm TRS (Tip-Ring-Sleeve, also known as Stereo) ports that connect to the four dedicated short-to-ground inputs. These ports facilitate the addition of external switches, making this unit a comprehensive solution for your digital connectivity needs.

In summary, the X-keys USB GPIO unit is a versatile and comprehensive device, designed to enhance your digital interactions and provide a wide range of connectivity options.
