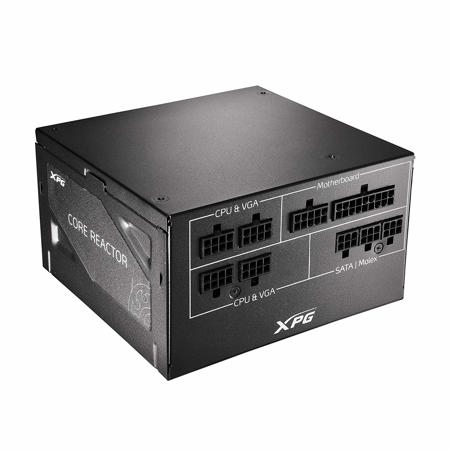

XPG Core Reactor 850W Fully Modular Power Supply, 80 Plus Gold Certified
See all XPG items

XPG Core Reactor 850W Fully Modular Power Supply, 80 Plus Gold Certified

SKU: XPGC850GBKCS
(2)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2020-06-16T20:29:28

Rated 5 out of 5

True to advertisement

Excellent, works as expected.

PANAMALAI G.

2020-06-08T09:15:45

Rated 5 out of 5

XPG has something good here.

Did my research before buying, and i am really pleased with it. This power supply works flawlessly and power is stable. 12v rail is a little loose compared to others but well within ranges. Have had it for over a month now running a GTX1660 and a bunch of RGB on my case. No problems at all. 10 year warranty , just cant beat that. I would recommend this PSU.

SCOTT M.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

XPG CORE Reactor Specifications

  • 80 PLUS Rating

    GOLD

  • ATX Version

    Intel 1.42

  • Protections

    OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP

  • Certification

    CB / TUV / cTUVus / CCC / CE / FCC / BSMI / RCM / EAC

  • PFC

    0.99

  • Input Voltage

    100V-240V

  • Input Current

    10A-5A

  • Input Frequency

    47Hz-63Hz

  • Operating Temperature

    122 Degree F (50 Degree C)

  • Fan Size

    4.72" (12cm)

  • Fan Bearing

    FDB

  • Fan Speed

    2400

  • Noise Level

    @ 20%: 11.2dB(A)
    @ 50%: 11.3dB(A)
    @ 100%: 24.7dB(A)

  • MTBF

    100K hours at full load

  • ATX 24 Pin Connector

    1

  • EPS 4+4 Pin Connector

    2

  • EPS 8 Pin Connector

    NA

  • SATA Connector

    12

  • Peripheral 4 Pin Connector

    4

  • PCI-e e 6 2 Pin Connector

    6

About XPG CORE Reactor

FEATURED REVIEWS

True to advertisement

By PANAMALAI G.

Excellent, works as expected.

XPG has something good here.

By SCOTT M.

Did my research before buying, and i am really pleased with it. This power supply works flawlessly and power is stable. 12v rail is a little loose compared to others but well within ranges. Have had it for over a month now running a GTX1660 and a bunch of RGB on my case. No problems at all. 10 year warranty , just cant beat that. I would recommend this PSU.

Build Up Your Core

The XPG CORE Reactor is a modular, 80 Plus Gold power supply unit equipped with 100% Japanese capacitors. Combined with Line Level Control (LLC) resonant topology, it is power-efficient, reliable and makes creating a tidy build easy.

80 Plus Gold Certified
The 80 Plus Gold certified XPG CORE Reactor gives you 90% efficiency at 50% load. It comes in 650W, 750W, and 850W for different needs.

Intelligent Fan-Curve
Intelligent fan-curve provides near-quiet operations, even when at full power load. The fan control starts at a low 3.3v, 660rpm +/- 10%, and remains at this speed until surpassing 50% load, prolonging the lifespan of the fan and the power supply unit.

Compact and Modular
The XPG CORE Reactor is compact in size due to the combination of high-quality components, a well-thought-out layout, and a new manufacturing process. What's more, its modular design reduces cable clutter and simplifies system building.

Premium Japanese Capacitators
Equipped with All 105 Degree C Japanese capacitors, the XPG CORE REACTOR provides you with reliability and stability. The XPG CORE Reactor's DC voltage is maintained within +/-2% and reduces ripple and noise by up to 35% for enhanced dependability.

Industrial-Grade Protection
The XPG CORE Reactor comes with an array of protection mechanisms for peace of mind.

Over Current Protection (OCP)
Over Voltage Protection (OVP)
Under Voltage Protection (UVP)
Over Power Protection (OPP)
Short Circuit Protection (SCP)
Over Temperature Protection (OTP)
No Load Operation (NLO)
Surge & Inrush Protection (SIP)

XPG CORE Reactor Features

  • 80 Plus Gold Certified
  • Compact with Modular Design
  • Intelligent, Low-Noise Fan-Curve
  • Premium 100% Japanese Capacitors
  • Industrial-Grade Protection

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 80 Plus Gold Certified
  • Compact with Modular Design
  • Intelligent, Low-Noise Fan-Curve
  • Premium 100% Japanese Capacitors
  • Industrial-Grade Protection

What's in the box:

  • Core Reactor 850W Fully Modular Power Supply
  • XPG 10 Year Limited Warranty
