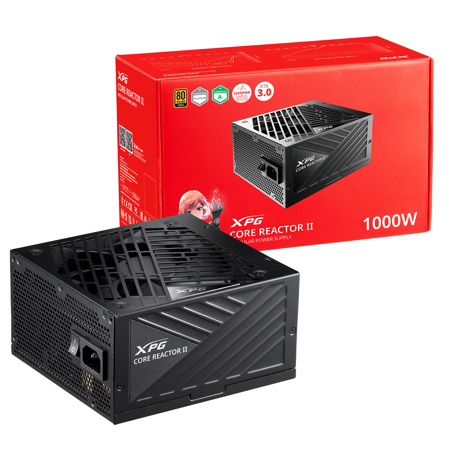

XPG Core Reactor II 1000W 80+ Gold Certified Full Modular ATX 3.1 Power Supply Unit, Black

SKU: XPGCR2II1KG MFR: COREREACTORII1000G BK C U
Earn VIP Reward Points

Key Features

  • Experience stable, efficient power delivery with 1000W 80+ Gold certified performance.
  • Future-proof your rig with ATX 3.1 PSU support, ready for next-gen components.
  • Enjoy a tidy build and improved airflow thanks to fully modular cables for easy management.
  • Rely on robust protections (OCP, OVP, OPP) ensuring your valuable PC components stay safe.
  • Benefit from a quiet computing experience with the 135mm FDB fan, even under load.
  • Trust in XPG's quality with a power supply built for long-term reliability and peak performance.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

XPG Core Reactor II Specifications

  • Color

    Black

  • Watts

    1000W

  • Cybenetics Rating

    PLATINUM

  • 80 Plus Rating

    GOLD

  • ATX Version

    ATX 3.1

  • Protections

    OCP, OVP, OPP, OTP, UVP, SCP, NLO, SIP

  • Certification

    CE, CB, FCC(IC), TUV, cTUVus, TUV S-Mark, NOM, BSMI, UKCA, EAC, CCC, RCM

  • PFC

    > 0.99

  • Input Voltage

    100-240V

  • Input Current

    13A

  • Input Frequency

    650/750/850/1000/1200W:47Hz-63Hz

  • DC Output Voltage

    +5V, +3.3V, +12V, -12V, +5Vsb

  • Total Output

    +5V/+3.3V :22A, +12V:83.5A, -12V:0.3A, +5Vsb:3A

  • Power Excursion

    2350W (up to 235% of the PSU's rated power for 100micros)

  • Operating Temperature

    122 Degree F (50 Degree C)

  • Fan Size

    135mm FDB Fan

  • Fan Bearing

    FDB (Fluid Dynamic Bearing)

  • Fan Speed

    2400 RPM

  • MTBF

    100K hours at full load

  • ATX 24 Pin Connector

    1x

  • EPS 8 Pin Connector

    2x

  • PCI-E 6+2 Pin Connector

    8x

  • Molex 4 Pin Connector

    3x

  • 12V-2x6 (12+4) Connector (600W)

    1x

  • Country of Origin

    Vietnam

  • Dimensions (L x W x H)

    6.3 x 5.9 x 3.4" (160 x 150 x 86mm)

  • Weight

    3.9 lbs (1.77kg)
    Cables: 2.8 lbs (1.28kg)

  • UPC Code

    842243029420

About XPG Core Reactor II

Improve Your Core, Enhance Your Performance
CORE REACTOR II is a top-performing power supply unit designed for ATX 3.1 compliance with a modular cable design and an 80 PLUS GOLD certification. These power supplies thrive in high-performance scenarios like servers or workstation setups, where a lot of power is needed.

Next-Gen Ready - ATX 3.1 COMPLIANT
CORE REACTOR II series power supply units meet Intel ATX 3.1 design guide specifications and feature a 12V-2x6 connector. By upgrading to an ATX 3.1-compliant power supply, you'll be fully equipped for the upcoming wave of high-performance components. A must for the modern gamer, creator, or AI developer. Stay ahead of the curve by upgrading to an ATX 3.1 PSU, the new standard in PC hardware.

Certified GOLD Efficiency
CORE REACTOR II units received 80 PLUS GOLD certifications for efficiency, achieving up to 91.40% (115V) efficiency at 50% load. It comes in 1000W model for varying user needs and scenarios. It's the perfect PSU for mid-to-high level components, including the latest CPUs and GPUs.

Intelligent Fan-Curve Design
The intelligent fan curve ensures quiet operation, even under full power load. By starting the fan at a low RPM, fan performance is both enhanced and extended, thereby increasing the power supply unit's lifespan.

Premium all 105 Degree C Japanese Capacitors
CORE REACTOR II features top-tier 105 Degree C Japanese capacitors, ensuring exceptional stability and reliability of the PSU for many years of dependable performance.

Peak Performance And Reliability
All XPG ATX 3.1 power supplies are designed to support up to 235% power excursion, enabling the system to handle sudden power spikes, ensuring stability, and preventing crashes during intense workloads like gaming, rendering, and data processing.

XPG Core Reactor II Features

  • Intel ATX 3.1 Design Guide Compliant with a 12V-2x6 (12+4) Connector
  • PLATINUM efficiency certified by Cybenetics
  • Certified GOLD efficiency by 80 PLUS
  • 100% Japanese 105 Degree C Capacitors for stability and reliability

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Experience stable, efficient power delivery with 1000W 80+ Gold certified performance.
  • Future-proof your rig with ATX 3.1 PSU support, ready for next-gen components.
  • Enjoy a tidy build and improved airflow thanks to fully modular cables for easy management.
  • Rely on robust protections (OCP, OVP, OPP) ensuring your valuable PC components stay safe.
  • Benefit from a quiet computing experience with the 135mm FDB fan, even under load.
  • Trust in XPG's quality with a power supply built for long-term reliability and peak performance.

What's in the box:

  • XPG Core Reactor II 1000W 80+ Gold Certified Full Modular ATX 3.1 Power Supply Unit (Black)
  • DC Modular Cable Pack
  • AC Power Cord
  • DC Modular Cable Storage Bag
  • Mounting Hardware
  • User Manual
  • XPG 10 Year Limited Warranty
