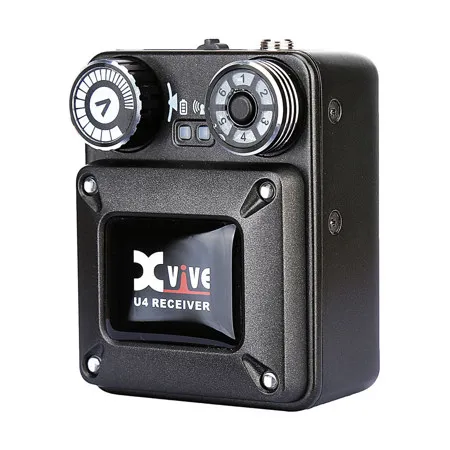

XVIVE U4R 2.4GHz Wireless Receiver for U4 In-Ear Monitor System

SKU: XVU4R MFR: U4R
$139.99
Earn VIP Reward Points

What`s in the box:

  • XVIVE U4R 2.4GHz Wireless Receiver
  • XVIVE 1 Year Limited Warranty
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

XVIVE U4R Specifications

System
  • Tuning Bandwidth

    2400 - 2483.5 MHz

  • Working Range

    Up to 90' (27.43m) Actual range depends on RF signal absorption, reflection and interference

  • Audio Frequency Response

    20Hz - 20KHz (-3dB)

  • Dynamic Range & Signal-To-Noise Ratio

    107 dB

  • Battery Life

    5 Hours of battery life

  • RF Sensitivity

    -88dBm

  • Total Harmonic distortion

    0.2%

  • RF Output Power

    10 mW E.I.R.P. max

  • Operating Temperature Range

    -0.4 to 134.6 Degree F (-18 to 57 Degree C). Battery Characteristics May Limit This Range.

  • Channel Count

    Up to 6 Channels

  • Latency

    Less than 5ms Latency

  • High Resolution audio

    24-bit/48Kbps

Receiver

Jump to...
  • Color

    Black

  • Material

    Molded plastic and cast metal

  • Battery

    3.7V Rechargeable Li-ion, 1200mAh

  • Impedance

    6-600 Ohm

  • Audio output Connector

    3.5mm stereo output

  • Battery life

    Up to 5 Hours

  • Antennal Impedance

    50 Ohm

  • Antenna Type

    1/4 Wave Sleeve Dipole, Non-removable

  • Number Of Antenna

    2

  • Dimensions

    2.36 x 1.85 x 1.61" (60 x 47 x 41mm)

  • Weight

    4.16 oz (118g)

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • UPC Code

    6943050418620

About XVIVE U4R

Discover the freedom of wireless-live, at home or in the studio-and roam free with your favorite earbuds, headphones or in-ear monitors!

Loud and clear
The U4 system features high-resolution, 24-bit / 48 kHz audio, with a very wide and smooth frequency response between 20 Hz and 20 kHz, a signal-to-noise ratio of 107 decibels, and more volume than you'll ever need. The sound is better than CD quality, and much, much better than MP3 quality!

Long, easy charge
The internal battery in the receiver lasts for 5 hours. The battery is easily charged using the included USB cable and any standard 5V USB charger, and charging takes between 1.5 and 2.5 hours depending on the current of the charger being used.

Applications
The basic application is to run a monitor mix from a soundboard, wirelessly, to one set of headphones or in-ear monitors-live, at home or in the studio. But there's a lot more you can do with the U4 System!

Direct communication
If you have more than one U4 receiver, you can broadcast a signal to a whole group of people. This can be useful in situations where one person needs to communicate clearly and directly to a group-either in noisy environments or in situations where you don't want to disturb others. This makes it an excellent option for things like group demos, presentations or tours.

Free and easy recording
For recording musicians, whether in a home or professional studio, going wireless makes the whole process so much freer and easier-especially if you're playing or singing AND engineering at the same time!

Discreet practice
If you want to practice guitar or bass privately-for example late at night-you can run your signal through a multi-effect unit or modeling amp, send either the 1/4" or XLR output to your headphones or earphones, and move freely around your home!

Band on the run
Your whole band-up to six musicians-can use the system together! There can be one monitor mix per transmitter (sold separately), so if you have multiple U4 sets, you can customize monitor mixes for each band member. This is an easy, great-sounding and cost-effective monitoring solution for studio recording, rehearsals or live gigs. In rehearsal, this also means that there's no need for PA speakers-so a band can practice in an apartment, or late at night.

XVIVE U4R Features

  • Add U4R receivers to a U4 system to connect to more people
  • High-quality, ultra-compact wireless system for in-ear monitors
  • Audiophile 24-bit / 48 kHz sound with less than 5 ms of latency
  • Industry standard 2.4GHz wireless technology
  • Reliable, solid RF connection over a range of 90'

Warranty Information

This product has a limited warranty of 12 months.

What's in the box:

  • XVIVE U4R 2.4GHz Wireless Receiver
  • XVIVE 1 Year Limited Warranty
