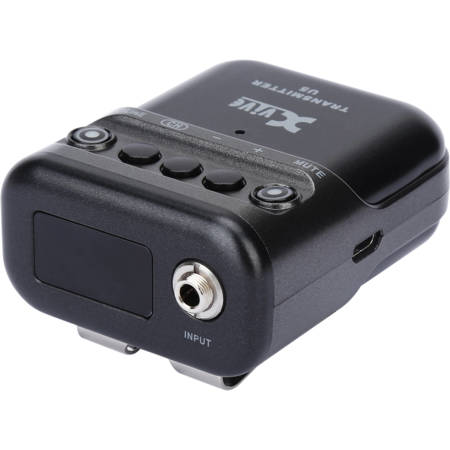

XVIVE U5T Digital Wireless Bodypack Transmitter, 2400-2483.5MHz
See all XVIVE items

XVIVE U5T Digital Wireless Bodypack Transmitter, 2400-2483.5MHz

SKU: XVU5T
Be the first to review this item

This item is no longer available.

Recommended Alternatives

XVIVE U2: Picture 1 regular
XVIVE U2 2.4GHz Electric Guitar Wireless System, 3-Tone Sunburst
$154.90
XVIVE U2: Picture 1 regular
XVIVE U2 2.4GHz Guitar Wireless System, 1/4" Transmitter & Receiver, Black
$154.90
XVIVE U2: Picture 1 regular
XVIVE U2 2.4GHz Guitar Wireless System, 1/4" Transmitter & Receiver, Carbon
$154.90
XVIVE U2: Picture 1 regular
XVIVE U2 2.4GHz Electric Guitar Wireless System, Gold
$149.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the frequency range of the U5T Digital Wireless Bodypack Transmitter?

The U5T Digital Wireless Bodypack Transmitter operates in the 2400-2483.5MHz frequency range.

How many audio sources can the U5T2 set transmit at once?

The U5T2 set, which includes two beltpack transmitters and two lavalier microphones, can transmit signals from two separate audio sources simultaneously.

What type of battery does the U5T Digital Wireless Bodypack Transmitter use?

The U5T Digital Wireless Bodypack Transmitter is powered by the proprietary Xvive U5B lithium-ion battery.

Can the U5 system transmit to more than one device?

Yes, with the addition of an extra U5 receiver (U5R), you can send your audio signal to two DSLR cameras or audio devices simultaneously.

What is the purpose of the U5C battery charger?

The U5C battery charger is used to charge backup batteries for the U5T Digital Wireless Bodypack Transmitter, ensuring uninterrupted operation of the system.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

XVIVE U5T Specifications

  • Wireless Transmission

    Digital 2.4 GHz

  • RF Frequency Band

    2400 to 2483.5 MHz

  • RF Channel Scanning

    Auto-Scan

  • Max Operating Range

    100' (30.5m) (Line of Sight)

  • Latency

    <6 ms

  • Encryption

    None

  • Form Factor

    Bodypack

  • RF Output Power

    10 mW (EIRP)

  • Audio I/O

    1x 1/8" (3.5mm) TRS Female Input (Lockable)

  • Included Cable Connector

    None

  • Plug-In Power

    5 V

  • Muting

    Mute Switch

  • Audio Input Level

    0.46 to 2 V RMS (at 0 dB Gain)

  • Auto-Level Control

    No

  • Gain Range

    -6 to +12 dB

  • Signal Processing

    High-Pass Filter: 100 Hz

  • Frequency Response

    20 Hz to 20 kHz

  • Sync Method

    Proprietary

  • Antenna

    1x 1/4 Wave Internal

  • Power Requirements

    Battery

  • Battery Type

    1x Rechargeable (Included, Replaceable)

  • Internal Battery Capacity

    860 mAh

  • Battery Charging Time

    2.5 Hours

  • Approx. Battery Life

    5 Hours (Lithium Rechargeable)

  • USB/Lightning Connectivity

    Micro-USB (Charging)

  • Display & Indicators

    1x OLED (Audio Level, Battery Status, Channel, Mute, Peak)

  • Housing

    Metal, Plastic

  • Operating Temperature

    0 to 134 Degree F (-18 to 57 Degree C)

  • Dimensions

    2 x 1.3 x 2.6" (51 x 34 x 65mm)

  • Weight

    1.9 oz (55.2g) (without Batteries)

About XVIVE U5T

Explore the advanced capabilities of the U5T Digital Wireless Bodypack Transmitter, operating in the 2400-2483.5MHz frequency range. This innovative audio solution is designed to wirelessly transmit high-resolution audio from the included lavalier microphone to a receiver, which can be seamlessly connected to a DSLR camera or any audio device.

The comprehensive U5T2 set, featuring two beltpack transmitters and two lavalier microphones, offers the flexibility to wirelessly transmit signals from two separate audio sources to a DSLR camera or audio device. This makes it an ideal choice for professional videography, livestreams, interviews, sporting events, weddings, and more.

With the addition of an extra U5 receiver (U5R), you can expand your audio coverage by sending your audio signal to two DSLR cameras or audio devices simultaneously. The U5 receiver's shoe mount is designed to fit any DSLR camera, ensuring universal compatibility and ease of use.

The U5T Digital Wireless Bodypack Transmitter is powered by the proprietary Xvive U5B lithium-ion battery, providing up to 5 hours of continuous operation. For extended use, the U5C battery charger (sold separately with three U5B batteries) allows you to charge backup batteries, ensuring uninterrupted operation of the system.

Experience reliable transmission with the U5 system, designed to transmit high-resolution audio on the 2.4 GHz wireless band. Discover the difference with the U5T Digital Wireless Bodypack Transmitter, a game-changer in wireless audio transmission for video production.

XVIVE U5T Features

  • For U5 Wireless Mic Systems
  • Mic/Line Input for Lavalier Mic or Mixer
  • Gain Control, Mute Button
  • 5-Hour Rechargeable/Replaceable Battery

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this XVIVE digital wireless transmitter bodypack.
  • Enjoy a reliable wireless range up to 100 feet, perfect for dynamic stage performances.
  • The U5T bodypack offers up to 5 hours of battery life, ensuring uninterrupted use.
  • Easy to use with auto-scan feature, this wireless system is ready to go right out of the box.
  • Durable metal housing ensures your wireless transmitter can withstand rigorous use.
  • Lockable 1/8" TRS input on the wireless bodypack keeps your audio secure during use.

What's in the box:

  • XVIVE U5T Digital Wireless Bodypack Transmitter
  • ID799 Rechargeable Lithium-Ion Battery
  • XVIVE 1 Year Limited Warranty
