What is included in the U5T2 Camera-Mount Digital Wireless Microphone System?

The U5T2 set includes two beltpack transmitters and two LV1 lavalier microphones, along with a dual-channel True Diversity U5R receiver. It also comes with a replaceable Xvive U5B lithium-ion battery.

What is the frequency range of the U5T2 system?

The U5T2 system operates on the 2400-2483.5MHz frequency range, utilizing the 2.4 GHz wireless band for reliable transmission of high-resolution audio.

How long can the U5T2 system operate on a single charge?

The replaceable Xvive U5B lithium-ion battery provides up to 5 hours of continuous operation. For extended shooting sessions, you can carry additional charged U5B batteries.

What is the audio quality of the U5T2 system?

The U5 system delivers professional, high-resolution 24-bit / 48 kHz digital wireless audio, ensuring high-quality sound for all your video projects.

Can I control the audio output of the U5T2 system?

Yes, the U5 system features independent control of the left and right channels, allowing for precise adjustment of the output gain for each channel, ranging from -54 dB to +24 dB in 1 dB increments.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

XVIVE U5T2 Specifications

System
  • Wireless Transmission

    Digital 2.4 GHz

  • Included Transmitters

    2x Bodypack with Microphone

  • Diversity

    True Diversity

  • RF Frequency Band

    2400 to 2483.5 MHz

  • RF Channel Scanning

    Auto-Scan

  • Max Operating Range

    100' (30.5m) (Line of Sight)

  • Max Systems per Setup

    6

  • Sample Rate/Resolution

    48 kHz / 24-Bit

  • Latency

    <6 ms

  • Dynamic Range

    99 dB (Mic Input)
    107 dB (Line Input)

  • Encryption

    None

Receiver

Jump to...
  • Form Factor

    Camera-Mount

  • Mounting Options

    Shoe-Mount (with Included Hardware)

  • Antenna

    4x 1/4 Wave Internal, Fixed

  • Number of Audio Channels

    2

  • Audio I/O

    1x 1/8" / 3.5 mm TRS Female Unbalanced Output

  • Gain Range

    -54 to +24 dB

  • Audio Output Level

    0 dBV (Max)

  • Frequency Response

    20 Hz to 20 kHz

  • USB/Lightning Connectivity

    1x Micro-USB (Charging)

  • Impedance

    1/8" (3.5mm) Output: 470 Ohms

  • RF Output Power

    10 mW (EIRP)

  • Power Requirements

    Battery

  • Battery Type

    1x Rechargeable (Included, Replaceable)

  • Internal Battery Capacity

    860 mAh

  • Battery Charging Time

    2.5 Hours

  • Approx. Battery Life

    5 Hours (Lithium Rechargeable)

  • Display & Indicators

    1x OLED (Battery Status, Channel, Output Level, Peak, Transmitter Battery Status)

  • Housing

    Metal, Plastic

  • Dimensions

    2.1 x 1.7 x 2.6" (54 x 44 x 65mm)

  • Weight

    1.9 oz (53g) (without Batteries)

Transmitter

Jump to...
  • Form Factor

    Bodypack

  • RF Output Power

    10 mW (EIRP)

  • Audio I/O

    1x 1/8" (3.5mm) TRS Female Input (Lockable)

  • Plug-In Power

    5 V

  • Muting

    Mute Switch

  • Audio Input Level

    0.46 to 2 V RMS (at 0 dB Gain)

  • Auto-Level Control

    No

  • Gain Range

    -6 to +12 dB

  • Signal Processing

    High-Pass Filter: 100 Hz

  • Frequency Response

    20 Hz to 20 kHz

  • Sync Method

    Proprietary

  • Antenna

    1x 1/4 Wave Internal

  • Power Requirements

    Battery

  • Battery Type

    1 x Rechargeable (Included, Replaceable)

  • Internal Battery Capacity

    860 mAh

  • Battery Charging Time

    2.5 Hours

  • Approx. Battery Life

    5 Hours (Lithium Rechargeable)

  • USB/Lightning Connectivity

    1x Micro-USB (Charging)

  • Display & Indicators

    1x OLED (Audio Level, Battery Status, Channel, Mute, Peak)
    1x LED (Power)

  • Housing

    Metal, Plastic

  • Dimensions

    2 x 1.3 x 2.6" (51 x 34 x 65mm)

  • Weight

    1.9 oz (55.2g) (without Batteries)

Microphone

Jump to...
  • Form Factor

    Lavalier

  • Sound Field

    Mono

  • Capsule

    Electret Condenser

  • Polar Pattern

    Omnidirectional

  • Frequency Range

    30 Hz to 20 kHz

  • SNR

    75 dB

  • Maximum SPL

    120 dB SPL

  • Impedance

    2.5 Kilo Ohms

  • Sensitivity

    -32 dB

  • Output Connectors

    1 x 1/8" / 3.5 mm TRS Male (Lockable)

  • Cable Length

    5.2' (1.6m)

  • Operating Voltage

    2.5 to 10 V

  • Operating Current Consumption

    400 microA

  • Length

    0.7" (19mm)

  • Diameter

    0.3" (8mm)

  • Weight

    0.5 oz (13g)

  • UPC Code

    6943050419214

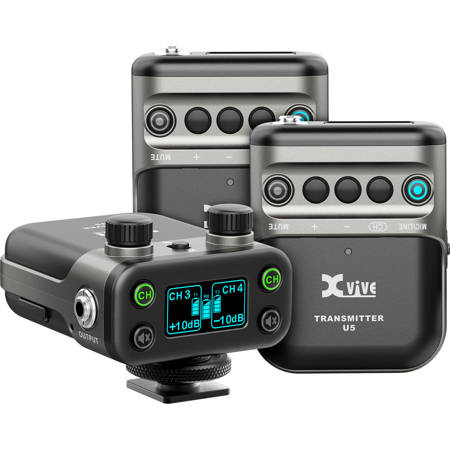

About XVIVE U5T2

If you're seeking a high-fidelity audio recording solution for your video production needs, the U5T2 Camera-Mount Digital Wireless Microphone System with 2x LV1 Lavalier Microphones is an exceptional choice. This system is engineered to deliver wireless lavalier microphone audio seamlessly to your DSLR camera, enhancing the quality of your video content across various applications such as video shoots, livestreams, interviews, webinars, weddings, and more.

The U5T2 set includes two beltpack transmitters and two LV1 lavalier microphones, enabling you to capture clear, uninterrupted audio from two separate sources. This flexibility is perfect for multi-speaker presentations or interviews, ensuring that every word is captured with clarity. The system operates on the 2400-2483.5MHz frequency range, utilizing the 2.4 GHz wireless band for reliable transmission of high-resolution audio.

Equipped with a dual-channel True Diversity U5R receiver, the system can simultaneously receive signals from both lavalier microphones or a combination of an audio device and a microphone. The True Diversity design incorporates four antennas, automatically selecting the strongest signal to maintain a stable and dependable wireless connection for your video productions.

The receiver's shoe mount is universally compatible with any DSLR camera, offering a secure and straightforward setup. Audio output from the receiver is facilitated through a 3.5mm stereo TRS connection, compatible with a wide range of DSLR/video cameras, mixers, or audio recorders.

For extended shooting sessions, the U5 wireless system is designed with a replaceable Xvive U5B lithium-ion battery, providing up to 5 hours of continuous operation. By carrying additional charged U5B batteries or utilizing the U5C Battery Charger (sold separately), which can charge three batteries simultaneously, you can ensure uninterrupted operation throughout your production.

The U5 system prides itself on delivering professional, high-resolution 24-bit / 48 kHz digital wireless audio. The transmitters connect to lavalier microphones and audio devices via a 3.5mm mono TRS plug, while the receiver outputs high-quality audio through a 3.5mm stereo TRS cable, guaranteeing a stable signal and superior sound quality for all your video projects.

Independent control of the left and right channels is another standout feature of the U5 system. Separate knobs on the receiver allow for precise adjustment of the output gain for each channel, ranging from -54 dB to +24 dB in 1 dB increments. This level of control enables you to fine-tune the audio balance, whether you're blending two channels in mono mode or assigning one channel to each side in stereo mode for post-production mixing flexibility.

In summary, the U5T2 Camera-Mount Digital Wireless Microphone System with 2x LV1 Lavalier Microphones is a robust and versatile audio recording solution that promises to elevate the production value of your video content with its high-quality wireless audio, reliable performance, and user-friendly features.

XVIVE U5T2 Features

  • 2-Person Interviews, Podcasts, Videos
  • 2x Transmitters with Omni Lav Mics
  • True-Diversity Dual-Channel Receiver
  • 5-Hour Rechargeable/Replaceable Battery

Product Documents

User Manual

Key Features

  • Capture pristine audio with this wireless microphone system, perfect for on-camera interviews.
  • Enjoy a reliable wireless range up to 100' for dynamic recording without signal loss worries.
  • The included lavalier microphones deliver clear, crisp sound, enhancing your audio projects.
  • Benefit from the ease of use with plug-and-play setup; get recording quickly with this system.
  • Long-lasting battery life ensures your camera microphone is ready for extended shoots and sessions.
  • Dual-channel receiver allows for simultaneous use of two wireless microphones, maximizing versatility.

What's in the box:

  • XVIVE Dual-Channel Receiver
  • 2x Bodypack Transmitters
  • 2x LV1 Lavalier Microphones
  • 2x Foam Windscreens
  • 2x Mic Clips
  • 3x ID799 Rechargeable Lithium-Ion Batteries
  • 3.5mm TRS Output Cable
  • USB Charging Cable
  • Dual USB Charging Cable
  • Pouch
  • XVIVE 1 Year Limited Warranty
