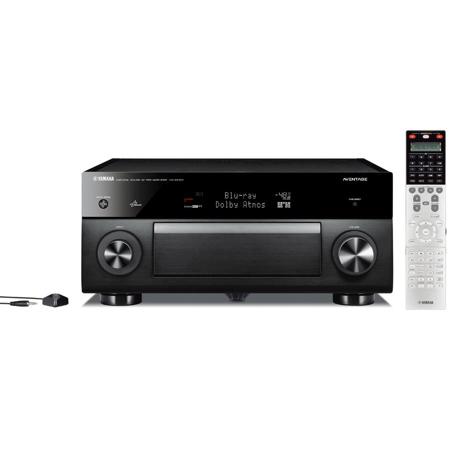

Yamaha CX-A5100 11.2-Channel AV Preamplifier, Black
SKU: YACXA5100BL
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
Reviews about this item
Review Summary
2020-01-08T08:31:15
Rated 5 out of 5
Wonderful receiver!
It has been wonderful owning this pre-amp for about a month now! Oodles of inputs and the YPAO is just awesome! Works beautifully with the MX-A5000. On remotes, I actually prefer its remote compared to the one of the CX-A5200 but I wish they would provide a smaller backup remote (also for zone 2).
Tawanda G.
Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.
TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.
Invest In Your Gear and Peace Of Mind!
Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.
Repair or Replacement
If we can’t fix it, we’ll replace it at no additional cost.
Accidental Damage
Protect your product from drops, spills, and more.
Peace of Mind
Enjoy your gear without fear. We have you covered!
Malfunction Protection
When regular use of your product over time results in mechanical or electrical failure.
Zero Deductible
We will never charge you a deductible after the purchase of a plan.
Customer-Focused Support
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.
Browse our FAQ
Yamaha CX-A5100 Specifications
Surround Sound: Cinema DSP
Yes (HD3)
Surround Sound: DSP Programs
33
Surround Sound: Dialog Level Adjustment
Yes
Surround Sound: Virtual Presence Speaker
Yes (with Virtual Rear Presence Speakers)
Surround Sound: Dialogue Lift
Yes (no presence speakers required)
Silent Cinema / Virtual Cinema DSP
Yes
Surround Sound: Dolby Atmos
Yes
Surround Sound: Dolby TrueHD
Yes
Surround Sound: Dolby Digital Plus
Yes
Surround Sound: Dolby Digital
Yes
Surround Sound: Dolby Pro Logic IIx
Yes
Surround Sound: DTS:X
Yes
Surround Sound: DTS-HD Master Audio
Yes
Audio: Pure Direct
Yes (with video on mode)
Audio: Compressed Music Enhancer
Yes
Audio: High-resolution Music Enhancer
Yes
Audio: YPAO multi-point measurement
Yes (R.S.C., 3D and angle measurement)
Audio: YPAO Volume
Yes
Audio: Adaptive DRC
Yes
Audio: Initial & Maximum Volume Setting
Yes
Audio: A.R.T. Wedge
Yes
Audio: Audio Delay
Yes (0-500 ms)
Audio: 192kHz/24-bit DACs
Yes (ESS Technology ES9016S SABRE32 Ultra DAC + 2x ESS Technology ES9006A SABRE Premier Audio DAC)(for all channels)
4K Ultra HD Pass-through and upscaling
Yes (4K 60p 4:4:4)
Video: HDMI 3D pass-through
Yes
Video: HDMI Audio Return Channel
Yes
Video: Component upscaling
Yes
Video: HDMI upscaling
Yes (analog to HDMI / HDMI to HDMI)
Video: Video adjustment
Yes
Video: Deep Color
Yes (x.v.Color/24Hz Refresh Rate /Auto Lip-Sync)
Connectivity: MusicCast
Yes
Connectivity: Wi-Fi
Yes (with Wireless Direct)
Connectivity: AirPlay
Yes
Connectivity: Bluetooth
Yes (AAC)

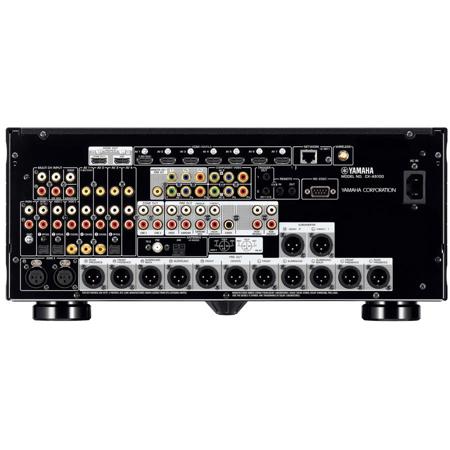

Extensive Connection: HDMI Input/Output
8 in / 2 out (HDCP 2.2: 7 in / 2 out)
Extensive Connection: HDMI CEC
Yes (SCENE, Device Control)
Extensive Connection: USB Input
iPod / iPhone, USB memory, portable audio player
Extensive Connection: Network Port
Yes
Extensive Connection: Front AV Input
HDMI / USB / Analog Audio / Composite Video
Digital Audio Input/Output
Optical: 3/0
Coaxial: 3/0Analog Audio Input/Output
XLR Balance: 1 / 0, RCA Unbalance: 9 (front 1) / 0
Extensive Connection: Phono Input
Yes
Component Video Input/Output
3/1
Composite Video Input/Output
5 (front 1) / 1
Extensive Connection: Preout
XLR Balance: 11.2-ch, RCA Unbalance: 11.2-ch
Extensive Connection: Headphone Output
1
FM/AM Tuner
Yes
User Interface: On-screen display
Graphical User Interface
User Interface: SCENE
SCENE PLUS (12 sets)
User Interface: App Control
Yes (iPhone / iPad / Android phone / tablet)
User Interface: Web Browser Control
Yes
User Interface: Remote Control Unit
Yes (preset, learning, macro, full LED backlight)
Zone Control: Zone 2 Audio Output
Preout / HDMI
Zone Control: Zone 3 Audio Output
Preout
Zone Control: Zone 4 Audio Output
HDMI
Zone Control: Zone Video Output
HDMI / Component / Composite
Zone Control: Zone HDMI
Yes (Advanced HDMI zone switching)
Zone Control: Zone B Output
HDMI
Zone Control: Zone GUI
Yes
Zone Control: RS-232C Interface
Yes
Zone Control: +12V Trigger Output
2
Zone Control: Remote (IR) Input/Output
1/1
Zone Control: Party Mode
Yes
Standby Power Consumption (IR only)
<=0.1 W
Auto Power Standby
Yes
Dimensions (W x H x D)
17.12 x 7.5 x 18.62" / 434.85 x 190.50 x 472.95mm
(with antenna up: 17.12 x 9.75 x 18.62" / 434.85 x 247.65 x 472.95mm)Weight
29.8lbs / 13.52kg
UPC Code
027108951454
About Yamaha CX-A5100
FEATURED REVIEWS
Wonderful receiver!
By Tawanda G.
It has been wonderful owning this pre-amp for about a month now! Oodles of inputs and the YPAO is just awesome! Works beautifully with the MX-A5000. On remotes, I actually prefer its remote compared to the one of the CX-A5200 but I wish they would provide a smaller backup remote (also for zone 2).
What's in the box:
- Yamaha CX-A5100 11.2-Channel AV Preamplifier
- Remote Control
- 4x Batteries (AAA/LR03/UM-4)
- AM Antenna
- FM Antenna
- YPAO Microphone
- Microphone Base Pole
- Power Cable
- CD-ROM (Owner's Manual)
- Setup Guide
- Safety Brochure
- Yamaha 3 Year Limited Warranty
