33% Off

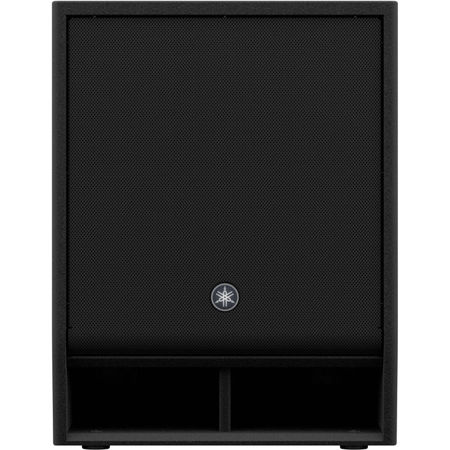

Yamaha CXS15XLF 15" 800W Passive Subwoofer

SKU: YACXS15XLF MFR: CXS15XLF
Earn VIP Reward Points

Key Features

  • Experience powerful, deep bass with the Yamaha CXS15XLF subwoofer for impactful sound.
  • This passive subwoofer delivers 800W program power, perfect for live sound and DJ setups.
  • Enjoy exceptional audio clarity with a frequency range of 33 Hz to 150 Hz in this Yamaha sub.
  • Built for durability, the plywood construction ensures this 15" subwoofer withstands heavy use.
  • Achieve high-quality sound with a peak SPL of 130dB, ideal for commercial audio applications.
  • Easily integrate this 8-ohm subwoofer with speakON NL4 connectors for versatile connectivity.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Yamaha CXS15XLF Specifications

PA Speaker

PA Speaker

Jump to...
  • Configuration

    Passive Subwoofer

  • Enclosure Type

    Bass-Reflex Subwoofer

  • Total Power Capacity

    400W RMS
    800W Program
    600W Peak

  • System Impedance

    8 Ohms (Nominal)

Drivers

Jump to...
  • LF Driver

    1x 15" Woofer

  • LF Voice Coil

    4"

  • Magnet

    Ferrite

Performance

Jump to...
  • Frequency Range

    33 Hz to 150 Hz -10 dB

  • Maximum SPL

    130dB (Peak)

  • Speaker Sensitivity

    98dB

Connectivity

Jump to...
  • Audio I/O

    2x speakON NL4
    1x speakON NL4 Output

General

Jump to...
  • Mounting

    1x 1.4" (35mm) Pole Socket
    1x M20

  • Handles

    2

  • Construction Material

    Plywood

  • Dimensions

    17.7 x 23.1 x 23.6" (44.96 x 58.67 x 59.94cm)

  • Weight

    78.5 lbs (35.61kg)

  • UPC Code

    889025114349

About Yamaha CXS15XLF

You'll experience powerful, high-quality sound with the CXS15XLF 15" 800W Passive Subwoofer, a product of Yamaha's renowned expertise in audio equipment. This professional-grade subwoofer is designed to complement CZR full-range speakers, delivering extended low frequencies with outstanding clarity and an impressive 131dB SPL performance.

The CXS15XLF is a bass-reflex type subwoofer, featuring an 18" subwoofer with a 4" Voice Coil. It's capable of handling a high power input of 1000W (PGM), making it a reliable choice for live sound production. The subwoofer also supports cardioid mode with processors or DSP onboard power amps, offering you greater flexibility in your sound setup.

Constructed with a lightweight yet durable plywood cabinet, the CXS15XLF is designed for longevity. It's coated with a premium grade Polyurea, ensuring resistance against scratches and wear from regular use. This makes it an ideal choice for those who need a robust subwoofer that can withstand the rigors of the road.

The CXS15XLF comes equipped with three speakON NL4MP connectors (2x Parallel, 1x Output), providing safe and flexible connectivity. It also features dual-pole sockets, allowing for easy setup with full-range CZR loudspeakers or for cardioid mode setting. The subwoofer's intelligent processing maximizes system performance, extending the system's low frequency down to a starting 29Hz for a deep, throbbing bass.

Whether you're setting up for a live concert or a professional recording session, the CXS15XLF 15" 800W Passive Subwoofer delivers the powerful, high-quality sound you need.

Yamaha CXS15XLF Features

  • Powerful 15" 800W Passive Subwoofer, perfect for live sound production
  • Features an 18" subwoofer with a 4" Voice Coil for exceptional audio clarity
  • Supports cardioid mode with processors or DSP onboard power amps
  • Durable plywood cabinet with premium Polyurea coating for scratch-resistance
  • Equipped with three speakON NL4MP connectors for safe and flexible connectivity
  • Intelligent processing extends low frequency down to a starting 29Hz for deep bass

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Experience powerful, deep bass with the Yamaha CXS15XLF subwoofer for impactful sound.
  • This passive subwoofer delivers 800W program power, perfect for live sound and DJ setups.
  • Enjoy exceptional audio clarity with a frequency range of 33 Hz to 150 Hz in this Yamaha sub.
  • Built for durability, the plywood construction ensures this 15" subwoofer withstands heavy use.
  • Achieve high-quality sound with a peak SPL of 130dB, ideal for commercial audio applications.
  • Easily integrate this 8-ohm subwoofer with speakON NL4 connectors for versatile connectivity.

What's in the box:

  • Yamaha CXS15XLF 15 " 800W Passive Subwoofer
  • Yamaha 7 Year Limited Warranty
