Yamaha Dante-MY16-AUD2 Specifications

  • Audio channels

    16IN / 16OUT

  • Sample rates

    44.1kHz, 48kHz, 88.2kHz and 96kHz

  • Sample rate pull-up/down

    +4.1667, +0.1, -0.1, and - 4.0 %

  • Sample bit-depth

    16, 24 or 32-bit PCM

  • Network

    2x Gigabit (1000Mbps) Ethernet RJ45 connectors

  • Redundancy

    Glitch-free Dante audio redundancy using dual Ethernet networks (redundant mode)

  • Daisy chaining

    Daisy chain multiple Dante-MY16-AUD2 cards together (switched mode)

  • HA Remote

    Support for HA Remote capable Yamaha products

  • Expandable

    Install up to four Dante-MY16-AUD2 cards in available MY16-compatible slots for up to 64x64 audio channels

  • Compatibility

    Digital Mixers: CS-R10, DSP-R10, RPio622, CL5/3/1, QL5/1, PM5D, DSP5D, M7CL, LS9, DM2000, DM1000, 02R96, 01V96, 01V96i
    Interfaces: RSio64-D
    Processors: MRX7-D, MTX5-D, DME24N, DME64N
    Power Amps: TX4n, TX5n, TX6n

About Yamaha Dante-MY16-AUD2

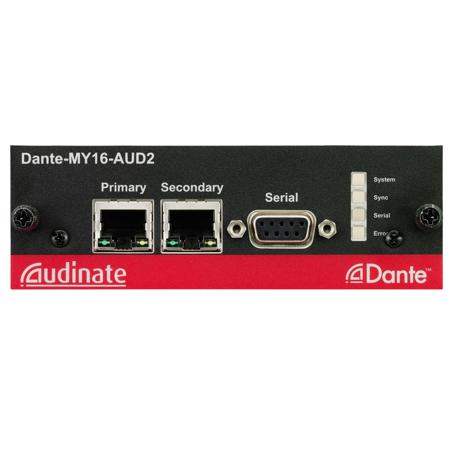

Dante-MY16-AUD2 card is a fully compatible Yamaha Mini-YGDAI standard card that instantly Dante enables your Yamaha mixer, processor or power amp. Each Dante-MY16-AUD2 provides 16 bidirectional audio channels (8 at 96 kHz) and full Dante network audio redundancy over Gigabit Ethernet.

Yamaha Dante-MY16-AUD2 Features

  • Supports 44.1 and 88.2kHz sample rates, in addition to the previously-supported 48 and 96 kHz sample rates
  • Sample rate pull-up/down can be used to synchronise audio with video that has undergone frame rate conversion
  • Dante-MY16-AUD2 cards can be daisy chained together via the secondary Ethernet port
  • Dante-MY16-AUD2 can be PIN-locked and unlocked using Dante Controller
  • 2x RJ-45 connectors for Dante I/O, 1x D-sub 9 pin connector for RS232-C
  • Latency can be selected from five preset values: 0.25 ms, 0.5 ms, 1.0 ms, 2.0 ms, or 5.0 ms
  • More than 16 audio channels can be transferred when used with multiple Dante-MY16-AUD2 cards
  • Automatic discovery and setup for network devices. Devices names can be specified as required
  • Allows direct PC or Mac audio input and output without the need for an audio interface

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Enhance your Yamaha mixer with this 16-channel Dante network audio interface card.
  • Experience glitch-free audio redundancy with dual Ethernet networks on this Dante card.
  • Achieve pristine sound quality with up to 32-bit PCM audio via the Yamaha Dante-MY16-AUD2.
  • Expand your system up to 64x64 channels by installing four Dante audio interface cards.
  • Enjoy seamless integration with Yamaha mixers and processors using HA Remote support.
  • Daisy chain multiple Dante-MY16-AUD2 cards for flexible audio networking solutions.
