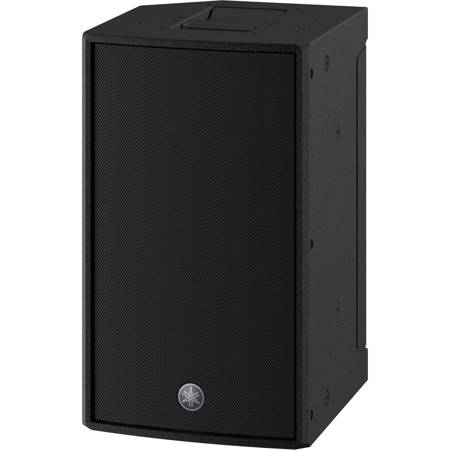

Yamaha DZR10 10" 2000W 2-Way Bass-Reflex Bi-Amplified Powered Speaker Black

The DZR10 is 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive 137dB SPL. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR10 realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.

Sign of the Times
The culmination of all Yamaha's accrued sound reinforcement, acoustics, and signal processing technology expertise-particularly with the introduction of our Dante-enabled models- DZR represents Yamaha's first fully-integrated, smart/editable speaker range of professional, powered loudspeakers.

Yamaha DSP: Intelligent Processing for Consistent Clarity and Power

Advanced FIR-X Tuning
96kHz DSP processors help focus the considerable power output of the DZR into truly high-resolution sound with super-low latency. Yamaha's newly developed Advanced FIR-X tuning improves significantly on our proprietary FIR-X tuning technology which utilizes linear phase FIR filters for the crossover network and correct EQ. Using FIR filters, we are able to realize very smooth frequency response for stunning clarity and sound imaging without phase distortion. Accurate EQ filtering is also provided for pinpoint adjustment to realize ideal clarity and best-in-class SPL without signal degradation.

An onboard LCD screen allows users to easily navigate the variety of DSP functions, load presets, and make precise adjustments to PEQ, delay, and routing. Store up to 8 user presets to save your own parameter adjustments, or use the optimized dedicated factory presets for using DZR Series in combination. Users can easily transfer saved settings to a USB flash drive.

D-CONTOUR
D-CONTOUR is an intelligent multi-band compressor that ensures your DZR's sound stays consistent and clear no matter how hard you drive them. By constantly monitoring the output of multiple frequency bands and applying the optimum EQ adjustments for each, even the highest output levels maintain outstanding clarity and musicality. A perfect complement to the DZR's versatile cabinet design, D-CONTOUR provides two different settings, FOH/MAIN or MONITOR mode, offering more detailed tuning of your sound relative to your PA's configuration. FOH/MAIN mode boosts the lower frequencies to compensate for low end that is typically missing when speakers are used in suspended applications or mounted on a speaker stand. MONITOR mode is optimized for floor monitoring application by taming down problematic low frequencies that can be enhanced by floor reflection, and smoothing a wide range of frequencies to deliver the clarity professionals demand from their stage monitors. Both of these presets were perfected by performing countless listening tests with skilled sound engineers to ensure consistent sound with low distortion at any output level.

DSP protection functions for maximum output and component longevity
One of the advantages of powered loudspeakers is that the combination of transducers and amplifiers can be perfectly matched and optimized for the best possible performance. During the development of the DZR Series, we measured and tested the durability of each transducer and the overall amplifier output to set optimal limiter points for each model using precise DSP control.

Employing many of the same protection functions used in our high-end professional power amplifiers, our state-of-the-art DSP consistently monitors the status of the power supply, power amplifiers, transducers, and signal levels, to protect each component in order to maintain optimum performance while extending component life and usability.

Smart design for professional functionality
DZR10 speaker feature a rotatable horn to allow vertical or horizontal mounting to further adapt to the acoustic dimensions of a venue. The coverage angle of the DZR10 have 90x60 Degree dispersion from a vertical position. The constant directivity horns were designed with the goal of providing smooth, level coverage across the intended coverage area, minimizing roll-off that is common in conventional horn designs.

Our newly developed proprietary LF transducers use large 3" voice coils, cast aluminum frames, and a very strong, lightweight neodymium magnet to handle high power and powerful low frequency response despite the lightweight construction. The response is tightly controlled, particularly in the mid-bass and vocal range, assuring overall response is powerful and distortion-free even at the highest outputs.

The HF transducers are comprised of a 2" voice coil and 1" throat compression driver, a titanium diaphragm and Neodymium magnet housed in a durable heat -resistant aluminum cast frame.

The cabinets are constructed from a high grade 15mm thick plywood then painted with an extremely durable, military grade Polyurea coating. The enclosures of the full-range speakers also feature butterfly joints for added strength and cabinet vibration reduction, as well as a wide, flare-shaped port that helps to minimize port noise even at very high output levels. Used in either a balanced dual-mono configuration or a stereo monitor mix setup, mirror-mode floor monitoring can enhance your playing and performance considerably.

High power 2000W Class-D amplification
The all new, highly efficient Class-D amplification module produces best-in-class 2000W of power and impressive 143dB SPL. A universal switching mode power supply with PFC maximizes the power output while ensuring stable and worry-free operation. All the amplifiers were selected and optimized to match the full-range DZR's high and low frequency transducers, while separate, customized amps were developed for the DXS-XLF subwoofers as well.

U Brackets for vertical or horizontal mounting
DZR Series loudspeakers offer plenty of rigging points, allowing for rigged application with standard eyebolts.

Note: Eyebolts not included

Utilities for safe and secure operation
DZR Series make it fast and easy to configure panel settings and transfer data via USB, and also feature a panel locking function to keep your settings safe. Users can even export information such as internal device and log data to USB for rapid troubleshooting should difficulties arise.
