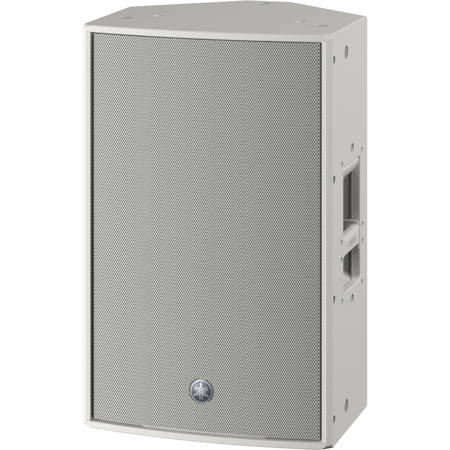

Yamaha DZR12W 12" 2000W 2-Way Bass-Reflex Bi-Amplified Powered Speaker, White

SKU: YADZR12W MFR: DZR12W
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Yamaha 2-way powered speaker.
  • This 2000W bi-amplified speaker delivers powerful, clear audio for any event.
  • Achieve optimal coverage with the rotatable 90x60 degree coverage area.
  • Durable plywood build ensures this PA speaker withstands demanding use.
  • Perfect for live sound, enjoy versatile connectivity with combo and XLR inputs.
  • Lightweight and portable, this Yamaha speaker is ideal for mobile DJs and bands.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Yamaha DZR12W Specifications

  • Color

    White

  • Speaker Type

    2-Way, Bi-amped Powered Speaker, Bass-reflex

  • Frequency Range (-10dB)

    39Hz - 20kHz

  • Coverage Area

    H: 90 Degree x V: 60 Degree (Rotatable)

  • Components

    LF: 12" (304.8mm) Cone, 3" (76.2mm) Voice Coil, Neodymium magnet
    HF: 2" (50.8mm) Voice Coil, 1" (25.4mm) Throat Compression Driver, Titanium diaphragm, Neodymium magnet

  • Crossover

    1.8kHz (FIR-X)

  • Sampling Frequency Rate

    Internal: 96kHz and FIR Filter

  • A/D D/A Converters

    96kHz AD/DA

  • Maximum Output Level (1m; on axis)

    139dB SPL

  • Power Rating

    Dynamic: 2000W (LF: 1000W, MF/HF: 1000W)
    Burst (20ms): 1100W (LF: 1000W, MF/HF: 100W)
    Continuous: 950W (LF: 850W, MF/HF: 100W)

  • I/O Connectors

    Analog I/O: Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20k Ohm, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
    Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
    AC: 1x IEC AC inlet (V-Lock)

  • Amplifier Class

    Class-D

  • Cooling

    Fan cooling, Variable speeds

  • Power Consumption

    45W (Idle), 150W (1/8)

  • Handle

    Aluminum die-cast, 2x Side

  • Rigging

    12x M10

  • Others

    Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting

  • Floor Monitor Angle

    50 Degree Symmetrical

  • Pole Socket

    Diameter 1.37" (35mm) x2 (0 Degree or -7 Degree )

  • Dimensions (W x H x D)

    16.1 x 25.4 x 15.5" (410 x 646 x 394mm) (With Rubber Feet)

  • Weight

    47.2 lbs (21.4kg)

  • UPC Code

    889025127691

About Yamaha DZR12W

It's the DZR12W 12" 2000W 2-Way Bass-Reflex Bi-Amplified Powered Speaker, White, a high-quality, durable, and powerful audio equipment from the reputable Yamaha brand. This efficient and reliable speaker is designed for live performances, DJ sets, and other events requiring superior sound quality.

The DZR12W is a 2-way bi-amplified powered speaker that delivers exceptional clarity with an impressive 139dB SPL. Its compact, lightweight design belies its powerful performance, making it a standout in its class. The speaker is equipped with sophisticated DSP processing and offers unrivaled low-frequency sound reproduction, delivering a truly professional sound.

The speaker is a testament to Yamaha's expertise in sound reinforcement, acoustics, and signal processing technology. It features Yamaha's newly developed Advanced FIR-X tuning, which uses linear phase FIR filters for the crossover network and correct EQ. This technology ensures smooth frequency response, stunning clarity, and sound imaging without phase distortion.

The DZR12W also features an onboard LCD screen for easy navigation of the DSP functions, load presets, and precise adjustments to PEQ, delay, and routing. It allows users to store up to 8 user presets or use the optimized dedicated factory presets for using the DZR Series in combination.

The speaker also features D-CONTOUR, an intelligent multi-band compressor that ensures consistent and clear sound at any output level. It offers two different settings, FOH/MAIN or MONITOR mode, for more detailed tuning of your sound relative to your PA's configuration.

The DZR12W speaker is designed with a rotatable horn for vertical or horizontal mounting, adapting to the acoustic dimensions of any venue. The cabinets are constructed from high-grade 15mm thick plywood and painted with a durable, military-grade Polyurea coating.

The speaker is powered by a highly efficient Class-D amplification module that produces a best-in-class 2000W of power and an impressive 143dB SPL. It also features a universal switching mode power supply with PFC for stable and worry-free operation.

The DZR12W 12" 2000W 2-Way Bass-Reflex Bi-Amplified Powered Speaker, White, is not just a speaker; it's a testament to Yamaha's commitment to delivering high-quality, powerful, and reliable audio equipment.

Yamaha DZR12W Features

  • 2-Way powered loudspeaker with a 2" HF and a 12" LF
  • Maximum 139dB SPL and 39Hz-20kHz frequency range is ideal for today's sound engineering demands
  • High power 2000W Class-D amplifier module
  • 96kHz DSP and FIR filter for true high-resolution sound with super low latency
  • Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
  • Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
  • D-Contour and highly reliable protection circuits
  • Floor monitoring setting enables mirroring configuration
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • Rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement
  • Durable White finish

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Experience superior sound quality with this Yamaha 2-way powered speaker.
  • This 2000W bi-amplified speaker delivers powerful, clear audio for any event.
  • Achieve optimal coverage with the rotatable 90x60 degree coverage area.
  • Durable plywood build ensures this PA speaker withstands demanding use.
  • Perfect for live sound, enjoy versatile connectivity with combo and XLR inputs.
  • Lightweight and portable, this Yamaha speaker is ideal for mobile DJs and bands.

What's in the box:

  • Yamaha DZR12W 12" 2000W 2-Way Bass-Reflex Bi-Amplified Powered Speaker (White)
  • Power Cord
  • User Manual
  • Yamaha 7 Year Limited Warranty
