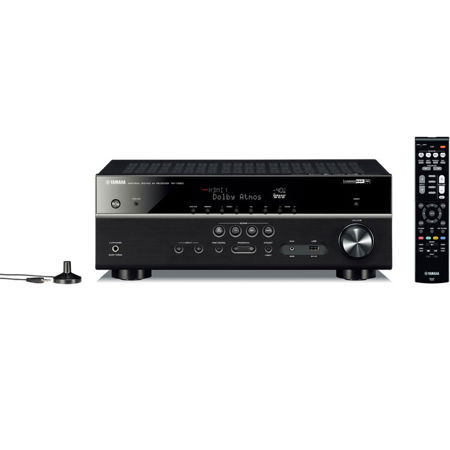

Yamaha RX-V583 7.2-Channel Network A/V Receiver, Up to 80W Per Channel
See all Yamaha items

Yamaha RX-V583 7.2-Channel Network A/V Receiver with 4K Ultra HD Upscaling and Pass-Through, Dolby Atmos and DTS:X, Zone B, Tidal & Deezer Music Streaming Service, Up to 80W Per Channel

SKU: YARXV583BL

This item is no longer available.

Recommended Alternatives

Yamaha RX-V385: Picture 1 regular
Yamaha RX-V385 5.1 Channel Network AV Receiver with Bluetooth
$399.95$339.95
Yamaha AVENTAGE RX-A4A: Picture 1 regular
Yamaha AVENTAGE RX-A4A 7.2-Channel AV Receiver with MusicCast
$1,399.95
Yamaha AVENTAGE RX-A6A: Picture 1 regular
Yamaha AVENTAGE RX-A6A 9.2-Channel AV Receiver with MusicCast
$2,699.95
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2017-11-18T19:00:00

Rated 4 out of 5

Bravo this is something,RX-V583 !!

RX-V583 This beautiful AV is awesome !!

Mark

Yamaha RX-V583 Specifications

  • Amplifier: Channel

    7.2

  • Amplifier: Rated Output Power

    115W (8Ohms, 0.9% THD) (1kHz, 1ch driven)
    80W (8Ohms, 0.09% THD) (20Hz-20kHz, 2ch driven)

  • Amplifier: Max Effective Output Power

    145W (6Ohms, 10% THD) (1kHz, 1ch driven) (JEITA)

  • Amplifier: Dynamic Power Per Channel

    120 / 140 / 170 / 190W (8/6/4/2Ohms)

  • Surround Sound Processing

    CINEMA DSP: Yes (3D)
    DSP Programs: 17
    Dialog Level Adjustment: Yes
    Virtual Presence Speaker: Yes
    Virtual Surround Back Speaker: Yes
    Dialogue Lift: Yes
    SILENT CINEMA / Virtual CINEMA DSP: Yes (Virtual CINEMA FRONT)
    Dolby Atmos: Yes
    Dolby TrueHD: Yes
    Dolby Digital Plus: Yes
    Dolby Surround: Yes
    DTS:X: Yes
    DTS-HD Master Audio: Yes

  • Audio: Compressed Music Enhancer

    Yes (including enhancer for Bluetooth)

  • Audio: YPAO Sound Optimization

    Yes

  • Audio: Adaptive DRC

    Yes

  • Audio: Initial Volume/Max Volume Setting

    Yes

  • Audio: Bi-Amp Capability

    Yes

  • Audio: Audio Delay

    Yes (0-500ms)

  • Audio: 192kHz / 24-bit DACs

    Yes for all Channels (Burr-Brown)

  • Video: 4K Ultra HD Passthrough/Upscaling

    Yes (4K / 60p, 4:4:4)

  • Video: HDMI 3D Pass-Through

    Yes

  • Video: HDMI Audio Return Channel

    Yes

  • Video: HDMI Upscaling

    Yes (1080p HDMI to 4K HDMI)

  • Video: Deep Color

    Yes (x.v.Color/24Hz Refresh Rate /Auto Lip-Sync)

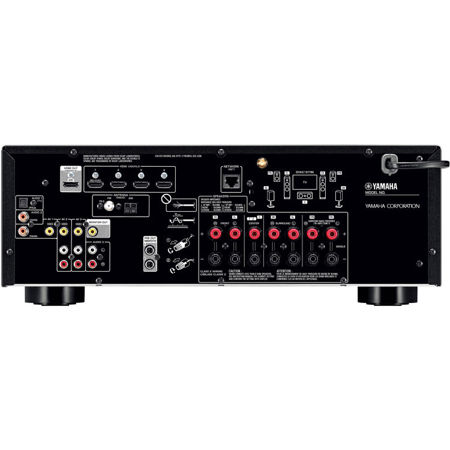

  • Extensive Connection

    HDMI Input/Output: 4 / 1 (HDCP 2.2, HDR 10 / Dolby Vision / HLG and BT.2020 compatible)
    HDMI CEC: Yes
    USB Input: USB memory, portable audio player
    Network Port: Yes
    Front AV Input: USB / mini-jack
    Digital Audio Input/Output: Optical: 1/0
    Digital Audio Input/Output: Coaxial: 2/0
    Analog Audio Input/Output: 4 (front 1) / 0

  • Extensive Connection (Cont.)

    Composite Video Input/Output: 3/1
    Preout: Subwoofer (2x mono)
    Headphone Output: 1

  • Connectivity

    MusicCast: Yes
    Wi-Fi: Yes (with Wireless Direct)
    AirPlay: Yes
    Bluetooth: Yes (SBC / AAC)

  • FM/AM Tuner

    Yes

  • User Interface

    On-screen display: Yes (color OSD)
    SCENE: SCENE (4 sets)
    App Control: Yes (iPhone / iPad / Android phone / tablet)
    Remote Control Unit: Yes

  • Zone B Output

    Yes

  • Zone 2 Audio Output

    Pre out

  • Standby Power Consumption (IR Only)

    <=0.1W

  • Auto Power Standby

    Yes

  • ECO mode

    Yes

  • Dimensions (WxHxD)

    17.12 x 6.37 x 12.87" (434.85 x 161.80 x 326.90mm)
    With Antenna Up: 17.12 x 8.87 x 12.87" (434.85 x 225.30 x 326.90mm)

  • Weight

    17.9 lbs (8.12kg)

  • UPC Code

    027108955230

About Yamaha RX-V583

This 7.2-channel 4K Ultra HD network AV receiver features Dolby Atmos and DTS:X object based surround sound. Download the free MusicCast Controller app to access your music library and streaming music services easily. Add audio in up to 9 additional rooms with MusicCast wireless speakers or other MusicCast devices. Wi-Fi, Bluetooth and AirPlay wireless connectivity, advanced speaker configurations and Zone B audio provide added system versatility. In addition, Dolby Vision and Hybrid Log-Gamma compatibility provide incredible contrast, smooth tone and rich, bright colors.

• 7.2-channel surround sound with Dolby Atmos and DTS:X
• Zone B audio to fill another room with sound
• Add audio in up to 9 additional rooms with MusicCast
• Fully loaded with Wi-Fi, Bluetooth, AirPlay and Spotify Connect
• 4-in, 1-out HDMI with 4K Ultra HD pass-through and HDCP 2.2, HDR Video including Dolby Vision and Hybrid Log-Gamma and BT.2020
• Compressed Music Enhancer and high-resolution audio support for sound clarity
• YPAO sound optimization for automatic speaker setup

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Yamaha RX-V583 7.2-Channel Network A/V Receiver
  • AM Antenna
  • FM Antenna
  • YPAO Microphone
  • Remote Control
  • 2x AAA Battery (R03/UM-4)
  • CD-ROM (Owner's Manual)
  • Quick Start Guide
  • Yamaha 3 Year Limited Warranty
