Yamaha STAGEPAS 1K Specifications

Type
  • Type

    Powered subwoofer with a line array speaker

Mixing capability

Jump to...
  • Mixing channels

    5 (3 mono + 1 ST)

  • Input channel functions

    Hi-Z: CH2/3, 1-knob EQ: CH1-3/ST

  • Output channel functions

    MODE (SPEECH - MUSIC - CLUB)

  • Inputs

    3 mono mic/line + 1 stereo line/2 mono line

  • Outputs

    1 Link out, 1 Monitior out

  • Bluetooth

    Bluetooth Ver.5.0, A2DP (SBC, AAC)

  • Control and others

    Reverb foot switch, STAGEPAS Editor (iOS/Android app)

On-board processors

Jump to...
  • DSP

    SPX digital reverb (4 program, parameter control)

General

Jump to...
  • Speaker type

    Powered subwoofer: Bass-reflex type, Line array speaker: Enclosed

  • Frequency range (-10dB)

    37 Hz - 20 kHz

  • H Nominal coverage

    170 Degree

  • V Nominal coverage

    30 Degree

  • LF Components

    Powered subwoofer: 12" (30 cm) Cone

  • HF Components

    Line array speaker: 1.5" (3.8 cm) Cone x 10

  • Dynamic

    1000W (Powered subwoofer: 810W, Line array speaker : 190W)

  • Maximum output level (1m; on axis)

    119 dB SPL

  • Power requirements

    Depending on area of purchase: 100V 50Hz/60Hz, 110V/120V 60Hz, 220V-240V 50Hz/60Hz

  • Power consumption

    25 W (Idle), 85 W (1/8 power)

  • Dimensions (W x H x D)

    System: 13.14 x 78.74 x 16.45" (334 x 2,000 x 418mm) (maximum)
    Line array speaker: 2.63 x 22.91 x 3.38" (67 x 582 x 86mm)
    Powered subwoofer: 13.14 x 21.65 x 16.45" (334 x 550 x 418mm)
    Spacer: 2.63 x 21.85 x 3.38" (67 x 555 x 86mm) (each)

  • Weight

    System: 50.70 lbs (23.0kg) (maximum)
    Line array speaker: 3.96 lbs (1.8kg)
    Powered subwoofer: 44 lbs (20.0kg)
    Spacer: 1.32 lbs (0.6kg) (each)

  • UPC Code

    889025123990

About Yamaha STAGEPAS 1K

Take your performances to the next level with the STAGEPAS 1K Column Type 1000W Portable PA System. This all-in-one system is designed to transform any location into a professional stage, offering superior audio performance with a simple setup. Ideal for aspiring artists, the STAGEPAS 1K stands out among other portable PA systems with its high-quality sound, lightweight design, professional mixing functions, and easy operation.

Built on Yamaha's decades of experience in producing innovative, professional audio equipment, the STAGEPAS 1K features a concert-quality mixer and speaker, setting a new standard for portable PA systems. Its simple setup and control allow you to focus on your performance, while its wealth of sound adjustment features, including a 1-knob EQ and MODE for optimized compression settings, make achieving the perfect mix a breeze.

The STAGEPAS 1K is powered by a 1000W amplifier that drives an array speaker with 10 small-diameter 1.5" units and a class-leading 12" subwoofer. Its impressive 170-degree horizontal and 30-degree vertical coverage area ensures consistent, high-quality sound projection, delivering an immersive audio experience for your audience.

Despite its compact size, the STAGEPAS 1K packs a punch with its high-output 1000W amplifier. The high-frequency speaker array, comprised of 10 small-diameter 1.5" speakers, adopts a J-curve array configuration for consistent sound quality over longer distances. The subwoofer features a 12-inch speaker unit, the largest in its class, and Yamaha's own Twisted Flare Port technology to produce deep, powerful, distortion-free bass.

The STAGEPAS 1K also boasts a 5-channel digital mixer with outstanding flexibility. It features three channels of mono microphone/line inputs and stereo inputs, with two of the mono input channels equipped with Hi-Z connectivity for direct input of acoustic-electric guitars and other instruments. The stereo connections support playback with Bluetooth devices, making it a versatile choice for a wide range of input sources.

The STAGEPAS 1K comes with its own cover for protection and easy transportation. It also includes pouches for spacers and the speaker array, as well as additional storage pockets for microphones, cables, and more. For larger scale performances, two STAGEPAS 1K systems can be linked to provide a wider coverage area and higher output power.

In summary, the STAGEPAS 1K Column Type 1000W Portable PA System is a compact yet powerful solution for all your performance needs, offering professional audio quality, simple operation, and superior portability.

Yamaha STAGEPAS 1K Features

  • 1000W (HF: 190W+LF: 810W) Class-D power output
  • Best in class 12" subwoofer
  • 10x 1.5" drivers for slim line array speaker
  • Digital mixer (3 mono mic/line + 1 stereo line)
  • Multi-band compressor "mode" for master output
  • 1-knob EQ for per channel
  • High resolution SPX digital reverbs (4types, parameter control)
  • 2x Hi-Z (high impedance) inputs
  • Link out and monitor out
  • Dedicated cover included
  • Optional reverb foot switch
  • Optional dolly for more portability

Key Features

  • All-in-one 1000W portable PA system for superior audio performance
  • Easy setup and control with professional mixing functions
  • Features a 1-knob EQ and MODE for optimized compression settings
  • High-frequency speaker array and class-leading 12" subwoofer for consistent sound quality
  • 5-channel digital mixer with mono microphone/line inputs and stereo inputs
  • Comes with a protective cover and storage pockets for easy transportation and organization

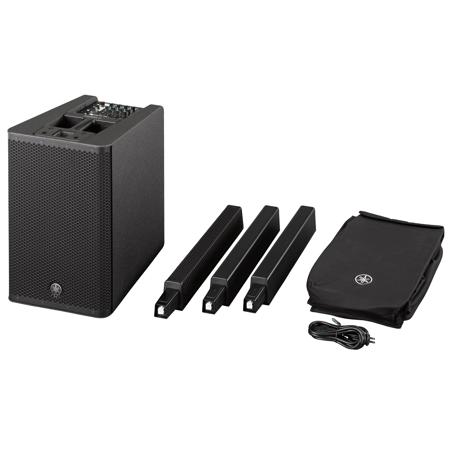

What's in the box:

  • Subwoofer with Integrated Mixer
  • Speaker Array and 2 Spacers
  • Transport Cover
  • Power Cord (2m)
  • Yamaha 1 Year Limited Warranty
