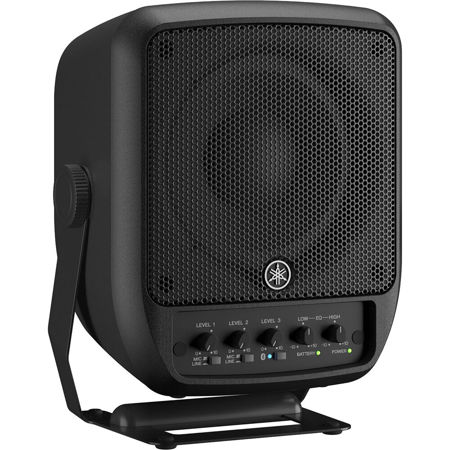

Yamaha STAGEPAS 100 6.5" Battery Powered Portable PA System with 3-channel Mixer

SKU: YASTAGEPAS1R MFR: STAGEPAS100BTR
Earn VIP Reward Points

Key Features

  • Experience powerful, portable PA sound with the Yamaha STAGEPAS 100 PA System.
  • Enjoy up to 6 hours of battery life for busking, presentations, and mobile DJ gigs.
  • The STAGEPAS 100's 3-channel mixer offers flexible input options for mics and instruments.
  • Stream music wirelessly via Bluetooth for backing tracks or background ambiance at events.
  • Achieve crystal-clear audio with the 6.5" coaxial speaker & compression driver system.
  • Lightweight design and rotating handle makes this PA system easy to carry to any venue.
See More Product Details
Special Order?Estimated to Ship: 09/09/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Yamaha STAGEPAS 100 Specifications

Outline

Outline

Jump to...
  • Type

    2-Way Bi-Amp Powered Speaker with Mixer

  • I/O

    Inputs:
    INPUT 1: Combo (mic/line), INPUT 2: Combo (mic/line), INPUT 3: Stereo Mini x1 (line)
    Outputs: OUTPUT: XLR3-32 (INPUT 1-3 mix)
    Bluetooth: Ver.5.0, A2DP (SBC, AAC), Class 1

  • Mixing capability

    Mixing channels: 3
    Input channel functions: Hi-Z: CH2
    Output channel functions: 2 Band EQ

General

Jump to...
  • Speaker Type

    Coaxial speaker with compression driver

  • Frequency Range (-10dB)

    70 Hz - 20 kHz

  • Coverage Area

    H: 90 Degree x V: 90 Degree

  • Crossover

    1.8 kHz (FIR-X)

  • Maximum output level (1m; on axis)

    1x 120 dB SPL

  • Components

    LF: 6.5" Cone, 1.7" voice coil
    HF: 1" throat compression driver, 1.4" voice coil

  • Amplifier class

    Class-D

  • Power rating

    Dynamic: 100 W (LF: 93 W, HF: 7 W)

  • Cooling

    Natural convection (No fan)

  • Power consumption

    Idle: 10W
    1/8 Power: 30W

  • Power requirements

    100-240 V 50/60 Hz

  • Cabinet material

    Plastic (PP)

  • Handle

    1x Bottom (Rotatable)

  • Flying and mounting hardware

    1x 0.37" (9.52mm), Depth 0.47" (12mm) (Center of Handle)

Battery

Jump to...
  • Battery

    Rechargeable Lithium ion battery pack

  • Capacity

    60 Wh

  • Operating Time

    Maximum 6 hours, 1/16 power continuous 5 hours

  • Charging Time

    Approx. 2.5 hours

  • Battery Info

    Optional, Included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Dimensions (W x H x D)

    With Handle: 9.5 x 12.3 x 8.5" (239 x 310 x 215mm)

  • Weight

    Without AC Adapter: 12.1 lbs (5.5kg)

  • UPC Code

    889025148603

About Yamaha STAGEPAS 100

Make every location your personal stage with the STAGEPAS 100 6.5" Battery Powered Portable PA System with 3-channel Mixer. This high-quality, durable PA system is designed for ultimate portability, offering you the versatility to transform any space into an intimate live performance venue.

Engineered for professional use, the STAGEPAS 100 6.5" is more than just a speaker. It leverages advanced technologies found in our top-tier professional products to deliver impressive sonic performance. The powerful coaxial compression driver, coupled with proprietary FIR-X filters for the HF and LF crossover, ensures precise phase response, natural dispersion, and sound pressure. This means every nuance of your performance is conveyed loud and clear to your audience.

Setting up the STAGEPAS 100 6.5" is a breeze, allowing you to start your show in seconds. Simply power on the system, connect your microphone and instrument, adjust the volume, and you're ready to go. The master EQ is conveniently located on the front panel, making it easy to fine-tune your sound or adjust settings on the fly.

Despite packing all the essentials of a compact PA system, the STAGEPAS 100 6.5" weighs just 11 pounds. Its lightweight, durable design makes it incredibly portable, allowing you to easily carry it in one hand and set it up anywhere, anytime.

The STAGEPAS 100 6.5" is compatible with large-capacity lithium-ion batteries, offering up to 6 hours of continuous operation. This makes it a reliable choice for environments where no power source is available.

For added convenience, the STAGEPAS 100 6.5" comes equipped with Bluetooth for wireless connection with your smartphones and tablets for music/audio playback. The carrying handle doubles as a stand, allowing you to easily control your coverage area. The handle also features a 3/8" diameter screw hole for mounting on a microphone stand, offering more sound dispersion options.

The STAGEPAS 100 6.5" is a portable PA system equipped with a 100 W power amp, coaxial compression driver with 1.4" voice coil HF and 6.5" cone LF, a 3-channel mixer, and an internal lithium-ion battery. It's the perfect choice for musicians seeking a professional, versatile, and portable PA system.

Yamaha STAGEPAS 100 Features

  • 100 W Class-D amplifier
  • 1.4" HF + 6.5" LF high-quality coaxial compression driver using an FIR filter for the crossover
  • 3-Channel mixer (2 monaural mic/line + 1 line)
  • Equipped with a 2-band master EQ
  • Compatible with Hi-Z input (Channel 2 only)
  • Equipped with mix-out
  • Carrying handle doubles as an adjustable stand
  • Compatible with audio accompaniment over Bluetooth
  • Optional carrying bag (BAG-STP100) available for convenient transport
  • Internal lithium-ion battery

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience powerful, portable PA sound with the Yamaha STAGEPAS 100 PA System.
  • Enjoy up to 6 hours of battery life for busking, presentations, and mobile DJ gigs.
  • The STAGEPAS 100's 3-channel mixer offers flexible input options for mics and instruments.
  • Stream music wirelessly via Bluetooth for backing tracks or background ambiance at events.
  • Achieve crystal-clear audio with the 6.5" coaxial speaker & compression driver system.
  • Lightweight design and rotating handle makes this PA system easy to carry to any venue.

What's in the box:

  • Yamaha STAGEPAS 100 6.5" Battery Powered Portable PA System with 3-channel Mixer
  • Power Cord
  • AC Adapter (PA-500)
  • User Manual
  • Yamaha 1 Year Limited Warranty
