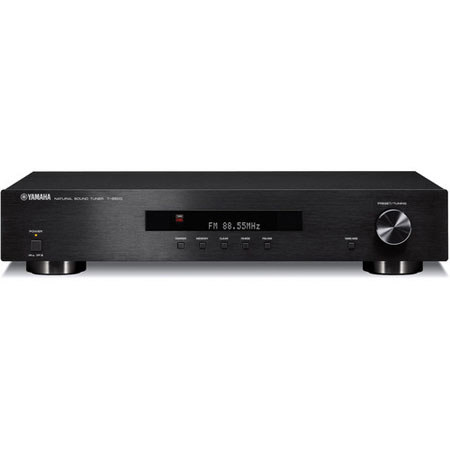

Yamaha T-S500 AM/FM Stereo Tuner
See all Yamaha items

Yamaha T-S500 AM/FM Stereo Tuner, 530-1710kHz AM /87.5-107.9MHz FM Tuning Range, 40-Stations

SKU: YATS500BL

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2017-05-07T20:00:00

Rated 3 out of 5

Nice tuner, but sadly no HD Stations

Simple setup, attractive appearance and works well with my Yamaha amp and its remote. Don't understand why a modern tuner wouldn't include digital support, that's something that my car audio systems have had for years.

Rob M.

2016-01-30T19:00:00

Rated 4 out of 5

Good Tuner!

I am happy with the tuner. The antenna that came with the tuner should have been higher quality. It does work better than the powered antennas I tried though. Overall I am very happy with this tuner.

50 s.

2016-01-21T15:26:34

Rated 5 out of 5

Best Tuner Ever!

Yamaha has the best hi-fi equipment available! Highly recommended!

MARC H.

2015-12-20T19:00:00

Rated 5 out of 5

Excellent

As usual the experts at Crutchfield give great advice and again I'm extremely pleased with my new Tuner.

RPH

2015-03-28T20:00:00

Rated 5 out of 5

Good Buy

Good looks, good buy, but needs a remote.

Dick

2014-09-27T20:00:00

Rated 5 out of 5

T-S500 Tuner

Separate components are getting harder to find, glad Yamaha still makes them, excellent tuner!

Texacsat

2014-04-29T20:00:00

Rated 5 out of 5

t-s500

it sound great it pull in week stations it look great and it have great sound I would recommend this product thank you YAMAHA for a great product

al

2013-01-27T19:00:00

Rated 5 out of 5

Sensitive tuner

I live in an area with poor FM reception. I was using a different brand receiver that gave poor reception of my favorite station. Its stereo setting was very noisy and the mono setting was somewhat poor. Yamaha TS 500 (connected to an audio input of this receiver) gave stereo reception that was better than the mono reception of the receiver whose tuner section was being replaced. There was still a little background noise on stereo so I use it on mono. The Yamaha TS 500 is obviously a much more sensitive tuner than what this tuner has.

Charles

2013-01-27T19:00:00

Rated 4 out of 5

Good Performance

Comments about Yamaha t-s500: A decent, very easy to use AM/FM Tuner. FM and AM reception is good. FM stereo sound is also decent. It would have been nice to include RDS and HD Radio in the design. An included remote would have been nice.

none

2012-09-22T20:00:00

Rated 4 out of 5

Decent, easy to use tuner

A decent, very easy to use AM/FM Tuner. FM and AM reception is good. FM stereo sound is also decent. It would have been nice to include RDS and HD Radio in the design (Europe and Asia versions of this tuner have these capabilities, as well as a choice of brushed aluminum instead of just black. Why doe the US always get different stuff??)

cnoyes

Yamaha T-S500 Specifications

  • Output Level

    FM (40kHz dev., 1kHz): 1.0V / 1.2 k ohms
    AM (30% mod., 1kHz): 0.36 V / 1.2 k ohms

  • AM Tuner

    Tuning range: 530-1710kHz
    Sensitivity: 300 uV/m
    Selectivity: 30 dB
    SNR: 50 dB
    Image rejection ratio: 35 dB

  • FM Tuner

    Tuning range: 87.5-107.9MHz
    50 dB quieting sensitivity (IHF, 100% mod.)
    Mono: 3 uV (20.2 dBf)
    User sensitivity (Signal to noise 30 db):
    Mono: 1 uV
    Image rejection ratio: 80 dB
    IF rejection ratio: 70 dB
    Selectivity (400kHz): 70 dB
    SNR (IHF):
    Mono / Stereo: 80 dB / 75 dB
    Harmonic distortion (1 kHz)
    Mono / Stereo: 0.3% / 0.5%
    Stereo separation (40kHz dev.)
    1 kHz: 43 dB
    Frequency response (20Hz to 15kHz): -3 dB
    Antenna input (Unbalanced): 75 ohms

  • Presets

    40

  • Connectors

    RCA output x 1

  • Power Requirements

    AC 120 V, 60Hz

  • Power Consumption

    9W

  • Dimensions (WxHxD)

    17.1x3.4x12" (43.3x8.6x30.5 cm)

  • Weight

    7.1 lbs (3.2kg)

  • UPC Code

    027108933924

About Yamaha T-S500

FEATURED REVIEWS

Sensitive tuner

By Charles

I live in an area with poor FM reception. I was using a different brand receiver that gave poor reception of my favorite station. Its stereo setting was very noisy and the mono setting was somewhat poor. Yamaha TS 500 (connected to an audio input of this receiver) gave stereo reception that was better than the mono reception of the receiver whose tuner section was being replaced. There was still a little background noise on stereo so I use it on mono. The Yamaha TS 500 is obviously a much mor...

View full Review

Good Buy

By Dick

Good looks, good buy, but needs a remote.

Yamaha T-S500 Features

  • 40-Station AM/FM Preset Tuning: All 40 stations can be accessed with two turns of the rotary encoder knob, after which it stops. Favorite stations can be set at either end for greater convenience
  • Auto FM Station Memory: Automatically presets the 40 strongest FM stations on the dial so you don't have to select and preset them manually
  • Multi-Status Station Memory: Thanks to multi-status station memory, each station memory includes the parameters set when it was memorized, for optimum quality each time it is selected
  • 2-Line, 16-Character (5 x 7 Dot Matrix) Display: This high and wide display offers better visibility than previous types (1-line, 11-character displays). It provides a larger amount of more precise information, making the tuning operation easier
  • IR Sensor on Front Panel: Allows the remote control from Yamaha Integrated Amplifiers (including the A-S500) to control the tune

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 2-Line, 16-Character (5 x 7 Dot Matrix) Display
  • 40-Station AM/FM Preset Tuning
  • Multi-Status Station Memory
  • IR Sensor on Front Panel
  • Auto FM Station Memory

What's in the box:

  • Yamaha T-S500 AM/FM Stereo Tuner
  • RCA Stereo Cable
  • Indoor FM Antenna
  • AM Loop Antenna
  • Yamaha Warranty
