Yamaha YHT-5950U 5.1-Channel Home Theater System with MusicCast

SKU: YAYHT5950UBL

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

James D : how much does the system weigh?
GINA H : Can I hook up an external CD player to this ?
Shopper : Can I hook up a CD player/changer to this?

Reviews about this item

Review Summary

Yamaha YHT-5950U Specifications

Receiver

Receiver

Jump to...
  • Rated Output Power

    80 W per Channel @ 8 Ohms, 20 Hz to 20 kHz, 0.09% THD, 2 Channels Driven
    115 W @ 8 Ohms, 1 kHz, 0.9% THD, 1 Channel Driven

  • Maximum Output Power

    145 W @ 6 Ohms, 1 kHz, 10% THD, 1 Channel Driven (JEITA)

  • Dynamic Power per Channel

    8 Ohms: 110 W
    6 Ohms: 130 W
    4 Ohms: 160 W
    2 Ohms: 180 W

  • Number of Channels

    5.1

  • DAC Type

    3x Burr-Brown 384 kHz/24-Bit DACs

  • Audio Processing

    Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio

  • Inputs

    4x HDMI
    1x Optical TOSLINK
    2x Digital Coaxial
    3x RCA Composite Video
    3x Stereo RCA Audio
    1 x 1/8" (3.5mm) Aux (Front)

  • Outputs

    1x HDMI
    1x RCA Composite Video
    1x Subwoofer Pre-Out
    1 x 1/4" (6.35mm) Headphone (Front)

  • Other Connectors

    1x USB Type-A (Front)
    1x FM Antenna
    1x AM Antenna
    1x 1/8" (3.5mm) Setup Mic In (Front)
    1x RJ45 Ethernet LAN
    2x Wi-Fi Antennas

  • Speaker Connectors

    5x Binding Post Pairs

  • HDCP Version

    2.2

  • Wi-Fi

    Dual-Band (2.4 / 5 GHz)

  • Bluetooth

    Yes (SBC/AAC, Compatible with SCMS-T)

  • Tuner Type

    AM/FM

  • Compatible File Formats

    MP3, WMA, MPEG-4 AAC (up to 48 kHz / 16-Bit), ALAC (up to 96 kHz / 24-Bit), FLAC (up to 192 kHz / 24-Bit), WAV, AIFF (up to 192 kHz / 32-Bit), DSD (up to 11.2 MHz)

  • Standby Power Consumption

    <=0.1 W

  • Dimensions (W x H x D)

    Without Antenna: 17.13 x 6.38 x 12.88" (434 x 161 x 327mm)
    With Antenna: 17.13 x 9.25 x 12.88" (434 x 234 x 327mm)

  • Weight

    17.9 lb (8.12kg)

Speakers

Jump to...
  • System Frequency Response

    28 Hz to 25 kHz

  • Impedance

    6 Ohms

  • Sensitivity

    Front, Surround: 83 dB, 2.83 V/m
    Center: 84 dB, 2.83V/m

  • Drivers

    1x 2.75" (69.85mm) Full-Range Cone per Speaker

  • Speaker Design

    Front, Surround: Bass Reflex
    Center: Acoustic Suspension

  • Nominal Input Power

    30 W per Channel

  • Max Input Power

    100 W per Channel

  • Dimensions (W x H x D)

    Front, Surround: 4.38 x 6.88 x 4.63" (111 x 174 x 117mm)
    Center: 10.88 x 4.38 x 4.63" (276 x 111 x 117mm)

  • Weight

    Front, Surround: 1.3 lb (589g) per Speaker
    Center: 1.61 lb (730g)

Subwoofer

Jump to...
  • Power Output

    RMS: 50 W (5 Ohms, 100 Hz, 10% THD)
    Dynamic: 100 W (5 Ohms)

  • Frequency Response

    28 to 200 Hz

  • Driver

    1x 8" (203.2mm) Cone

  • Speaker Design

    Ported

  • Input

    RCA

  • Power Consumption

    40 W

  • Dimensions (W x H x D)

    11.5 x 11.5 x 13.38" (292 x 292 x 339mm)

  • Weight

    18.7 lb (8.48kg)

  • UPC Code

    027108110028

About Yamaha YHT-5950U

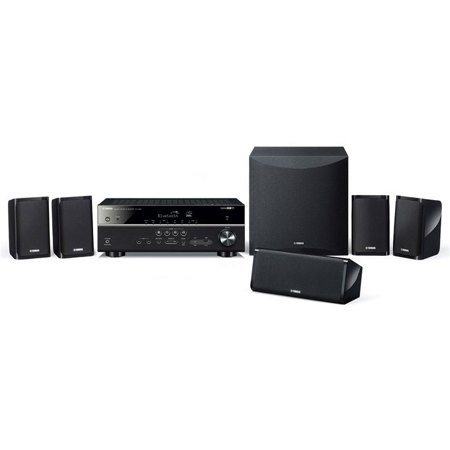

Step up to a Wi-Fi-enabled home-theater-in-a-box, with built-in streaming services and the ability to expand audio to other rooms. This system includes a MusicCast AV receiver, five speakers, a subwoofer and speaker wire in single package that brings together the best of cinematic sound with versatile streaming capabilities.

Features

Enhance Your TV Sound
Balanced Sound Experience

This 5.1-channel home theater system comes with an AV receiver and a speaker package (one center channel, two front channel and two surround speakers, plus a subwoofer), to deliver a clear, balanced sound for any listening experience. Enjoy your favourite movies, TV shows, music and video games, all with one, easy system.

Full 4K
4K Ultra HD HDMI Support

Providing complete compatibility with the latest HDMI standards, the AV receiver in this package delivers transmission of 4K video at 60 frames/second pass-through. It also supports HDR (high dynamic range) video including Dolby Vision and Hybrid Log-Gamma. This provides incredible contrast, smooth tone and rich, bright colors-giving you full, high-definition enjoyment with an exceptionally realistic and natural picture quality.

Full Resolution, Total Immersion
eARC (Enhanced Audio Return Channel)

Unlock the full potential of your 4K content. Enhanced Audio Return Channel (also known as eARC) is the next generation of ARC - available in the industry-leading AV receivers from Yamaha.

eARC delivers full-resolution, multi-channel audio formats such as Dolby TrueHD and DTS-HD through your existing HDMI connection, giving you the most realistic surround sound experience for immersing yourself in your favourite movies and moments.

Experiences Expanded
CINEMA DSP 3D

This unique Yamaha proprietary sound field creation technology was created by combining measured sound field data with digital signal processing. Yamaha collected sound field data from famous concert halls and music clubs around the world, utilizing its wealth of experience in the fields of concert hall design, public address and mixing. By digitizing that vast trove of information and incorporating it into dedicated LSI devices, it effectively reproduces the spaces of those concert halls on home equipment. Immerse yourself in the astounding realism of your movies and music with this sound technology.

Every Room is Different
Easy Sound Optimization with YPAO

YPAO (Yamaha Parametric room Acoustic Optimizer) analyses the room acoustics and your system, then precisely adjusts various audio parameters to provide the best sound for your room. By placing the supplied microphone at your listening position and switching YPAO on, the system is automatically tuned for optimum performance in your home.

Optimum Performance
High-quality Parts and Design

All Yamaha AV receivers feature fully discrete power amplifiers to minimize distortion and adopt independent pure power supplies for the analog and digital circuitry. They house ultra-high performance 384 kHz / 32-bit DACs, also with independent power supplies. These support in reproducing audio for high resolution sound sources without noise. Moreover, a new high sound quality IC is employed for volume control and large heat sinks suppress vibration. Down to every detail, this system's AV receiver is designed with full emphasis on the highest possible sound quality.

Worlds of Music
Streaming Services

Explore worlds of music with built-in music streaming services. Syncing your playlists and likes from your smart device and discovering new music becomes even easier with your receiver.

Note: Music streaming service availability varies by region.

Music at Your Command
AirPlay 2

Hey Siri. Play music in the kitchen and living room.

AirPlay 2 adds the ability to stream Apple Music and other streaming services to multiple MusicCast devices throughout your home. Easily control it from your iPhone or iPad, link it with a HomePod, or simply ask Siri for an assist.

Let's Talk
Amazon Alexa and Google Assistant on MusicCast

Touch or voice control - the choice is yours. Intuitively control a single MusicCast product or an entire whole-of-home system with ease using Alexa or Google Assistant and hear your home come alive.

Note: Availability of voice command control via Amazon Alexa and Google Assistant varies by region.

Bluetooth
In or Out

Bluetooth connectivity is also included to stream into your receiver or out from the receiver to another Bluetooth device such as a pair of headphones. The Bluetooth output has been improved, reducing lip sync delays from digital sources.

Multi-Room Audio
MusicCast

Add more MusicCast devices to the same network and start sharing audio throughout the home or working space. Consider the MusicCast 50 or MusicCast 20 wireless speakers as part of your MusicCast family to listen in any room. Download the MusicCast app and convert your home into a sonic environment.

Easy Operation
MusicCast App

The free MusicCast Controller app puts control of your wireless AV receiver in the palm of your hand. Use the MusicCast Controller app to operate the speaker, change settings, select your source and control music playback.

Second Room Sound
Zone B

This output capability allows the receiver to send 2-channel sound to a second zone, so the Main Zone now has 3-channel output. This means that users can enjoy stereo sound in a second room. The same source will play in both zones (cannot use two sources). Zone B always mirrors the audio output in the Main Zone.

A Touch of Class
Traditional Design Enhances Any Room

The included speakers feature the elegant beauty of a fine musical instrument. Their clean, stylish appearance matches their high sound quality while their compact design allows them to be placed in any convenient location within the listening room. Keyhole openings in the back allow these speakers to be neatly mounted on a wall.

All About That Bass
Advanced YST II Produces Powerful Low End

The Advanced YST II subwoofer combines negative-impedance and constant current principles to drive the speaker cone with tight control. It optimizes effective speaker impedance to maintain stable and accurate low range response and high sound pressure levels, for more natural and energetic bass reproduction.

Yamaha YHT-5950U Features

  • Clear, powerful 5.1-channel surround sound
  • 4K Ultra HD HDMI (4 in/1 out) with HDR10 and Dolby Vision
  • Easy setup with Yamaha YPAO room optimization
  • Wi-Fi, Bluetooth, AirPlay 2, Spotify Connect and MusicCast multi-room
  • Spotify, Pandora, SiriusXM Internet Radio, TIDAL, Deezer, Napster and more
  • MusicCast Surround capable: add MusicCast 20 speakers to create a 5.1-channel setup with wireless rear surrounds

Key Features

  • Clear, powerful 5.1-channel surround sound
  • 4K Ultra HD HDMI (4 in/1 out) with HDR10 and Dolby Vision
  • Easy setup with Yamaha YPAO room optimization
  • Wi-Fi, Bluetooth, AirPlay 2, Spotify Connect and MusicCast multi-room
  • Spotify, Pandora, SiriusXM Internet Radio, TIDAL, Deezer, Napster and more

What's in the box:

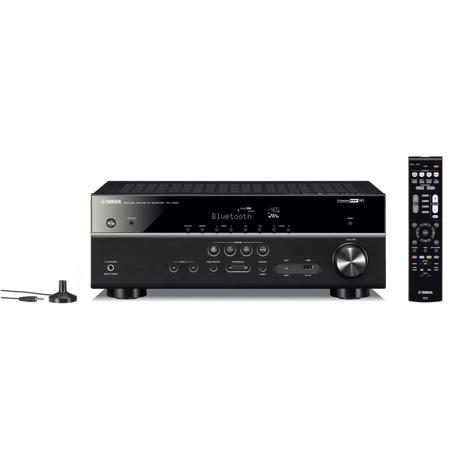

  • MusicCast AV Receiver
  • 5x Speakers
  • Subwoofer
  • Speaker Wire
  • Remote Control
  • Calibration Microphone
  • Yamaha 2 Year Limited Warranty
