Yamaha YSP-5600BL 7.1.2-Channel Dolby Atmos MusicCast Sound Bar

SKU: YAYSP5600BL

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Is it in stock or not ?
Raull F : Is this product avaible in stock now?
Shopper : Is this unit available/in stock?

Reviews about this item

Review Summary

2023-02-20T19:00:00

Rated 3 out of 5

Sound is good, setup is not.

I have the YSP 5600 as my sound system for cable tv, Apple TV, and net radio. The sound is really good, and with high quality movies I can hear the rain behind me, or the jets going over my head. I tried using it for distribution by hooking up DVD, cable, and Apple TV but could not get 4k HDR to pass through. I understand it is older but without firmware upgrade it only works for sound.

PeakRunner

2023-02-04T19:00:00

Rated 4 out of 5

Best 3D Soundbar, no doubt

Despite being a Yamaha user for 30+ years, I have tested a few high-performance soundbars like Bang & Olufsen, Bowers & Wilkins, and Sonos looking for an HDR+ compatible, but in the end, I just got a TV with Dolby Atmos and DTS. I plugged the HDMI output into the YSP, and it works awesome. I paired it with an SVS subwoofer, and boom!! the room.

Enrique

2022-07-17T20:00:00

Rated 4 out of 5

A relic but still formidable

I really love this digital sound projector. The sound field is large and immersive. I have paired it with a Klipsch 10" subwoofer and together they sound incredible. What I don't like is for the price tag it doesn't have HDR10 pass through or, more importantly to me, AirPlay2. I want to perfectly sync my YSP-5600 with my other AirPlay2 speakers to immerse myself in music. To fix this I have ordered a Belkin Soundform Audio Adapter which should turn the YSP-5600 into an AirPlay2 speaker. But really Yamaha should fix this in a firmware update or at least include the adapter. As a side note, my 2 MusicCast 20 speakers have been on back order for months now.

Douglas

2022-07-09T20:00:00

Rated 4 out of 5

A relic but Formidable

Great for home theater use for those like me who want a Dolby Atmos soundbar but don't yet have a Tv with eARC. For the price I am disappointed in a few things. HDMI 1 is the only HDMI out of 4 that support Atmos. There is no HDR10 capability for better picture. And the one that kills me most is that there is no AirPlay 2 for syncing with all my other speakers and no plans to add it in future firmware updates. This makes the super high price tag cringeworthy. And so for the Amazing Dolby Atmos surround from a single soundbar I must give up HDR10 and any hope of using it for music with other AirPlay 2 speakers. Yamaha please fix this in a future firmware update.

Douglas

2019-02-05T19:00:00

Rated 5 out of 5

The best soundbar

Musiccast is great

Edward

2019-01-16T19:00:00

Rated 4 out of 5

Quite good, just one missing element...

This is setup currently in my main bedroom, but once my new house is built, it will take up residence in the small living room, where in the current living room, all that equipment (Yamaha 3070) will be going into a dedicated theater room. Anyways, I love this thing, but it is not a 100% love affair. It's a shame that it was built with a HDMI 1.4 chip set, it just came out on the market too soon really and that is all that was around. I've even inquired with Yamaha if I could send it in and have the chip set changed out to a 2.0 version, but they said it is not possible nor do they have any plans to ever go that route. Very unfortunate as HDR and Dolby Vision content is unable to be passed through it to my lovely OLED. Thankfully the Oppo, like most UHD players has 2 HDMI outputs so audio goes to this device and video passed directly to the display. Despite that, the sound it produces (what it is really about anyways) paired with the NS-SW300 is very clean, accurate and amazing in its ability to produce surround channels. Both ATMOS and DTS:X tracks sound quite good, not on par with my current living room setup (to be expected, as I have a 7.4.4 setup), but the job is accomplished still. Surround effects are much better then the height effects, but one's room arrangement will definitely play a part in how the sound is output to trick you into hearing sounds behind you even though you know you have no speakers there. I could recommend this item, even with the cost of it, but definitely would not hold back that it is unable to pass HDR signals to those who do not do their homework before purchasing. That could be a complete no purchase for many these days as everything from physical media to even the dreaded streaming services offer HDR content. Still hoping Yamaha will release a newer version of this fantastic device, maybe a YSP-5700, with a HDMI 2.0b chipset at least, if not full 2.1 to then take advantage of eARC and its many benefits moving forward.

555SD

2017-04-28T20:00:00

Rated 5 out of 5

Great sounds, works well, subwoofer makes a big difference

Poor tech support; on hold 40 minutes x 3 until I found someone who could tell me that my switcher was unnecessary because the sound bar basically acts as a switcher. The subwoofer made a big difference, as mentioned by some, in terms of bass/big movies/sci fi. Great that the sound bar has 4 HDMI ports. Only thing is that sometimes the sound doesn't come on the first time (using universal remote). When I turn it on again, sound comes on.

rjgarnold

2017-04-05T20:00:00

Rated 5 out of 5

I would recommend this soundbar

Use at home. Musiccast is great.

Ed

2017-04-03T20:00:00

Rated 5 out of 5

i would buy again

performs as advertised and shown in showroom

bill

2017-01-21T19:00:00

Rated 5 out of 5

Great sound system

This is a great starter or replacement for your video sound enjoyment. A all in one system that is virtually wireless

billybob

2016-06-07T20:00:00

Rated 5 out of 5

Perfect for No Wire Surround Sound

I have hooked up the YSP-5600 as per recommendations. Using just 2 connections: ARC to ARC and Cable Box to HDMI1. Sound and picture are great. The problem is when powering off and on, there is no sound until I press the HDMI1 input on the remote, the speaker does show when it powers on that, the input is already HDMI1. I have set HDMI control to on so the TV effectively turns on the bar through the ARC. I spoke with Yamaha who said, it sounded like a defect. The replacement has the same behavior which I really never believed was a defect but a firmware problem. Wondering if anyone else has run into this problem?

Ron

2016-05-20T20:00:00

Rated 5 out of 5

1st month review

1 Month of use and I'm highly impressed. The sound control available with the remote is superb. Was not expecting this many features. Have found no dislikes yet. Replaced a denon 1911 7.1 setup.

tom

2016-05-01T20:00:00

Rated 5 out of 5

Amazing sound

I purchased this to replace a 5.1 speaker system so that we could make better use of our available space. I was a little skeptical at first feeling there is no way this would work or sound good. However, I have to say that I have been very surprised and happy with the purchase. You definitely need a subwoofer to take full advantage of the performance of the sound bar but the performance of the sound bar with my sub is just outstanding for both movies and music. Has to be heard to be believed.

tasdisr

2016-04-22T20:00:00

Rated 5 out of 5

Impressive

This sound bar, er, 'digital sound projector' as Yamaha calls it, is amazing. I was skeptical that a soundbar could achieve this kind of effect without any rear channels, but I've been proven wrong. I'm not sure what kind of voodoo is in there, but it's good voodoo. Sound overall can get really loud, but remains clear. Setup was a breeze. My programmable remote supported this soundbar and got all the settings right the first time. I was looking forward to having an airplay device, I'm just so done with Bluetooth, and this soundbar delivers. After initial setup, I could play music from my phone straight away. The soundbar stays in standby mode most of the time and you can wake it by sending music to it. No need to manually turn it on and off. Nice touch! I think it took me longer to get this thing out of the box than it did to actually set up. I was up and running in about 15 minutes. If you want full room, three dimensional sound, or even just 7.1, you can't really go wrong with this soundbar. One last note, it really is eight inches tall. It's big. I'm in an apartment where I can't mount things to the wall, so I had to raise my TV up about four inches to get it to clear the soundbar. Make sure you have the sightlines for such a tall soundbar, especially if you can't mount your TV to the wall.

mattyj2001

2016-01-13T19:00:00

Rated 5 out of 5

Amazing Sound, Amazing Picture, Amazing Product

The best sound bar or surround sound system you will own, without the wires. It is so user friendly and stylish i just cant say enough on the job Yamaha has done with this sound bar. I was skeptical at first but once i fired it up, there was nothing else to say but sit, stare and listen in amazement. The Dolby Atmos sounds incredible, mission impossible rogue nation bike scene, WOW!! you hear every detail. Mad max you hear every explosion car sound nook and cranny from all over the room. It is definitely worth the price. If you are on the fence make the leap, last sound system you'll own.

Ra

2016-01-13T19:00:00

Rated 5 out of 5

Amazing for a soundbar

I have been looking for a true surround sound system for quite a while, and this soundbar has solved the problems of running wires thru walls.

Joe

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Yamaha MusicCast Sound Bar Specifications

  • Output Channel

    7.1.2-channel

  • Output Power

    128 W total power: 88 W array speakers + 40 W woofers

  • Standby Power Consumption

    0.3 W (HDMI control OFF, Network Standby OFF), 2.0 W (HDMI Control OFF, Network Standby ON, Wi-Fi ON)

  • Beam Drivers

    Vertical sound beam speaker array: 1-1/8" x 6 beam drivers x 2 (L / R) Horizontal sound beam speaker array: 1-1/2" x 32 beam drivers Woofer: 4-1/2" x 2 woofers

  • Woofers

    4-1/2" x 2 woofers

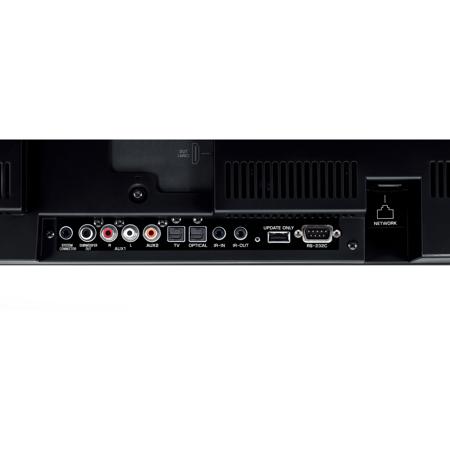

  • HDMI

    4" (Input 1: HDCP 2.2) / 1 out (HDC P2.2, ARC)

  • Digital Optical

    2"

  • Digital Coaxial

    1"

  • Analog Audio

    1"

  • Subwoofer Output

    Yes

  • 4K Pass-through

    Yes (60p)

  • x.v.Color

    Yes

  • 3D Pass-through

    Yes

  • ARC

    Yes

  • CEC

    Yes

  • Auto Lip-Sync

    Yes

  • Surround Technology

    Digital Sound Projector

  • CINEMA DSP Movie

    3 (Sci-Fi, Adventure, Spectacle)

  • CINEMA DSP Music

    3 (Music Video, Concert, Jazz Club)

  • CINEMA DSP Entertainment

    4 (Sports, Talk Show, Drama, Game)

  • Listening Mode

    3D SURROUND, SURROUND, STEREO, TARGET Playback mode, My Surround

  • Compressed Music Enhancer

    Yes

  • Dolby Atmos

    Yes

  • Dolby TrueHD

    Yes

  • Dolby Digital Plus

    Yes

  • Dolby Digital

    Yes

  • Dolby Digital EX

    Yes

  • DTS:X

    Yes (via a future firmware update)

  • DTS-HD Master Audio

    Yes

  • DTS-HD High Resolution

    Yes

  • DTS Digital Surround

    Yes

  • DTS-ES

    Yes

  • DTS 96/24

    Yes

  • LPCM

    Yes

  • Wireless Music Streaming

    Yes (with Bluetooth, Wi-Fi)

  • Wi-Fi

    Yes (IEEE802.11b/g/n, Radio Frequency Band 2.4GHz)

  • AirPlay

    Yes

  • Bluetooth Version/Profile

    (Version) Ver. 2.1 + EDR (Codec) Receiving: SBC, MPEG4-AAC / Transmitting: SBC

  • Ethernet

    Yes (100base-T, 10base-T)

  • IntelliBeam

    Yes

  • On-Screen Display

    Yes

  • On-Screen Display Languages

    English, German, French, Spanish, Italian, Dutch, Russian, Swedish, Turkish, Japanese

  • ECO Mode

    Yes

  • App Control

    Yes

  • Dimensions (WxHxD)

    With Stands: 43.3 x 8.4 x 3.6" (109.9 x 21.3 x 9.1cm)
    Without Stands: 43.3 x 8.5 x 4.8" (109.9 x 21.6 x 12.1cm)

  • Weight

    25.8 lb (11.7kg)

  • UPC Code

    027108953267

About Yamaha MusicCast Sound Bar

FEATURED REVIEWS

Amazing Sound, Amazing Picture, Amazing Product

By Ra

The best sound bar or surround sound system you will own, without the wires. It is so user friendly and stylish i just cant say enough on the job Yamaha has done with this sound bar. I was skeptical at first but once i fired it up, there was nothing else to say but sit, stare and listen in amazement. The Dolby Atmos sounds incredible, mission impossible rogue nation bike scene, WOW!! you hear every detail. Mad max you hear every explosion car sound nook and cranny from all over the room. It i...

View full Review

Impressive

By mattyj2001

This sound bar, er, 'digital sound projector' as Yamaha calls it, is amazing. I was skeptical that a soundbar could achieve this kind of effect without any rear channels, but I've been proven wrong. I'm not sure what kind of voodoo is in there, but it's good voodoo. Sound overall can get really loud, but remains clear. Setup was a breeze. My programmable remote supported this soundbar and got all the settings right the first time. I was looking forward to having an airplay device, I'm just...

View full Review

Yamaha MusicCast Sound Bar Features

  • World's-first sound bar with 7.1.2-channel multi-dimensional sound
  • HDMI inputs with 4K Ultra HD pass-through and HDCP 2.2
  • MusicCast wireless multiroom audio system
  • Access to your music library, Pandora, Spotify, Rhapsody and more
  • Versatile connectivity - Wi-Fi, Bluetooth, AirPlay and Spotify Connect
  • Subwoofer and wireless transmission kit sold separately
  • Clear Voice makes dialogue and narrations easy to hear
  • Music Enhancer improves the sound of compressed sources
  • Adaptive DRC enables volume and dynamic range adjustment
  • OSD supports overlay and multiple languages

Key Features

  • Innovative 7.1.2-Channel Dolby Atmos MusicCast Sound Bar with 46 speaker drivers
  • Features Yamaha's exclusive Digital Sound Projector technology for immersive audio
  • Part of the MusicCast wireless multiroom audio system for seamless connectivity
  • Supports 4K Ultra HD pass-through and HDCP 2.2 for high-definition video quality
  • Equipped with Dialogue Lift function for accurate onscreen dialogue reproduction
  • Offers versatile connectivity options including Wi-Fi, Bluetooth, AirPlay, and Spotify Connect

What's in the box:

  • Yamaha 128W 7.1.2-Channel MusicCast Sound Bar
  • Remote Control
  • 2 x AAA Batteries
  • 4.9' Optical Cable
  • 6.6' Power Cable
  • 19.7' IntelliBeam Microphone
  • Cardboard Microphone Stand
  • 2 x Stands with Screws
  • Yamaha Limited 2 Year Warranty
