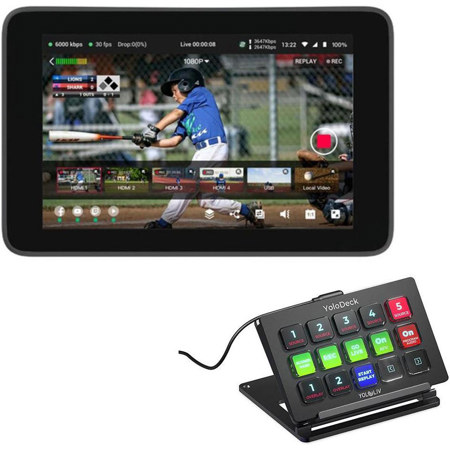

YoloLiv YoloBox Ultra 8" Portable All-In-One Live Streaming Encoder and Monitor with YoloDeck Control Panel

SKU: YBYOLOULTR MFR: YOLOULTRADECK
Earn VIP Reward Points

Key Features

  • Go live instantly with this portable live streaming encoder and monitor combo.
  • Achieve reliable, low latency video streams using Ethernet or 4G network options.
  • Control your YoloBox Ultra easily with the included YoloDeck control panel.
  • Broadcast in up to 4K resolution with format support for H.264 and H.265.
  • The 8" display ensures easy monitoring during live broadcast video productions.
  • Enhance your video quality with multiple audio input and output options.
See More Product Details
Special Order?Estimated to Ship: 08/21/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

YoloLiv YoloBox Ultra + YoloDeck Specifications

YoloBox Ultra

YoloBox Ultra

Jump to...
  • Input Power

    DC5V/9V/, 12V/15V

  • Power Consumption

    45W

  • Power Supply

    USB Type-C

  • USB Rated Output

    USB-A:5V/1A

  • Battery Capacity

    6800mAh

  • Monitor Screen Size

    8" (20.32cm) LCD Resolution: 1200 x 1920
    Brightness: 650nits
    Contrast ratio(1500:1)
    Viewing Angle (full viewing Angle), NTSC 80%

  • Local Video Inputs

    HDMI, USB-A

  • Video Over Ethernet

    RTMP/RTMPS/SRT

  • Video Input Connectors

    HDMI,USB-A,RJ-45,USB Type-C

  • Video Input Aspect Ratios

    16:9; 4:3; 1:1

  • Video Input Deinterlacing

    No

  • Live Broadcast Video input Resolution

    480p/720p/1080p (up to 60fps)/4k 30fps

  • Video Encoded Format

    H.264 H.265

  • Video processing Bitrate control

    CQ, VBR, CBR

  • Hardware-Accelerated Video Encoding

    Optional

  • Video Output Signal Types

    FLV-RTMP,HDMI,UVC

  • Video Output Connectors

    HDMI OUT, USB-C

  • Video Output Streaming protocols

    RTMP, RTMPS, MJPEG, SRT

  • Live Broadcast Video Output Resolution

    480p/720p/1080p(up to 60fps)/4k 30fps

  • Analog Audio Input Connectors

    Line In, Mic In, 3.5mm

  • Digital Audio Inputs

    USB, HDMI, RTMP (From internet), Local video (From SD card)

  • Digital Audio Input Connectors

    USB-A, HDMI, USB-C

  • Audio Input Mute

    Yes

  • Audio Input Format

    32KHZ/44.1KHZ/48KHZ 16bit

  • Audio Encoded Format

    (AAC) 44.1K/48KHZ 2Ch 16bit

  • Analog Audio Output

    3.5mm headphone jack

  • Digital Audio Outputs

    HDMI audio (Embedded), USB Audio (Embedded)

  • Record Formats

    MP4

  • Wi-Fi

    2.4G/ 5G (Support WiFi6)

  • 4G Network

    4G Network Countries & Frequency Band For Users: [Variant for North America US/Canada/Mexico)]
    B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71
    Users: (EU: Variant for EMEA/India/Korea/Taiwan/South Asia/Latin/America/Australia/New Zealand)
    Users: B1/B3/B7/(B8)

  • 4G Network

    4G Network Countries & Frequency Band For Users: [Variant for North America US/Canada/Mexico)]
    B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71
    Users: (EU: Variant for EMEA/India/Korea/Taiwan/South Asia/Latin/America/Australia/New Zealand)
    Users: B1/B3/B7/(B8)

  • WCDMA Network

    B1/B8

  • USB Communication Standard

    USB 2.0 and USB 3.0

  • Ethernet Data Rate

    10/100/1000M, half/full duplex with autodetect

  • SIM Card Size

    Nano-SIM Card

  • SD Card format

    FAT32 (Under 128G), NTFS, EX-FAT

  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Operating Humidity

    15% - 85%, No Condensation

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • Dimensions (H x W x L)

    1.06 x 5.51 x 8.62" (27.1 x 140 x 219mm)

  • Weight

    34.60 oz (981g)

YoloDeck

Jump to...
  • Compatibility

    YoloBox

  • Interface

    USB-C

  • Input Voltage

    5V

  • Working Power Consumption

    3W

  • Standby Power Consumption

    0.75W

  • Hardware Keyboard Numbers

    15

  • Screen Luminance

    800

  • Screen Contrast Ratio

    450

  • Keyboard Icon Resolution

    126 x 126

  • Startup Logo Resolution

    800 x 480

  • Dimensions (H x W x L)

    5.2 x 3.58 x 0.79" (132 x 91 x 20mm)

  • Weight

    6.63 oz (188g)

About YoloLiv YoloBox Ultra + YoloDeck

- YoloBox Ultra -

YoloBox & Instream In One, Angle it your way.
The combination of the YoloBox Pro and Instream becomes the YoloBox Ultra. Apart from the standard horizontal platforms, stream vertically to Instagram, TikTok without the necessity to purchase an Instream.

Mission-Critical Cellular Bonding. 3 SIM Data, 5 Connections.
Experience unparalleled global internet connectivity wherever you go with YoloLiv's Cellular Bonding. It can bond up to 5 network connections across 4G LTE (1x), Wi-Fi (1x), Ethernet (1x), and USB Modems (2x) - ensuring your stream never misses a beat event over the most challenging network conditions.

Versatile Input & Output, Next Level Production Flexibility
Add up to four HDMI inputs, three USB inputs, three simultaneous live IP sources (including SRT streams, RTMP streams and NDI HX sources), or media assets (including video clips, PDFs, and images), and simultaneously output via Wi-Fi, 4G LTE or Ethernet to up to six destinations such as Facebook, YouTube, or Twitch using RTMP or SRT.

Auto Switching for Solo Creators
One-man band podcasting? Easy! Our Video Follows Audio (VFA) feature automatically switches your camera angles based on who's speaking. It's ideal for solo podcasts, panel discussions, and live events. Easy to use with no extra devices needed, VFA provides a seamless, hands-free experience, allowing you to focus on your content without distractions.

Lower Bandwidth. Highest Quality.
YoloBox Ultra is equipped with High-Efficiency Video Coding (HEVC), also known as H.265. With HEVC, it achieves a remarkable reduction of over 50% in bandwidth requirements while preserving the highest video quality.

App/Web Control
Remote control your YoloBox for video switching, audio, graphics and scoreboard controls and more. You can even start and stop your live event remotely.

A Pro Tool, Made For Everyone
From simple tasks to most demanding professional client projects.


- YoloDeck -

You Are In Control (of Your YoloBox)
15 LCD keys poised to trigger unlimited actions. One-touch tactile operation lets you start/end live stream, start recording, switch video source, add graphics, adjust audio, launch instant replay, adjust scoreboard and so much more, while visual feedback confirms your every command.

Customization, Precision and Flexibility
When you tap a key you trigger an action. What that key does is your decision. Simply drag and drop actions from the list on the right onto the keys. Instantly switch video sources, introduce overlay, feature a comment, access audio mixing, and launch instant replay - all at the touch of a button. Bring total freedom to your YoloBox streaming and streamline your video production workflow.

Never Been Easier & Faster
Move through workflows with lightning speed and fine-tune adjustments at the touch of a button. All Controls you need for YoloBox are right at your fingertips, so you can deliver the best experience to your audience with confidence.

Your Entire Setup at Your Fingertips
You are not confined to just the 15 keys. Create unlimited pages of buttons tailored to any of your live streaming scenarios. Effortlessly navigate through pages on the fly, ensuring you always have the right actions at your fingertips for a seamless and dynamic live stream experience.

YoloDeck
Your go-to streaming controller companion for YoloBox. Add your favorite features and tools for instant, seamless control.

YoloLiv YoloBox Ultra + YoloDeck Features

  • YoloBox Ultra
  • 4 HDMI Inputs - Connect More, Experience More Amplify Connectivity, Minimize Limitations
  • ISO Recording - Preserve Every, Precious Moment
  • Bigger Battery - 75.48 Wh, stream up to 6 hours
  • Bigger & Brighter - See Beyond, Shine Through
  • Network Bonding - Deliver rock-solid reliable videos
  • Stronger CPU - Innovation taken to new depths & possibilities
  • 4K Streaming - Every Detail Comes Alive
  • YoloDeck
  • Hardware Controller for your YoloBox
  • 15 Large, Customizable LCD Keys
  • Control all Operations for YoloBox
  • USB-C Connector

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Key Features

  • Go live instantly with this portable live streaming encoder and monitor combo.
  • Achieve reliable, low latency video streams using Ethernet or 4G network options.
  • Control your YoloBox Ultra easily with the included YoloDeck control panel.
  • Broadcast in up to 4K resolution with format support for H.264 and H.265.
  • The 8" display ensures easy monitoring during live broadcast video productions.
  • Enhance your video quality with multiple audio input and output options.

What's in the box:

  • YoloBox Ultra 8" Portable All-In-One Live Streaming Encoder and Monitor
  • YoloDeck Control Panel
  • 2x USB Charging Cable
  • Hotshoe Mount
  • SIM Card Eject Pin
  • USB-C Cable
  • User Manual
  • Adjustable Stand
  • YoloLiv 1 Year Limited Warranty
