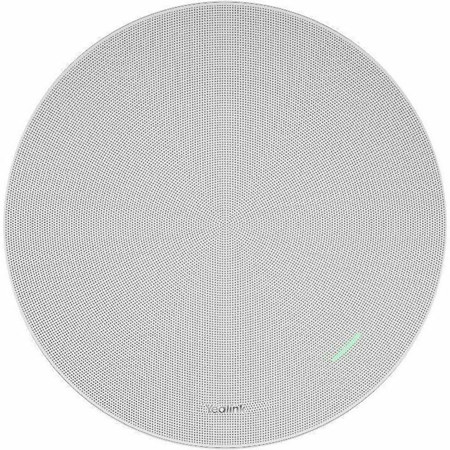

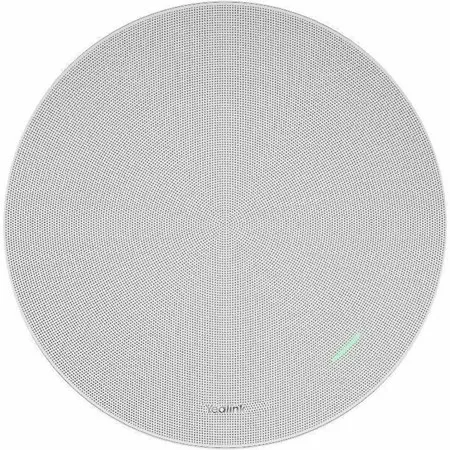

Yealink CS10 2-Way Coaxial Ceiling Conference Loudspeaker

SKU: YE1303094 MFR: 1303094
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with the Yealink CS10 ceiling loudspeaker, perfect for any conference room.
  • Enjoy a seamless setup with PoE+ connectivity, ensuring reliable performance and easy installation.
  • Its durable build quality and plenum rating make it ideal for various commercial environments.
  • The 2-way coaxial design delivers superior sound, enhancing communication in your meeting spaces.
  • Benefit from innovative features like a wide 120-degree coverage, optimizing sound distribution.
  • A great value, this speaker integrates effortlessly, providing high-performance audio for all users.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Yealink CS10 Specifications

  • Color

    Body: Black
    Mesh Cover: White

  • Material

    Mesh Cover: PC/ABS Welded SPCC
    Main Body Shell: PA (Polyamide) with 15% GF
    Bottom Shell: aluminum alloy
    Cover Plate: PC/ABS and SGCC

  • Frequency Response (-6dB)

    100-20kHz

  • Maximum SPL

    Continuous: 99dB @20W
    Sensitivity: 88dB @ 1W

  • LF Driver

    5.7" (145mm) woofer

  • HF Driver

    1.1" (28mm) tweeter

  • Nominal Impedance

    8 Ohm

  • Nominal Coverage Angle

    120 Degree

  • Rating

    Plenum Rated UL 2043 (suitable for air handling spaces)

  • Operating/Storage Temperature

    32 to 122 Degree F (0 to 50 Degree C)

  • Operating Humidity

    5%-90%

  • Rated Power

    24W (20W typical power)

  • Power Supply

    PoE+ (IEEE 802.3at class 4)

  • Interface

    1x RJ-45

  • Country of Origin

    China

  • Dimensions (Dia. x H)

    With Mesh Cover: 11.57 x 4.95" (294 x 125.8mm)
    Without Mesh Cover: 11.3 x 4.92" (287.2 x 125mm)

  • Weight

    Without Mesh Cover: 6.19 lbs (2.80kg)
    Mesh Cover: 7.30 oz (207g)

  • UPC Code

    841885120793

About Yealink CS10

Sound Supreme

Practical and Aesthetic Integration
The Loudspeaker features a low-profile (120mm depth) 2-way coaxial design and a removable magnetic suction mesh cover. The CS10 blends high-quality audio with an elegant, minimalist design, making it a perfect match for contemporary conference rooms.

Specially Designed for Conference Space
The CS10 boasts impressive acoustic parameters, which ensures an unparalleled level of sonic excellence, while its EQ calibration is specifically tailored to accentuate the utmost quality of human vocals. It seamlessly combines active speaker functionality with an integrated DAC and PoE technology, allowing for swift digital signal processing from the network for a hassle-free setup and minimal latency.

Video Conferencing Perfected
CS10 was tuned the sound profile for video conference first. It emphasized the mid-range of frequency response that improves sound performance in human voice.

Yealink CS10 Features

  • Low-profile 2-way coaxial design with magnetic mesh cover
  • EQ tuned for crystal-clear speech in conference rooms
  • Built-in DAC & PoE for easy setup and low-latency audio
  • Optimized sound profile for superior video conferencing

Key Features

  • Experience crystal-clear audio with the Yealink CS10 ceiling loudspeaker, perfect for any conference room.
  • Enjoy a seamless setup with PoE+ connectivity, ensuring reliable performance and easy installation.
  • Its durable build quality and plenum rating make it ideal for various commercial environments.
  • The 2-way coaxial design delivers superior sound, enhancing communication in your meeting spaces.
  • Benefit from innovative features like a wide 120-degree coverage, optimizing sound distribution.
  • A great value, this speaker integrates effortlessly, providing high-performance audio for all users.

What's in the box:

  • Yealink CS10 2-Way Coaxial Ceiling Conference Loudspeaker
  • Mesh Cover (White)
  • Assembly Fixing Bracket
  • Dust Cover
  • Bracing Bridge
  • 6x Dust Cover Screw
  • User Manual
  • Yealink 2 Year Limited Warranty
