Body: Black
Mesh Cover: White
Mesh Cover: PC/ABS Welded SPCC
Main Body Shell: PA (Polyamide) with 15% GF
Bottom Shell: aluminum alloy
Cover Plate: PC/ABS and SGCC
100-20kHz
Continuous: 99dB @20W
Sensitivity: 88dB @ 1W
5.7" (145mm) woofer
1.1" (28mm) tweeter
8 Ohm
120 Degree
Plenum Rated UL 2043 (suitable for air handling spaces)
32 to 122 Degree F (0 to 50 Degree C)
5%-90%
24W (20W typical power)
PoE+ (IEEE 802.3at class 4)
1x RJ-45
China
With Mesh Cover: 11.57 x 4.95" (294 x 125.8mm)
Without Mesh Cover: 11.3 x 4.92" (287.2 x 125mm)
Without Mesh Cover: 6.19 lbs (2.80kg)
Mesh Cover: 7.30 oz (207g)
841885123565
Sound Supreme

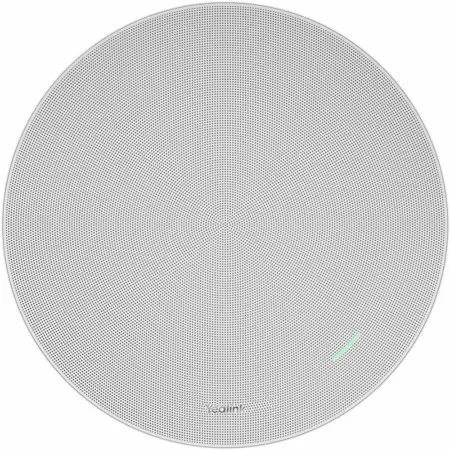

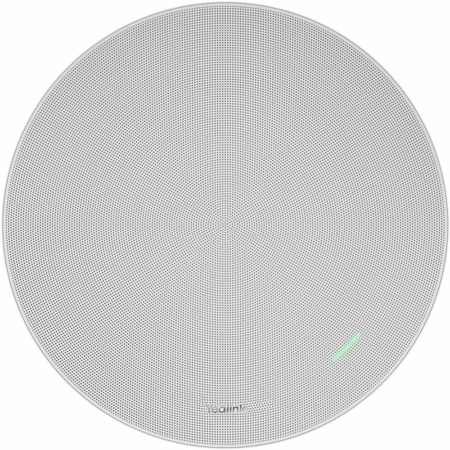

Featuring support for the Dante audio transmission protocol, the CS10-D seamlessly integrates with a wide range of standard Dante devices, delivering a versatile and convenient collaborative experience.
Practical and Aesthetic Integration
The Loudspeaker features a low-profile (120mm depth) 2-way coaxial design and a removable magnetic suction mesh cover. The CS10-D blends high-quality audio with an elegant, minimalist design, making it a perfect match for contemporary conference rooms.
Specially Designed for Conference Space
The CS10-D boasts impressive acoustic parameters, which ensures an unparalleled level of sonic excellence, while its EQ calibration is specifically tailored to accentuate the utmost quality of human vocals. It seamlessly combines active speaker functionality with an integrated DAC and PoE technology, allowing for swift digital signal processing from the network for a hassle-free setup and minimal latency.
Video Conferencing Perfected
CS10-D was tuned the sound profile for video conference first. It emphasized the mid-range of frequency response that improves sound performance in human voice.
