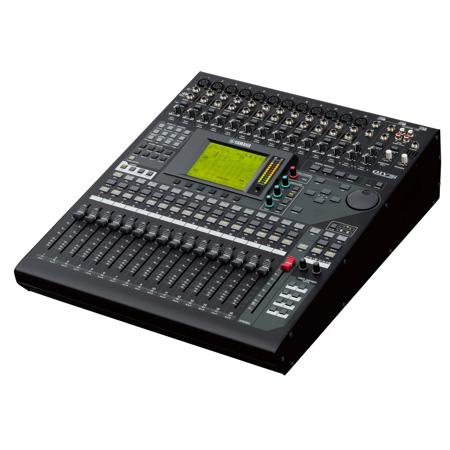

Yamaha 01V96i Multi-Track Digital Mixing Console with USB 2.0
See all Yamaha items

Yamaha 01V96i Multi-Track Digital Mixing Console with USB 2.0, 40 Input/20 Bus Mixing

SKU: YM01V96I

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Sammy S : Is this a used or new item Yamaha o1v96i? When will you be getting more of these?ANDREW R : I'm not sure I understand your question. The item in this product listing is new (not used or refurbished). Items we sell are NEW unless otherwise indicated.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Yamaha 01V96i Mixers & Amplifier Specifications

  • Channels

    Mixing: 32 mono, 4 stereo
    Group: 8
    Aux: 8
    Main: Stereo

  • Functions

    Input: Gate, attenuator, 4-band PEQ, 2 compressors, delay, pan
    Output: Attenuator, 4-band PEQ, compressor, delay

  • Number of Processors

    4 x SPC multi effects processors

  • AD/DA Conversion

    24-bit, 128x over sampling

  • Phantom Power

    +48VDC, On/off per 4 channels

  • Mic/Line Input

    Mic: 12
    Line: 2 x stereo, 2 x 2-track

  • Line Output

    Stereo, monitor, 4 x Omni

  • Digital I/O

    ADAT (8 in, 8 out), 2-track in/out

  • Expansion

    Mini-YGDAI (16 in, 16 out)

  • Control

    USB to host, MIDI word clock I/O

  • Processing

    32-bit (58-bit accumulator)

  • Sampling Frequencies

    Internal: 44.1, 48, 88.2, 96 kHz
    External: 44.1/88.2 kHz (-10%), 48/96 kHz (+6%)

  • Signal Delay

    < 1.6 ms (channel input to stereo out @ 48 kHz)
    < 0.8 ms (channel input to stereo out @ 96 kHz)

  • Total Harmonic Distortion

    < 0.05% (channel input to stereo out, 20 Hz to 20 kHz @ +14 dBu into 600 ohms, 48 kHz)
    < 0.01% (channel input to stereo out, 1kHz @ +24 dBu into 600 ohms, 48 kHz)
    < 0.05% (20 Hz to 40 kHz @ +14 dBu into 600 ohms, 96 kHz)
    < 0.01% (1kHz @ +24 dBu into 600 ohms, 96 kHz)

  • Frequency Response

    20 Hz - 20 kHz (+4 dBu into 600 ohms, 0.5-1.5 dB, 48 kHz)
    20 Hz - 40 kHz (+4 dBu into 600 ohms, 0.5-1.5 dB, 96 kHz)

  • Dynamic Range

    110 dB (typical, DA converter, stereo out)
    105 dB (typical, AD+DA, stereo out @ 48 kHz)
    105 dB (typical, AD+DA, stereo out @ 96 kHz)

  • EIN

    -128 dBu

  • Residual Output Noise

    -86 dBu (stereo out off)
    -86 dBu (90 dB S/N, stereo fader at nominal level and all channel input faders at minimum level)
    -64 dBu (68 dB S/N, stereo fader at nominal level and 1 channel input fader at nominal level)

  • Crosstalk

    -80 dB, adjacent channels, input to output

  • Faders

    17 x 100 mm motorized faders

  • Connectors 1

    17 x 100 mm motorized faders Connectors Inputs 1-12: 3-pin balanced XLR and 1/4" TRS phone
    Inputs 13-16: Balanced 1/4" TRS phone
    Inserts 1-12 In: Unbalanced 1/4" TRS phone
    2-Track In: Unbalanced RCA (L/R)
    Stereo Out: 3-pin balanced XLR
    Omni Out: Balanced 1/4" TRS phone
    Monitor Out: Balanced 1/4" TRS phone
    Inserts 1-12 Out: Unbalanced 1/4" TRS phone
    2-Track Out: Unbalanced RCA (L/R)
    Phones: 1/4" Stereo phone, unbalanced
    2-Track Digital In: RCA coaxial

  • Connectors 2

    ADAT In: Optical
    2-Track Digital Out: RCA coaxial
    ADAT Out: Optical

  • Pad

    0, 20 (Ch. input 1-12)

  • Input Gain

    Ch 1-12: -60, -16 dB
    Ch 13-16: -26, +4 dB

  • Input Impedance

    Ch 1-12: 3k ohms load, 50-600 ohms mic nominal, 600 ohms line nominal
    Ch 13-16: 10k ohms load, 600 ohms line nominal
    Insert 1-12 In: 10k ohms load, 600 ohms line nominal
    2-Track In: 10k ohms load, 600 ohms line nominal

  • Input Sensitivity

    Ch 1-12: -70, -26, -6 dBu
    Ch 13-16: -36, -6 dBu
    Insert 1-12 In: -12 dBu
    2-Track In: -10 dBV

  • Input Level

    Ch 1-12-: -60, -16, +4 dBu nominal, -40, +4, +24 dBu max
    Ch 13-16: -26, +4 dBu nominal, -6, +24 dBu max
    Insert 1-12 In: -2 dBu nominal, +18 dBu max
    2-Track In: -10 dBV nominal, +10 dBV max

  • Output Impedance

    Stereo: 75 ohms source, 600 ohms line nominal
    Omni: 150 ohms source, 10k ohms line nominal
    Monitor: 150 ohms source, 10k ohms line nominal
    Insert 1-12 Out: 600 ohms source, 10k ohms line nominal
    2-Track: 600 ohms source, 10k ohms line nominal
    Phones: 100 ohms source, 8-40 ohms line nominal

  • Output Level

    Stereo: +4 dBu nominal, +24 dBu max
    Omni: +4 dBu nominal, +24 dBu max
    Monitor: +4 dBu nominal, +24 dBu max
    Insert 1-12 Out: -2 dBu nominal, +18 dBu max
    2-Track: -10 dBV nominal, +10 dBV max
    Phones: 4-12 mW nominal, 25-75 mW max

  • Digital Audio Format

    2 Track I/O: IEC-60958, 24-bit, 0.5 Vpp/75 ohms
    ADAT I/O: ADAT, 24-bit

  • USB

    USB 2.0 type-B (24-bit, 0-3.3 V, audio and host)

  • MIDI

    5-pin DIN connectors for in, out and thru

  • Word Clock

    BNC in and out connectors (TTL/75 ohms)

  • Power Requirements

    100, 120, 220-240 VAC, 50/60 Hz

  • Power Consumption

    90 W

  • Dimensions (WxHxD)

    17.1x5.9x21.6" (436x148x548 mm)

  • Weight

    30.86 lbs (14 kg)

  • UPC Code

    086792963105

About Yamaha 01V96i Mixers & Amplifier

The Yamaha 01V96i Multi-Track Digital Mixing Console with USB 2.0 takes the popular 01V96 design and makes it even better, adding a USB 2.0 connection so you can use the mixer as easily on the road as you can in the studio. This compact mixer features studio-quality amps and internal processing that supports 24-bit/96kHz AD/DA conversion so that no detail is lost in the digital representation of your audio.

The mixer offers 40 input/20 bus mixing and has a wealth of inputs and outputs for use with a huge variety of sound devices and systems. In addition to supporting connection to your Mac or PC for use with a DAW, the USB 2.0 port also delivers 2-way MIDI communication so you can combine the precise control offered by the mixer with the capabilities of your DAW software. A Cascade Link is available that lets you connect 2 mixers together, giving you up to 80 channels of mixing capability with a single connection.

The 01V96i has a full suite of Yamaha's VCM effects, including a channel strip, master strip and vintage stomp, plus high-resolution REV-x reverbs so you can shape your sound in a variety of ways. The mixer has the 01V96i Editor software package, which gives you full control of the console via your computer. Steinberg Cubase AI software is also included that turns your Mac or PC into the ultimate machine for composing, recording, editing and mixing.

Yamaha 01V96i Mixers & Amplifier Features

  • Compact and Versatile: The compact design and versatile features allow you to use the mixer in the studio, in live situations and even with a laptop in a mobile environment
  • USB 2.0: The mixer's USB 2.0 connection provides 16 in/16 out live audio streaming at 96kHz and seamless integration with your DAW with a single cable. It also supports 2-way MIDI communication so you can use the console's physical controls to operate your DAW software
  • 24-bit/96kHz Performance: While some consoles reduce the number of tracks that are available when working in 96kHz mode, the 01V96i does not impose such restrictions. The mixer has 96kHz performance and 32-bit internal processing (58-bit accumulator) as the standard
  • 40 Input/20 Bus Mixing: The 01V96i has a main stereo bus, 8 individual mixing buses, 2 solo buses and 8 aux buses to give you signal routing options for just about any scenario
  • Analog and Digital Connectivity: The mixer has 16 analog inputs, 12 of which have studio-quality head amps. There are also 8 channels of optical ADAT input and coaxial 2 track inputs, plus 16 inputs via USB
  • Cascade Link: The Cascade Link port allows you to connect a pair of 01V96i units, giving you up to 80 channels of mixing capability with one simple connection, ideal for live sound reinforcement
  • Patching: The simple patching system allows you to quickly and easily assign all available inputs, outputs, effects, inserts and USB I/O to any of the mixer's channels or outputs. Centralized control lets you reconfigure the system without having to physically re-patch cables
  • Precision Faders: The professional 100mm motor faders provide intuitive physical control and also ensure that your previously-stored settings always look and sound exactly the same as they did when you saved them
  • Channel Controls: The "Selected Channel" controls give you control of the currently selecting input and output channels, offering analog-style buttons and knobs that provide direct access and control of essential functions
  • Layer Switching: The mixer's digital capabilities allow you to switch the 16 channel faders instantly to handle input channels 1-16, 17-32, Master (8 aux and 8 buses), or Remote via the console's layer switches
  • Channel Pairing: Faders can be paired "horizontally" or "vertically", allowing each physical channel fader to be used for stereo channel control. You can even control multiple stereo channels from a single layer with a list of linked parameters
  • Scene Memory: The mixer allows you to store and recall all of your various parameters in an instant. This lets you instantly switch "scenes" during a live performance, or recall your basic settings for different venues. This helps to reduce setup time and speed up your workflow
  • DAW Integration: The USB 2.0 audio and MIDI support gives you a familiar hands-on feeling when recording, mixing and editing your tracks. Control templates are provided for Avid ProTools, Steinberg Cubase and Nuendo. The general DAW mode supports a range of other DAWs
  • Editor Management Software: The 01V96i Editor is a total management software package that gives you full control of the console's parameters via your Mac or PC. When online, Editor provides monitoring and real-time display of selected channel status
  • Cubase AI Software: The included Steinberg Cubase AI software provides you with an intuitive platform for recording, editing and mixing from a Mac or Windows computer

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Analog and Digital Connectivity
  • Editor Management Software
  • 24-bit/96kHz Performance
  • 40 Input/20 Bus Mixing
  • Compact and Versatile
  • Cubase AI Software

What's in the box:

  • Yamaha 01V96i Multi-Track Digital Mixing Console
  • Power Cable
  • Software
  • Yamaha Warranty
