Yamaha DSR215 Specifications

  • Type of speaker

    Active

  • Frequency Response

    45Hz - 20kHz (-10dB)
    55Hz - 18kHz (-3dB)

  • Amplifier

    Class-D, 1300W Total (850W LF, 450W HF)

  • Maximum Sound Pressure Level (SPL)

    138dB

  • Input Sensitivity

    0dBu (Line, Max)
    +7dBu (Line, Center)
    -25dBu (Mic, Max)

  • Input Level

    +24dBu (Line)
    -11dBu (Mic)

  • Input Impedance

    12 kOhms (Line)
    8 kOhms (Mic)

  • Crossover

    1.7kHz, FIR-X Tuning (Linear Phase FIR Filter)

  • Low Frequency Driver

    2 x 15" Ferrite Cone Woofers with 2.5" Voice Coils

  • High Frequency Driver

    2" Titanium Diaphragm Compression Tweeter with Neodymium Magnet

  • Coverage

    90deg. Horizontal, 60deg. Vertical

  • Enclosure Material

    Grille: 16-Gauge Matte Black Powder Coated Perforated Steel

  • Connectors

    1 x XLR Input
    1 x 1/4" Input
    1 x XLR Thru Output
    1 x Locking AC Power Input

  • Controls

    1 x Level Control
    1 x Line/Mic Switch
    1 x HPF Switch
    1 x D-CONTOUR Switch
    1 x Front LED Disable Switch
    1 x Power Switch

  • Indicators

    1 x Red Peak LED
    1 x Red Limit LED
    1 x Red Protection LED
    1 x Green Power LED
    1 x White Front LED
    1 x Orange HPF LED
    1 x Orange D-CONTOUR LED

  • Filters

    High-Pass Filter, 120Hz (-6dB) 24dB/Oct
    D-CONTOUR (Dynamic CONTOUR) Boost

  • Protection

    Power Switch On/Off Mute
    DC-Fault
    Output Limit
    Clip Limit
    Overheating
    Overcurrent
    Over Voltage

  • Power

    PFC Switching Mode Power Supply

  • Consumption

    140W (1/8 Power)

  • Cooling

    Natural Convection

  • Handles

    2 x Metal Handles (L/R)

  • Dimensions (WxHxD)

    467x1158x520mm / 18.3x45.5x20.4"

  • Weight

    49.8kg (110lbs)

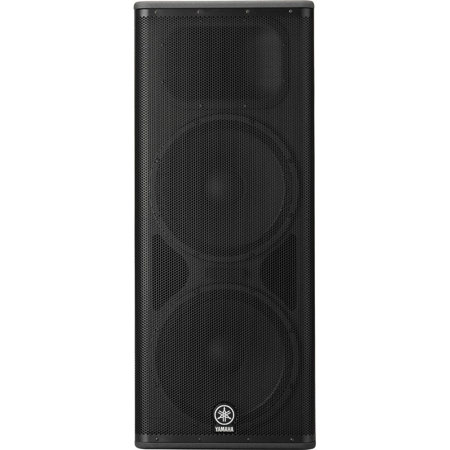

About Yamaha DSR215

The Yamaha DSR215 is a professional-quality 2-way active loudspeaker, ideal for sound reinforcement applications. The rugged cabinet houses a pair of 15" ferrite cone woofers and a 2" titanium compression tweeter with a neodymium magnet, which provides maximum efficiency and low weight. Exclusive LTBD (Long Throw, Broad Dispersion) constant directivity waveguides provide a wide coverage pattern to reach a broad audience. Internal Class-D amplifiers provide 1300W of output power for a strong, distortion-free performance. XLR and 1/4" inputs let you connect a variety of mic or line level sound sources, while an XLR output lets you daisy-chain additional speakers.

Onboard DSP includes FIR-x tuning for smooth crossover transitions and 24-bit AD/DA converters for maximum dynamic range. D-CONTOUR processing provides consistent clarity and high and low output levels. Extensive protection circuitry prevents damage from DC faults, clipping, overheating and over voltage. The speaker has a pair of integrated carrying handles for easy transport.

Yamaha DSR215 Features

  • Ideal for sound reinforcement applications in theaters, houses of worship and more
  • The rugged cabinet houses a pair of 15" ferrite cone woofers and a 2" titanium compression tweeter, which has a neodymium magnet for maximum efficiency and low weight. The drivers are custom-designed for premium quality
  • Exclusive LTBD (Long Throw, Broad Dispersion) constant directivity waveguides provide a wide coverage pattern of 90deg. x 60deg. to reach a broad audience
  • Internal Class-D amplifiers provide 1300W of output power for a strong, distortion-free performance
  • PFC switching mode power supply provides clean power with minimal HF noise, ensuring maximum power output and stable operation
  • XLR and 1/4" inputs let you connect a variety of mic or line level sound sources, while an XLR output lets you daisy-chain additional speakers
  • Onboard DSP includes FIR-X tuning for smooth crossover transitions and linear phase response, while 24-bit AD/DA converters provide maximum dynamic range
  • D-CONTOUR processing provides consistent clarity and high and low output levels. This processing can be turned on or off depending on your environment and type of sound desired
  • Extensive 3-way fail-safe protection circuitry protects the amplifier modules, power supply and drivers from DC faults, clipping, overheating and over voltage to ensure reliable operation under the most severe conditions
  • Integrated carrying handles provide easy transport

Key Features

  • Ideal for sound reinforcement applications in theaters and more
  • Houses a pair of 15 ferrite cone woofers
  • Has a 2 titanium compression tweeter
  • Internal Class-D amplifiers
  • PFC switching
  • XLR and 1/4 inputs and an XLR output

What's in the box:

  • Yamaha DSR215 Dual 15 " 1300W Active 2-Way Loudspeaker
  • Power Cord
  • Yamaha Warranty
