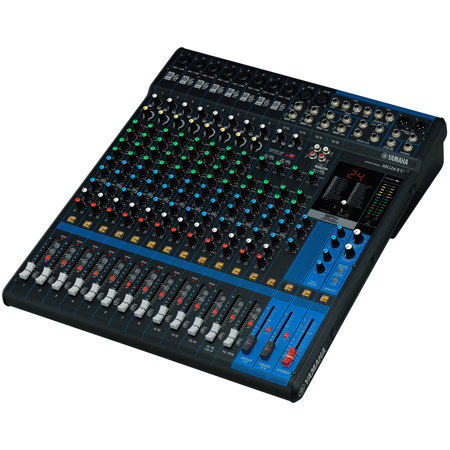

Yamaha MG16XU 16-Input Mixer with Built-In FX & 2-In/2-Out USB Interface, 20Hz-48kHz Frequency, 10x Mic Inputs, 16x Line Inputs, +48V Phantom Power

SKU: YMMG16XU MFR: MG16XU
Earn VIP Reward Points

Key Features

  • Achieve pristine audio with this mixer's studio-grade sound quality and low noise.
  • Effortlessly manage your sound with 16 input channels, perfect for bands and complex setups.
  • Shape your mix with precision using the intuitive EQ control for clear, balanced sound.
  • Seamlessly record and playback via the 2-in/2-out USB interface for easy integration.
  • Built-in SPX digital effects add depth; enhance vocals and instruments with ease.
  • Durable construction ensures this Yamaha mixer stands up to the rigors of live sound.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Yamaha MG16XU Specifications

  • Built-in Effects

    SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)

  • Phantom Power

    +48 V switchable, channels 1 - 12

  • Digital I/O

    USB: USB Audio Class 2.0 compliant
    Sampling Frequency: max 192 kHz
    Bit Depth: 24-bit

  • Input Channels

    8x mono [mic/line]
    2x mono/stereo [mic/line]
    2x stereo [line]

  • Output Channels

    2x stereo out
    1x monitor out
    1x headphone out
    4x aux out
    4x group out

  • Bus

    Stereo: 1
    AUX: 4
    GROUP: 4

  • Pad

    26 dB (mono)

  • HPF

    80 Hz, 12 dB/oct (mono/stereo: MIC only)

  • Compressor

    1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu
    Ratio: 1:1 to 4:1
    Output level: 0 dB to 7 dB
    Attack time: approx. 25 msec
    Release time: approx. 300 msec

  • Equalizer

    EQ high gain: +15 dB/-15 dB, frequency: 10 kHz shelving
    EQ mid gain: +15 dB/-15 dB, frequency: mono 250 Hz - 5 kHz peaking, stereo 2.5 kHz peaking
    EQ low gain: +15 dB/-15 dB, frequency: 100 Hz shelving

  • LED

    Peak LED turns on when post EQ signal reaches 3 dB below clipping

  • Total Harmonic Distortion

    0.03% at +14 dBu (20 Hz to 20 kHz), GAIN knob: Min, 0.005% at +24 dBu (1 kHz), GAIN knob: Min

  • Frequency Response

    +0.5 dB/-1.5 dB (20 Hz to 48 kHz), refer to the nominal output level at 1 kHz, GAIN knob: Min

  • Equivalent Input Noise

    -128 dBu (mono input channel, Rs: 150 Ohms, GAIN knob: max)

  • Residual Output Noise

    -102 dBu (STEREO OUT, STEREO master fader: min)

  • Crosstalk

    -78 dB

  • Power Requirement

    AC 100 - 240 V, 50 / 60 Hz

  • Power Consumption

    30W

  • Operating Temperature

    0 to +40deg.C

  • Dimensions (W x H x D)

    444 x 130 x 500mm (17.48 x 5.11 x 19.68")

  • Weight

    6.80kg (14.99lbs)

  • UPC Code

    086792991221

About Yamaha MG16XU

Let the Yamaha MG16XU 16-Input Mixer elevate your audio mixing experience with its professional-grade capabilities and robust feature set. This high-quality mixer is designed to handle a diverse array of sound sources, making it an indispensable tool for live performances, studio recordings, and multimedia applications such as lectures and presentations.

Crafted with versatility in mind, the MG16XU boasts eight mono mic/line combo input channels, offering the flexibility to connect both XLR and 1/4" inputs. Additionally, it includes two stereo line input channels that double as mono mic or line inputs, as well as two more stereo line inputs equipped with both 1/4" and RCA jacks, catering to a wide variety of audio setups.

The advanced USB connectivity of the MG16XU allows seamless integration with your computer, providing a 2-in/2-out interface with up to 24-bit / 192kHz quality. This feature is perfect for capturing crystal-clear recordings of live performances, demos, and more, directly to your digital workstation.

Each channel from 1 to 12 is outfitted with Yamaha's acclaimed D-PRE mic preamps, which utilize an inverted Darlington circuit to deliver a fat, rich, and smooth tone. The preamps are complemented by a 3-band EQ, pan control, and a high-pass filter, giving you complete control over your sound. The switchable +48V phantom power ensures compatibility with both dynamic and condenser microphones.

For handling high-output sources, channels 1-8 are equipped with 26dB attenuation switches, allowing you to manage the sound from guitar amplifiers, drums, and other loud instruments without distortion. The mixer's outputs include balanced XLR and TRS stereo outs for connecting to PA systems or monitor speakers, along with a 1/4" headphone output with level control for private monitoring and additional TRS 1/4" stereo monitor outs for external amplification.

The MG16XU stands out with its dedicated FX bus send level on each channel and a selection of 24 built-in effects presets, ranging from reverbs and delays to modulation effects like phaser, flanger, chorus, and tremolo, as well as auto-wah and distortion. These effects are easily managed with the dedicated FX return level control, allowing you to add depth and texture to your mix.

Durable and designed for the road, this mixer is built to withstand the rigors of touring and frequent use. Whether you're a professional sound engineer or an audio enthusiast, the Yamaha MG16XU 16-Input Mixer with Built-In FX & 2-In/2-Out USB Interface is engineered to deliver exceptional sound quality and reliability for all your mixing needs.

Yamaha MG16XU Features

  • Professional 16-input mixer with versatile connectivity for live performances and studio recording
  • Integrated 2-in/2-out USB audio interface with up to 24-bit / 192kHz quality for seamless digital recording
  • Equipped with 10x mic inputs featuring Yamaha's D-PRE mic preamps for high-quality audio capture
  • Comprehensive control with 3-band EQ, pan, high-pass filter, and 26dB pad switch on channels 1-8
  • Built-in FX processor with 24 effects presets including reverb, delay, and modulation for enhanced soundscaping
  • Durable design with +48V phantom power, suitable for both dynamic and condenser microphones

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve pristine audio with this mixer's studio-grade sound quality and low noise.
  • Effortlessly manage your sound with 16 input channels, perfect for bands and complex setups.
  • Shape your mix with precision using the intuitive EQ control for clear, balanced sound.
  • Seamlessly record and playback via the 2-in/2-out USB interface for easy integration.
  • Built-in SPX digital effects add depth; enhance vocals and instruments with ease.
  • Durable construction ensures this Yamaha mixer stands up to the rigors of live sound.

What's in the box:

  • Yamaha MG16XU 16-Input Mixer with Built-In FX & 2-In/2-Out USB Interface
  • AC Power Cord
  • Rack-Mount Kit
  • Owner's Manual
  • AI Download Information
  • Yamaha 1 Year Limited Warranty
