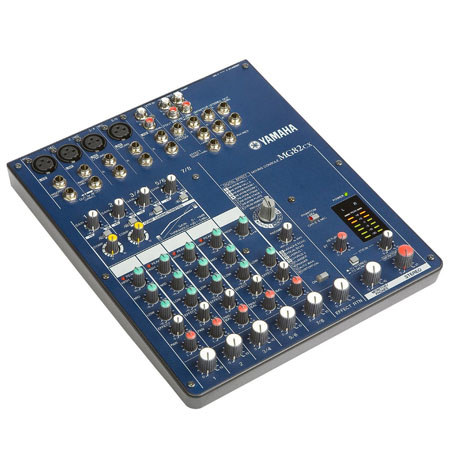

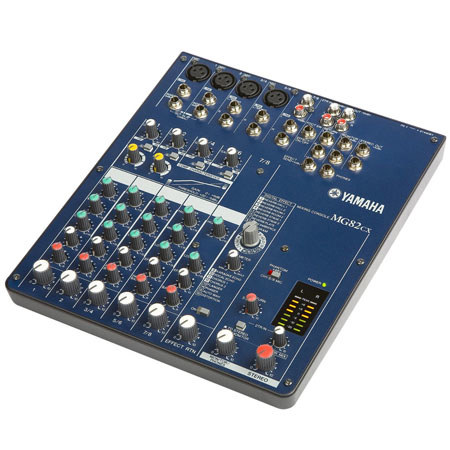

Yamaha MG82CX 8-Channel Stereo Mixer with 2 Mono Inputs and 3 Stereo Inputs, DSP Effects Engine and Compression

The Yamaha MG82Cx 8-Channel Stereo Mixer with 2 Mono Inputs and 3 Stereo Inputs is an 8 channel audio mixer designed to provide the mixing capabilities necessary for mixing a few stereo and mono audio sources. The MG82 Cx features a total of 8 line level inputs via 1/4" TRS phone connections and 4 XLR male microphone inputs. An internal effects processor provides up to 16 user selectable presets including reverb, delay, chorus, flanger, distortion and more. In addition, a built-in compressor is featured on all mono inputs for dynamics control over instruments and vocals.

Line level inputs are mono on channels 1 and 2, channels 3/4, 5/6 and 7/8 feature stereo-paired 1/4" TRS phone inputs for stereo sources such as keyboards and play-back devices. XLR microphone inputs are located on the first 4 inputs, which provide +48V phantom power to condenser microphones. Inserts on channels 1 and 2 provide routing to and from external signal processors. The compact, lightweight design allows easy transport making the MG82 Cx suitable for sound reinforcement as well as project recording applications.
