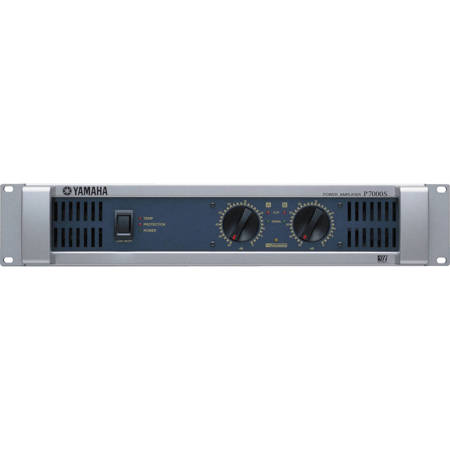

Yamaha P7000S Two-Channel Power Amplifier, 700W into 8 Ohm Stereo
See all Yamaha items

Yamaha P7000S Two-Channel Power Amplifier, 700W into 8 Ohm Stereo, 30 k Ohms Input Impedance, 20Hz - 50kHz Frequency Response

SKU: YMP7000S

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Yamaha P7000S Specifications

  • Output Power

    Rating at 1kHz, THD=1%
    750W at 8 Ohms Stereo (per channel)
    1100W at 4 Ohms Stereo (per channel)
    2000W at 8 Ohms Bridged-Mono
    Rating at 20Hz - 20kHz, THD=0.1%
    700W at 8 Ohms Stereo (per channel)
    950W at 4 Ohms Stereo (per channel)
    1900W at 8 Ohms Bridged-Mono
    Rating at 1kHz, 20ms Nonclip
    1600W at 2 Ohms Stereo (per channel)
    3200W at 4 Ohms Bridged-Mono

  • Damping Factor

    Greater than 350 (8 ohms, 1kHz)

  • Input Sensitivity

    +8dB (8 ohms, Max Attenuation)

  • Input Impedance

    30 k ohms (Balanced)
    15 k ohms (Unbalanced)

  • Gain

    32.1dB

  • Frequency Response

    20Hz - 50kHz (0dB, +0.5dB, -1dB at 1 Watt, 8 ohms)

  • Signal-to-Noise Ratio

    104dB

  • Total Harmonic Distortion (THD)

    Less than 0.1%, 20Hz - 20kHz, Half Power

  • Input Connections

    2 x 3-pin XLR Female (Balanced)
    2 x 1/4" (6.3mm) TRS Phone (Balanced)

  • Output Connectors

    2 x Speakon
    2 x 5-way Binding Post
    2 x 1/4" (6.3mm) Phone

  • Controls Front Panel

    1 x Push On/Off Power Switch
    2 x 31-Position Attenuator Knobs

  • Controls (Rear)

    1 x Stereo/Bridge/Parallel Mode Switch
    2 x Subwoofer/Low Cut/Off Filter Switches
    2 x 25Hz - 150Hz Frequency Control Switches
    1 x Yamaha Speaker Processing On/Off Switch

  • Indicators

    1 x Green Power On LED
    1 x Red Protection LED
    1 x Red Heatsink Temp Overheat LED
    1 x Yellow YS Processor LED
    2 x Green Signal LEDs
    2 x Red Clip LEDs

  • Cooling

    Dual Variable-Speed Fans

  • Power Consumption

    Idle: 35W
    1/8 (4 ohms): 700W
    Maximum (4 ohms): 4000W

  • Power Requirements

    120V 60Hz

  • Dimensions

    19x3.5x18" (483x89x457 mm)

  • Weight

    26.5 lbs (12 kg)

About Yamaha P7000S

It's time to experience the powerful and high-quality sound with the Yamaha P7000S Two-Channel Power Amplifier. This advanced audio device, capable of delivering a robust 700W into 8 Ohm Stereo, is an ideal choice for sound reinforcement applications. Its rack-mountable design and moderate weight make it a convenient addition to any audio setup.

The P7000S is specifically optimized for use with Yamaha's Club Series speakers, thanks to its unique YS engagement switch. This proprietary feature adjusts the amplifier's output to match the speakers' capabilities, ensuring optimal performance. However, the versatility of the P7000S doesn't stop there. It supports speakers from all other manufacturers, and the YS circuitry can be easily defeated if needed.

One of the standout features of the P7000S is the innovative EEEngine energy conservation design. This advanced technology delivers the same full output as conventional amplifier designs but with only half the power consumption. This energy-efficient attribute, coupled with a full suite of thermal and limiting overload protection, promotes cooler, quieter operation and improved frequency response with minimized distortion.

The P7000S offers a variety of connection options with its XLR and 1/4" balanced inputs and Neutrik Speakon, binding post, and 1/4" speaker outputs. This ensures seamless integration with almost any sound system. The rear panel provides several filtering options, the YS activation switch, and a mode switch, supporting stereo, bridged, and parallel operation.

The front panel of the P7000S is equipped with a comprehensive group of bright, color-coded LED activity indicators, and the channel attenuator knobs are recessed and protectively covered for added convenience. Experience the reliable and durable performance of the Yamaha P7000S Two-Channel Power Amplifier, a testament to Yamaha's commitment to delivering advanced audio solutions.

Yamaha P7000S Features

  • Rack-mountable stereo power amplifier with 700 watts per channel at 8 ohms
  • EEEngine (Energy Efficient Engine) technology for high power output with half the energy consumption of conventional amplifier designs
  • Proprietary YS processing with dedicated on/off switch optimizes amplifier output for use with Yamaha Club Series speakers
  • Amplifier overload limiting protection circuitry includes power on/off muting, DC detection, thermal protection and current limiting
  • Variable speed fan cooling
  • Sweepable rear panel low end frequency control knobs, low cut/subwoofer filter switches
  • Rear panel stereo/bridge/parallel operation mode switch
  • Recessed front panel attenuator controls with protective cover
  • Front panel LED indicators for power, protection, temperature, YS processing, signal and clip
  • Vented front and rear panels

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Powerful Yamaha P7000S Two-Channel Power Amplifier with 700W output into 8 Ohm Stereo
  • Advanced YS engagement switch for optimized performance with Yamaha's Club Series speakers
  • Innovative EEEngine technology for energy-efficient operation and minimized distortion
  • Supports stereo, bridged, and parallel operation for diverse audio setups
