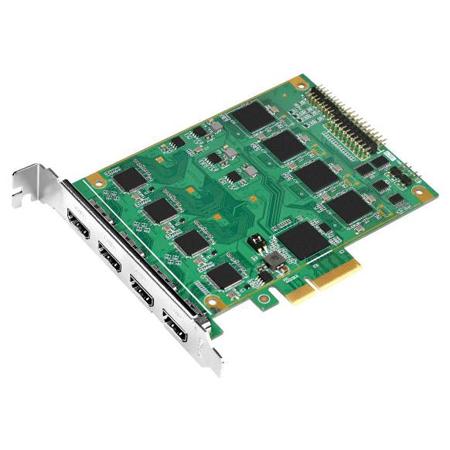

Yuan SC550N4 4-Channel HDMI PCIe x4 Input Capture Card

Yuan SC550N4 4-Channel HDMI PCIe x4 Input Capture Card

SKU: YU550N4HDMI
(1)

This item is no longer available.

Recommended Alternatives

Yuan vMix Live: Picture 1 regular
YUAN vMix Software Basic HD & PD570 PRO HDMI Input to USB 3.0 Capture Box
$295.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2020-06-12T12:00:43

Rated 5 out of 5

Yuan's capture card offerings are still great.

Despite some initial hiccups, the Yuan SC550N4 has been a great capture card. The video quality is great, and the Yuan works well with most conferencing programs (Discord, Skype, and others.) It also works perfectly with OBS. I have not encountered any issues with the card, and it works great.

JEFFREY F.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Yuan SC550 Specifications

  • Maximum Frame Rate

    1920 x1200p@60/50fps in - 1920 x1200p@30/25fps out
    1920 x1080p@60/50fps in - 1920 x1080p@60/50fps out

  • Recording Mode

    Software Compression, Real-Time Mode

  • Interface

    PCIe x4 (Gen2)

  • Video Input

    4 xHDMI

  • Display Video Format

    YV12, NV12, YUY2, RGB24, RGB32

  • Video RAW Data Resolution

    1920 x1200p@30/25/24fps
    1920 x1080p@60/50fps
    1920 x1080p@30/25/24fps
    1920 x1080i@60/50fps
    1280 x720p@60/50fps
    1280 x1024p@60fps
    1280 x960p@60fps
    1024 x768p@60fps
    800 x600p@60fps
    640 x480p@60fps
    720 x480p@60fps
    720 x576p@50fps
    720 x480i@60fps
    720 x576i@50fps

  • Recording Video Format

    H.264 (Software Compression)

  • Recording Video Resolution

    1920 x1200p@30/25/24fps
    1920 x1080p@60/50fps
    1920 x1080p@30/25/24fps
    1920 x1080i@60/50fps
    1280 x720p@60/50fps
    1280 x1024p@60fps
    1280 x960p@60fps
    1024 x768p@60fps
    800 x600p@60fps
    640 x480p@60fps
    720 x480p@60fps
    720 x576p@50fps
    720 x480i@60fps
    720 x576i@50fps

  • Audio Input

    4 xHDMI Embedded Audio

  • Audio Format

    Stereo / 16-bit / 32000 - 48000Hz

  • I/O

    16

  • WatchDog

    V

  • Multiple Cards

    Infinite

  • SDK

    Support API : DirectShow, V4L2, FFmpeg, Gstreamer

  • Support Language

    C++, C#, .NET, Visual Basic, Qt, Delphi

  • OS Support

    Windows 7 / Windows 8 / Windows 8.1 / Windows 10
    Linux 2.6.14 or Higher
    (32-bit and 64-bit)

  • Dimensions

    5.1 x 3.9" (130.49 x101.02mm)

  • UPC Code

    653559999426

About Yuan SC550

FEATURED REVIEWS

Yuan's capture card offerings are still great.

By JEFFREY F.

Despite some initial hiccups, the Yuan SC550N4 has been a great capture card. The video quality is great, and the Yuan works well with most conferencing programs (Discord, Skype, and others.) It also works perfectly with OBS. I have not encountered any issues with the card, and it works great.

• Designed for: vMix - Wirecast, O.B.S and more.
• HD, H.264 Software Compression, 4 x HDMI Channels per Card
• Review/Record resolution up to 1920x1080p
• 60/50fps per channel
• Support dual stream recording
• Designed for vMix application software
• Compatible with Intel X99 Chipset and other
• Easy Installation
