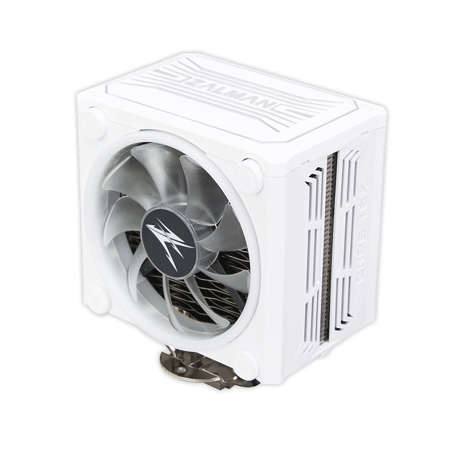

Zalman Cases CNPS16X Real RGB 120mm LED CPU Cooler with 4D Patented Corrugated Fin Design, White

SKU: ZACNPS16XWHT

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Zalman Cases CNPS16X Specifications

  • Color

    White

  • Materials

    Pure Copper, Pure Aluminum, ABS

  • Heat Dissipation Area

    802.43 sq. in (5,177sq. cm)

  • Heat Pipe

    4

  • TDP

    180W

  • Fan Bearing Type

    EBR Bearing

  • Fan Speed

    800-1,500 RPM +/-10%

  • Max. Fan Noise Level

    27.0dB(A) +/-10%

  • Max. Fan Air Flow

    49 CFM

  • Max. Fan Air Pressure

    1.21mm H2O

  • Fan Life Span

    50,000 hours

  • Fan Connector Type

    Fan : 4-Pin PWM
    Fan LED : 3-Pin Addressable
    Top LED Cover : 3-Pin Addressable

  • Fan Control Method

    PWM Control

  • Rated Voltage

    Fan : 12V
    Fan LED : 5V
    Top LED Cover : 5V

  • Rated Current

    Fan : 0.2A
    Fan LED : 0.65A
    Top LED Cover : 0.7A

  • Power Consumption

    Fan : 2.4W
    Fan LED : 3.25W
    Top LED Cover : 3.5W

  • Socket Compatibility

    Intel : LGA 1700 / 2066 / 2011-V3 / 2011 / 1200 / 115X CPUs
    AMD : AM4/AM3+/AM3 CPUs

  • Dimensions (L x W x H)

    5.51 x 3.93 x 6.49" (140 x 100 x 165mm)
    Fan: 4.72 x 4.72 x 1.02" (120 x 120 x 26mm)

  • Weight

    31.04 oz (880g)

  • UPC Code

    823884209662

About Zalman Cases CNPS16X

The CNPS16X Real RGB 120mm LED CPU Cooler, in a sleek white finish, is a high-tech, modern, and efficient cooling solution designed by the reputable brand, Zalman Cases. This stylish CPU cooler is fully compatible with the latest high-performance processors from Intel and AMD Ryzen, ensuring seamless power management without any compatibility issues.

The cooler features ZALMAN's innovative Direct Touch Heatpipe (DTH) technology, which maximizes cooling performance by providing an optimal dissipation area and minimizing heat resistance. This technology ensures maximum heat transfer, keeping your CPU cool even under heavy workloads.

One of the standout features of this CPU cooler is its unique 4D Stereoscopic Corrugated Cooling Fin design, a patented technology by ZALMAN. This design increases the heat dissipation area by 15%, improving cooling performance. The 170 individual airflow passages formed by this design enhance the straightness of the airflow, ensuring efficient cooling.

The CNPS16X also incorporates ZALMAN's patented Vibration Noise Dampener technology, designed in three stages: housing fin absorption, fin dissipation, and silicon cap absorption. These stages work together to minimize vibration and noise transmitted to the case, ensuring a quiet and smooth operation.

The cooler is equipped with a dual 120mm Ring Fan, which maximizes airflow and supports a fancy RGB effect. Zalman's original LED design provides a wider and brighter LED effect in all directions, enhancing the aesthetic appeal of your setup. The cooler is also compatible with Razer Chroma RGB, allowing for further customization.

The CNPS16X is the first ring fan to use "Ultrasonic Welding" technology, which minimizes the thickness of the housing while allowing for a larger impeller fan size. This technology, combined with the advanced EBR bearing that prevents dust from entering the bearing housing, ensures stable, near-silent operations and a longer lifespan for the cooler.

The cooler also comes with a high thermal conductivity ZM-STC8, which fills the fine space between the CPU and the cooler, boosting the cooling effect and providing excellent cooling performance. The PWM control feature automatically adjusts the fan speed according to the user's environmental noise level, ensuring optimal performance and a superior user experience.

Zalman Cases CNPS16X Features

  • Optimized for Powerful Cooling Performance
  • Addressable RGB LED Sync
  • DTH(Direct Touch Heatpipe) Technology
  • Dual Cooling Fan
  • Designed for Convenient and stable installation
  • Ultrasonic Welding Technology

Key Features

  • Experience superior CPU cooling with the Zalman CNPS16X, keeping your system running smoothly.
  • Enjoy vibrant, customizable RGB lighting with this cooler, adding a stylish touch to your PC build.
  • This CPU cooler supports a wide range of Intel and AMD sockets for broad compatibility.
  • Benefit from the whisper-quiet operation of this cooler, with a max noise level of only 27dB(A).
  • The 4D corrugated fin design maximizes heat dissipation for optimal thermal performance.
  • Rely on the long-lasting EBR bearing fan, ensuring 50,000 hours of reliable cooling.

What's in the box:

  • Heatsink
  • Fan
  • Thermal Grease
  • PWM Fan 'Y' Cable
  • Gigabyte Cable
  • LED Cable
  • Mounting Hardware
  • Zalman Cases 5 Year Limited Warranty
